HFW10R Series

Catalog

CONN FFC FPC BOTTOM 10POS 1MM RA

Part	Mating Cycles	Housing Color	Contact Material	Material Flammability Rating	FFC, FCB Thickness	Voltage Rating	Flat Flex Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish	Housing Material	Connector/Contact Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Cable End Type	Number of Positions	Current Rating (Amps)	Features

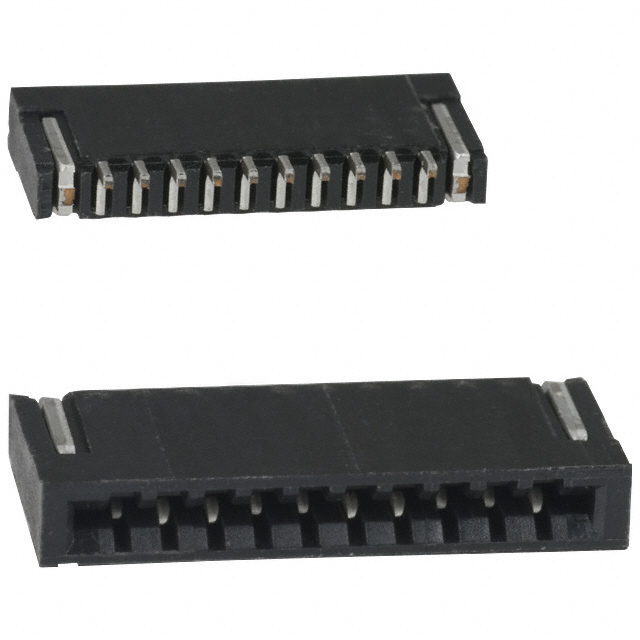

Amphenol ICC (FCI) HFW10R-1STE1LF	30	Black	Phosphor Bronze	UL94 V-0	0.3 mm	100 V	FFC FPC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin	Glass Filled Nylon 6T Polyamide (PA6T)	Contacts Bottom	Right Angle Surface Mount	1.9 mm	0.075 in	Straight or Tapered	10
Amphenol ICC (FCI) HFW10R-2STE1MTLF	30	Black	Phosphor Bronze	UL94 V-0	0.3 mm	50 V	FFC FPC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin	Glass Filled Thermoplastic	Contacts Top	Right Angle Surface Mount	3.1 mm	0.122 in	Straight or Tapered	10	0.5 A	Solder Retention
Amphenol ICC (FCI) HFW10R-5STE1H1LF	30	Black	Phosphor Bronze	UL94 V-0	0.3 mm	100 V	CIC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Bottom	Right Angle Surface Mount	1.9 mm	0.075 in	Tapered	10		Solder Retention

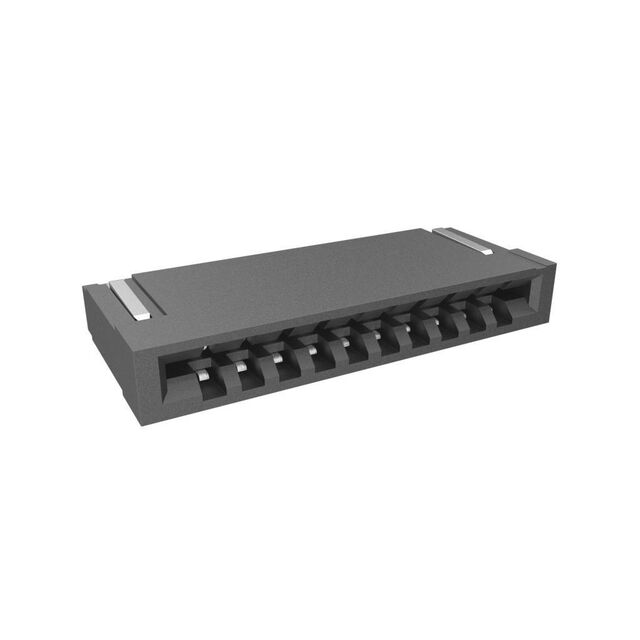

Amphenol ICC (FCI) HFW10R-2STE1H1LF	30	Black	Phosphor Bronze	UL94 V-0	0.3 mm	100 V	FFC FPC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Top	Right Angle Surface Mount	1.9 mm	0.075 in	Straight or Tapered	10
Amphenol ICC (FCI) HFW10R-5STE1HLF						100 V	CIC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin		Contacts Bottom	Right Angle Surface Mount	1.9 mm	0.075 in		10
Amphenol ICC (FCI) HFW10R-1STE1H1LF	30	Black	Phosphor Bronze	UL94 V-0	0.3 mm	100 V	FFC FPC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Bottom	Right Angle Surface Mount	1.9 mm	0.075 in	Straight or Tapered	10
Amphenol ICC (FCI) HFW10R-2STZE1LF	30	Black	Phosphor Bronze	UL94 V-0	0.3 mm	100 V	FFC FPC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin	Glass Filled Nylon 6T Polyamide (PA6T)	Contacts Top	Right Angle Surface Mount	1.9 mm	0.075 in	Straight or Tapered	10

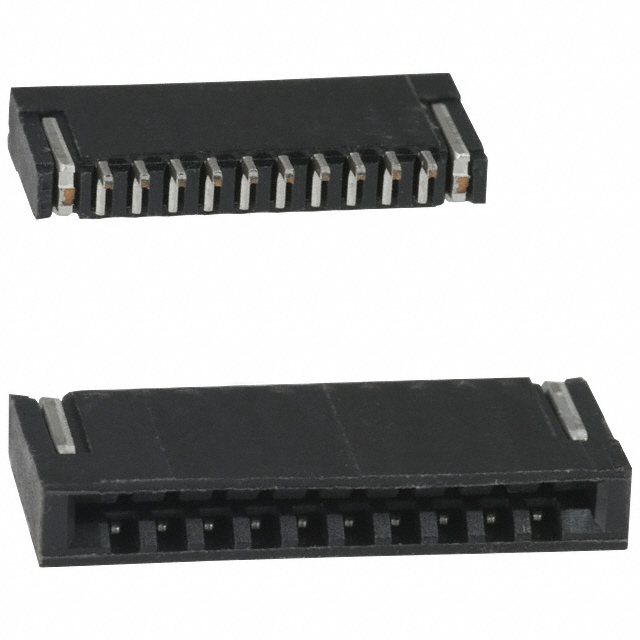

Amphenol ICC (FCI) HFW10R-2STE1	30	Black	Phosphor Bronze	UL94 V-0	0.3 mm	100 V	FFC FPC	1 mm	0.039 in	-55 C	105 ░C	Solder	Tin Alloy	Glass Filled Nylon 6T Polyamide (PA6T)	Contacts Top	Right Angle Surface Mount	1.9 mm	0.075 in	Straight or Tapered	10
