430144 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

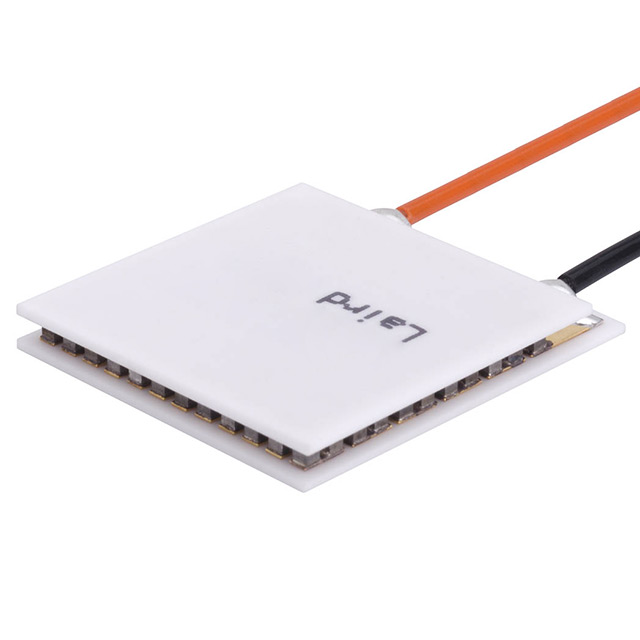

PELTIER HT6,7,F2,3030,TB,RT,W6
| Part | Operating Temperature | Delta Tmax @ Th | Voltage - Max [Max] | Current - Max [Max] | Size / Dimension [x] | Size / Dimension [y] | Height [z] | Number of Stages | Resistance | Qmax @ Th | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 175 °C | 64 °C | 8.1 V | 3.8 A | 34.04 mm | 29.97 mm | 4.09 mm | 1 | 1.95 Ohms | 18.4 W | Lead Wires Sealed - Silicone RTV |
