4846 Series

Catalog

CBL ASSY SMA PLUG TO PLUG 5'

Part	Cable Type	2nd Connector Mounting Type	Color	1st Contact Gender	Features	Cable Impedance	Overall Impedance	Length	Length	Length	2nd Contact Gender	Style	Operating Temperature	2nd Connector	1st Connector	1st Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Length [x]	Length [x]
Pomona Electronics 4846-BB-60	RG-316	Free Hanging (In-Line)	Brown	Male	Shielded	50 Ohms	50 Ohms	60 in	1.5 m	5 ft	Male	SMA to SMA	200 °C	SMA Plug	SMA Plug	Free Hanging (In-Line)
Pomona Electronics 4846-BB-48	RG-316	Free Hanging (In-Line)	Brown	Male	Shielded	50 Ohms	50 Ohms	48 in	1200 mm	4 ft	Male	SMA to SMA	200 °C	SMA Plug	SMA Plug	Free Hanging (In-Line)
Pomona Electronics 4846-C-36	RG-58C	Free Hanging (In-Line)	Black	Male	Shielded	50 Ohms	50 Ohms	36 in	91.44 cm		Male	SMA to SMA		SMA Plug	SMA Plug	Free Hanging (In-Line)	-65 ░C	165 °C	4 GHz
Pomona Electronics 4846-C-60	RG-58C	Free Hanging (In-Line)	Black	Male	Shielded	50 Ohms	50 Ohms	60 in	1.5 m	5 ft	Male	SMA to SMA		SMA Plug	SMA Plug	Free Hanging (In-Line)	-65 ░C	165 °C	4 GHz

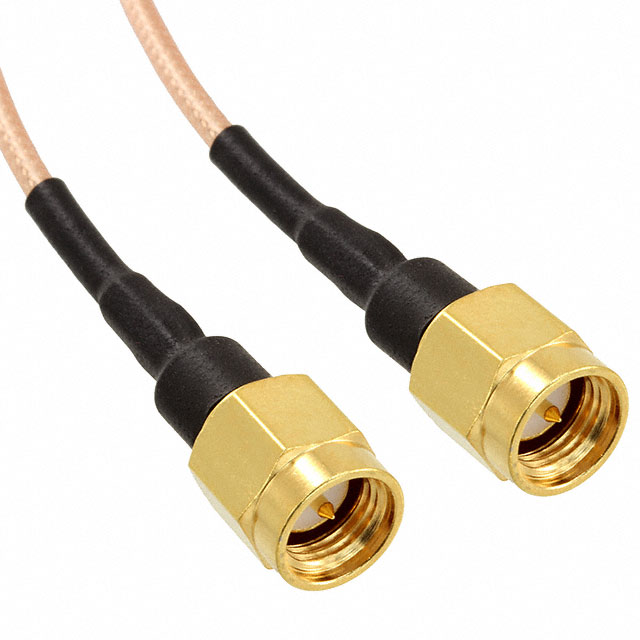

Pomona Electronics 4846-UU-60		Free Hanging (In-Line)	Copper	Male	Shielded	50 Ohms	50 Ohms	60 in	1.5 m	5 ft	Male	SMA to SMA		SMA Plug	SMA Plug	Free Hanging (In-Line)	-65 ░C	165 °C	4 GHz

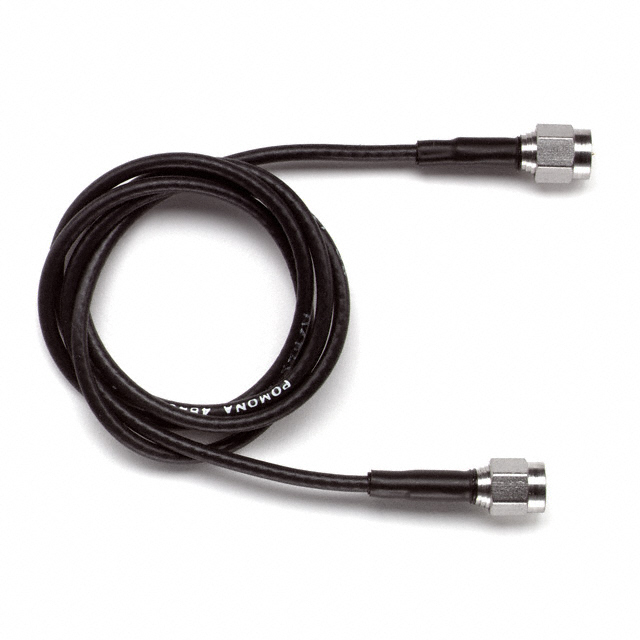

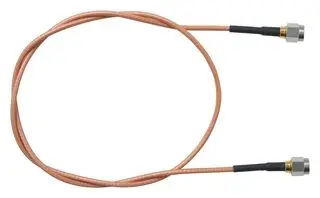

Pomona Electronics 4846-BB-24	RG-316	Free Hanging (In-Line)	Brown	Male	Shielded	50 Ohms	50 Ohms				Male	SMA to SMA	200 °C	SMA Plug	SMA Plug	Free Hanging (In-Line)				609.6 mm	24 in
Pomona Electronics 4846-X-12	RG-142B DS	Free Hanging (In-Line)	Brown	Male	Shielded	50 Ohms	50 Ohms				Male	SMA to SMA	200 °C	SMA Plug	SMA Plug	Free Hanging (In-Line)				304.8 mm	12 in
Pomona Electronics 4846-UU-24		Free Hanging (In-Line)	Copper	Male	Shielded	50 Ohms	50 Ohms				Male	SMA to SMA		SMA Plug	SMA Plug	Free Hanging (In-Line)	-65 ░C	165 °C	4 GHz	609.6 mm	24 in
Pomona Electronics 4846-C-48	RG-58C	Free Hanging (In-Line)	Black	Male	Shielded	50 Ohms	50 Ohms	48 in	1200 mm	4 ft	Male	SMA to SMA		SMA Plug	SMA Plug	Free Hanging (In-Line)	-65 ░C	165 °C	4 GHz
Pomona Electronics 4846-UU-12		Free Hanging (In-Line)	Copper	Male	Shielded	50 Ohms	50 Ohms				Male	SMA to SMA		SMA Plug	SMA Plug	Free Hanging (In-Line)	-65 ░C	165 °C	4 GHz	304.8 mm	12 in
