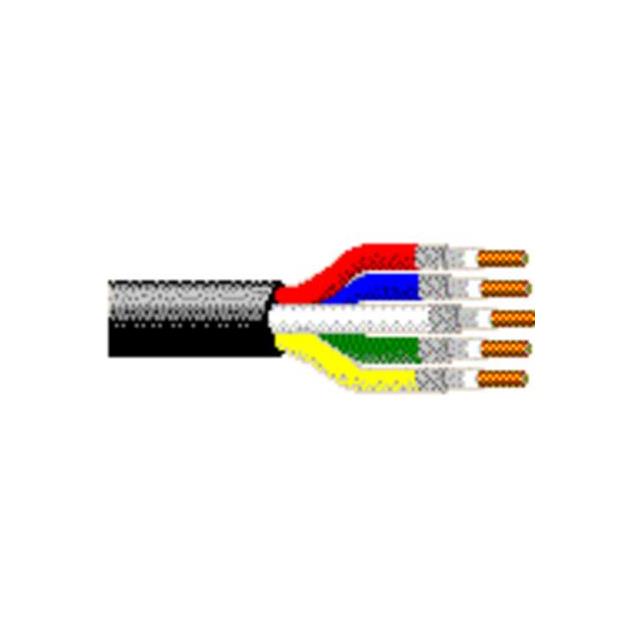

7796A Series
Manufacturer: Belden Inc.
Beta
⌘K
5 #20 PE/GIFHDPE SH FRPVC PVC
| Part | Shield Coverage | Shield Material | Ratings | Conductor Strand | Jacket (Insulation) Material | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Usage | Shield Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Number of Conductors | Conductor Insulation | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % 100 % | Aluminum Polyester Copper Tinned | UL Style CMR | Solid | Poly-Vinyl Chloride (PVC) Riser | 152.4 m | 500 ft | 75 ░C | -35 °C | Multi-Conductor | Video | Braid Foil | 20 AWG | 0.79 in | 20.07 mm | 300 VDC | Black | 5 | Polyethylene (PE) | Copper Bare |
