KRDMLS Series

Catalog

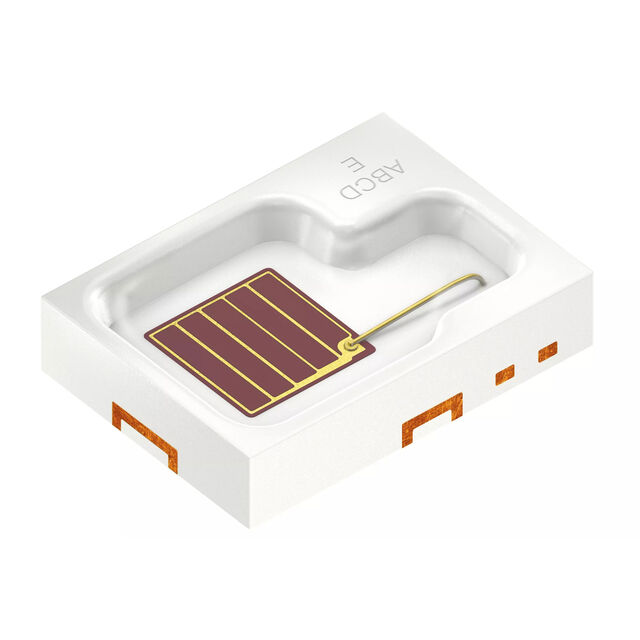

LED SYNIOS P2720 RED SMD

Part	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle	Temperature - Test	Current - Max [Max]	Color	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Package / Case	Package / Case	Wavelength
ams-OSRAM USA INC. KR DMLS31.FR-Z7K5-AF-8E8G-700-S	3.125 V	49 lm/W	120 °	25 °C	800 mA	Red	SMD	0.7 mm	0.028 "	Surface Mount	2.75 mm	2 mm	0.079 in	0.108 "	90 lm	108 lm	125 lm	2720 Metric	1108
ams-OSRAM USA INC. KR DMLS31.23-5K8L-26-M3W3-700-R18-Z	2.52 V	71 lm/W	120 °	25 °C	1 A	Red	2-SMD SMD	0.7 mm	0.028 "	Surface Mount	2.75 mm	2 mm	0.079 in	0.108 "	71 lm		180 lm	2720 Metric	1108	621 nm 621 nm
