DK1 Series

Catalog

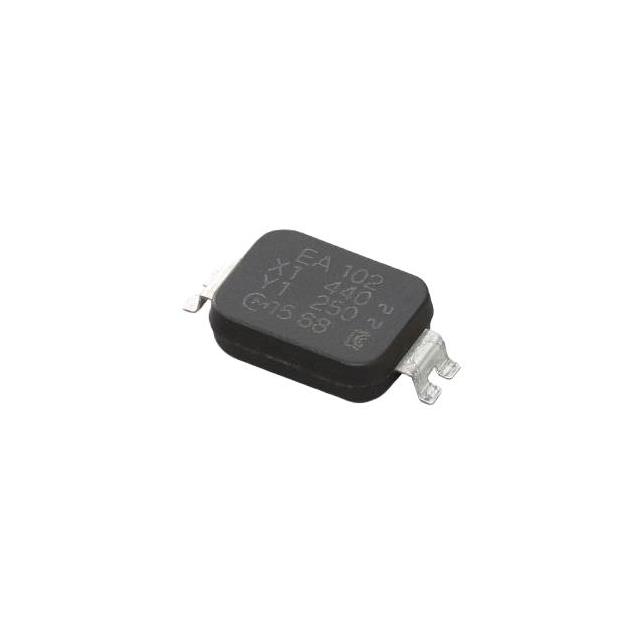

CAP CERAMIC SUPPRESSION Y1 47PF 300VAC SL 10%( 11.4 X 6 X 2.5MM) SMD 125°C T/R

Part	Package / Case	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lead Style	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Applications	Ratings [custom]	Ratings [custom]	Mounting Type	Capacitance	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]
Murata Electronics DK11XEA470K86RBH01	Nonstandard SMD	10 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	300 VAC	Safety	X1	Y1	MLCC Surface Mount	47 pF	SL	125 °C	-40 C
Murata Electronics DK1B3EA101K86RBH01	Nonstandard SMD	10 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	300 VAC	Safety	X1	Y1	MLCC Surface Mount	100 pF	B	125 °C	-40 C
Murata Electronics DK11XEA470K86RAH01	Nonstandard SMD	10 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	250 VAC	Safety	X1	Y1	MLCC Surface Mount	47 pF	SL	125 °C	-40 C
Murata Electronics DK1B3EA221K86HBH01	Nonstandard SMD	10 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	440 VAC	Safety	X1	Y1	MLCC Surface Mount	220 pF	B	125 °C	-40 C
Murata Electronics DK1B3EA331K86RBH01	Nonstandard SMD	10 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	300 VAC	Safety	X1	Y1	MLCC Surface Mount	330 pF	B	125 °C	-40 C
Murata Electronics DK1E3EA152M86HAH01	Nonstandard SMD	20 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	440 VAC	Safety	X1	Y1	MLCC Surface Mount	1500 pF	E	125 °C	-40 C
Murata Electronics DK1B3EA471K86HAH01	Nonstandard SMD	10 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	440 VAC	Safety	X1	Y1	MLCC Surface Mount	470 pF	B	125 °C	-40 C
Murata Electronics DK11XEA100K86HBH01	Nonstandard SMD	10 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	440 VAC	Safety	X1	Y1	MLCC Surface Mount	10 pF	SL	125 °C	-40 C
Murata Electronics DK1E3EA102M86RAH01	Nonstandard SMD	20 %	0.315 in	0.236 "	6 mm	8 mm	Gull Wing	2.5 mm	0.098 in	250 VAC	Safety	X1	Y1	MLCC Surface Mount	0.001 µF	E	125 °C	-40 C
