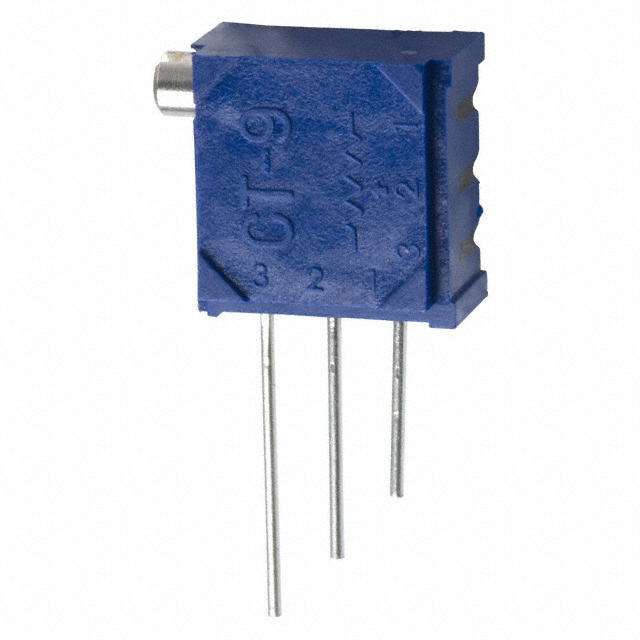

CT9EX Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 200 OHM 0.5W PC PIN SIDE

Part	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Resistive Material	Temperature Coefficient	Termination Style	Power (Watts)	Power (Watts)	Resistance	Number of Turns	Mounting Type
Nidec Components Corporation CT-9EX201	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	200 Ohms	18	Through Hole
Nidec Components Corporation CT-9EX200	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	250 ppm/°C	PC Pins	0.5 W	0.5 W	20 Ohms	18	Through Hole
Nidec Components Corporation CT-9EX100	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	250 ppm/°C	PC Pins	0.5 W	0.5 W	10 Ohms	18	Through Hole
Nidec Components Corporation CT-9EX104	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	100 kOhms	18	Through Hole
Nidec Components Corporation CT-9EX202	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	2 kOhms	18	Through Hole
Nidec Components Corporation CT-9EX503	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	50000 Ohms	18	Through Hole
Nidec Components Corporation CT-9EX204	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	200000 Ohms	18	Through Hole
Nidec Components Corporation CT-9EX203	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	20 kOhms	18	Through Hole
Nidec Components Corporation CT-9EX501	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	0.5 kOhms	18	Through Hole
Nidec Components Corporation CT-9EX205	Side Adjustment	0.378 in	5.5 mm	0.217 "	9.6 mm	10 %	Cermet	100 ppm/°C	PC Pins	0.5 W	0.5 W	2 MOhms	18	Through Hole
