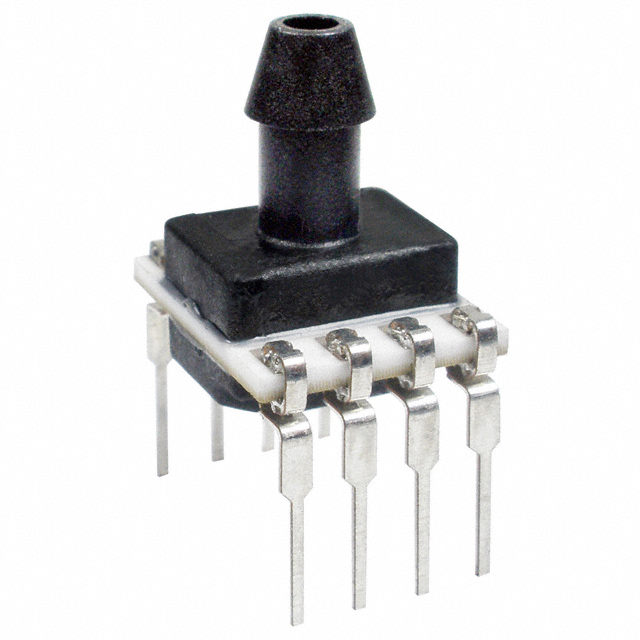

HSCDANN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 30PSIA 0.19" 12BIT 8DIP
| Part | Mounting Type | Port Size | Port Size | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Output | Termination Style | Features | Supplier Device Package | Maximum Pressure [Max] | Maximum Pressure [Max] | Port Style | Operating Pressure | Operating Pressure | Output Type | Package / Case | Package / Case | Accuracy | Applications | Operating Pressure [custom] | Operating Pressure [custom] | Output [Min] | Output [Max] | Pressure Type | Maximum Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 3.6 V | 3 V | 12 b | PC Pin | Amplified Output Temperature Compensated | 8-DIP | 60 PSI | 413.69 kPa | Barbed | 206.84 kPa | 30 PSI | I2C | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | |||||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 3.6 V | 3 V | PC Pin | Amplified Output Temperature Compensated | 8-DIP | 30 PSI | 206.84 kPa | Barbed | Analog Voltage | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | 15 PSI | 103.42 kPa | 0.33 V | 2.97 V | ||||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 3.6 V | 3 V | 12 b | PC Pin | Amplified Output Temperature Compensated | 8-DIP | 60 PSI | 413.69 kPa | Barbed | 206.84 kPa | 30 PSI | I2C | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | Vented Gauge | ||||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 5.25 V | 4.75 V | PC Pin | Amplified Output Temperature Compensated | 8-DIP | 29.01 PSI | 200 kPa | Barbed | 60 kPa | 8.7 PSI | Analog Voltage | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | 0.5 V | 4.5 V | Vented Gauge | |||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 5.25 V | 4.75 V | PC Pin | Amplified Output Temperature Compensated | 8-DIP | Barbed | 103.42 kPa | 15 PSI | Analog Voltage | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | 0.5 V | 4.5 V | Differential | 60 PSI | 413.69 kPa | |||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 3.6 V | 3 V | 12 b | PC Pin | Amplified Output Temperature Compensated | 8-DIP | 30 PSI | 206.84 kPa | Barbed | I2C | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | 15 PSI | 103.42 kPa | |||||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 3.6 V | 3 V | PC Pin | Amplified Output Temperature Compensated | 8-DIP | 29.01 PSI | 200 kPa | Barbed | 100 kPa | 14.5 PSI | Analog Voltage | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | 0.33 V | 2.97 V | Vented Gauge | |||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 5.05 V | 4.95 V | PC Pin | Amplified Output Temperature Compensated | 8-DIP | Barbed | 1.25 kPa | 0.18 PSI | Analog Voltage | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | 0.5 V | 4.5 V | Differential | 9.76 PSI | 67.28 kPa | |||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | Through Hole | 4.93 mm | 0.19 " | 85 °C | -20 C | 5.25 V | 4.75 V | PC Pin | Amplified Output Temperature Compensated | 8-DIP | 60 PSI | 413.69 kPa | Barbed | 206.84 kPa | 30 PSI | Analog Voltage | 0.524 " 13.3 mm | 8-DIP | 0.25 % | Board Mount | 0.5 V | 4.5 V |
