1977276 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

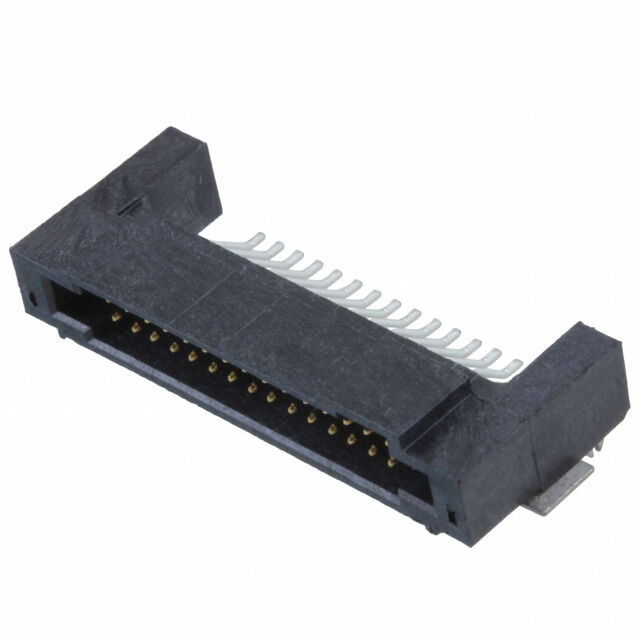

CONN HEADER SMD R/A 30POS 1.27MM
| Part | Fastening Type | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Contact Material | Number of Positions Loaded | Applications | Features | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Color | Number of Positions | Contact Shape | Connector Type | Termination | Contact Finish - Post | Shrouding | Mounting Type | Insulation Height | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Push-Pull | Gold | 150 Áin | 3.81 Ám | 30 VAC | Copper Alloy | All | Automotive General Purpose Medical Military Telecommunications | Board Lock Solder Retention | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Male Pin | Black | 30 | Circular | Header | Solder | Tin-Lead | Shrouded - 4 Wall | Surface Mount Right Angle | 5.4 mm | 0.213 in | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 2 |
