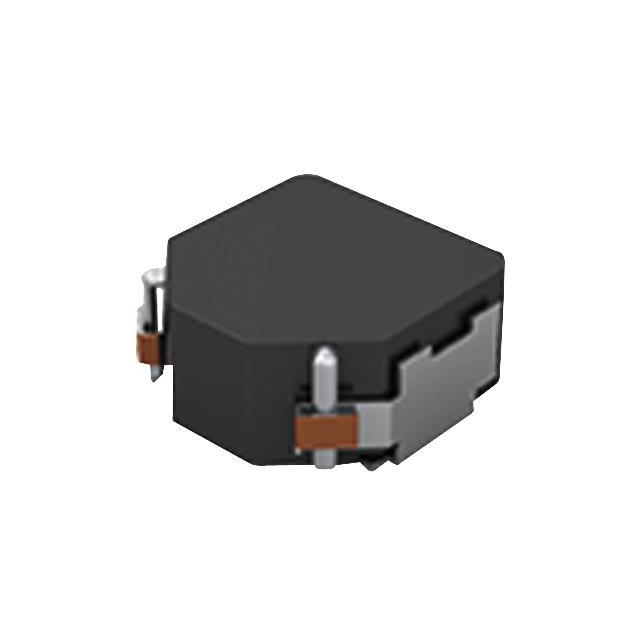

DFEG10040D Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 5.6UH 8A 18 MOHM SMD
| Part | Height - Seated (Max) | Height - Seated (Max) [Max] | Current - Saturation (Isat) | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Tolerance | Ratings | Shielding | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 4 mm | 0.157 in | 9.2 A | 100 kHz | 18 mOhm | Iron Powder | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | AEC-Q200 | Shielded | 8 A | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 5.6 µH | |
 Murata Electronics | ||||||||||||||||||||
Murata Electronics | 4 mm | 0.157 in | 8.6 A | 100 kHz | 23 mOhm | Iron Powder | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | AEC-Q200 | Shielded | 6.4 A | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 6.8 µH | |
Murata Electronics | 4 mm | 0.157 in | 13 A | 100 kHz | 12 mOhm | Iron Powder | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | AEC-Q200 | Shielded | 10 A | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 3.3 µH | |
Murata Electronics | ||||||||||||||||||||
Murata Electronics | 4 mm | 0.157 in | 100 kHz | Iron Powder | 125 °C | -40 C | Surface Mount | Nonstandard | 20 % | AEC-Q200 | Shielded | 5.7 A | 10.9 mm | 10 mm | 0.429 " | 0.394 in | 10 µH | 33 mOhm |
