RC3-2 Series
Manufacturer: Marlow Industries, Inc.
Beta
⌘K
TEM 16X16X3.94MM
| Part | Qmax @ Th | Type | Features | Height [z] | Delta Tmax @ Th | Current - Max [Max] | Operating Temperature | Voltage - Max [Max] | Number of Stages | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

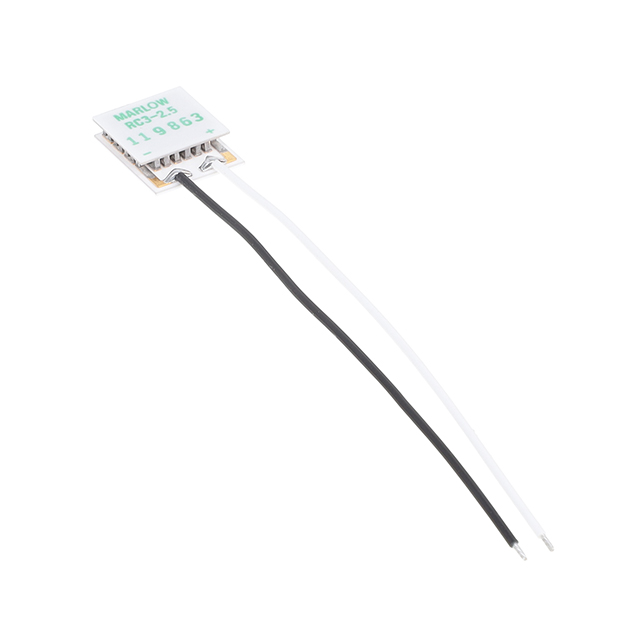

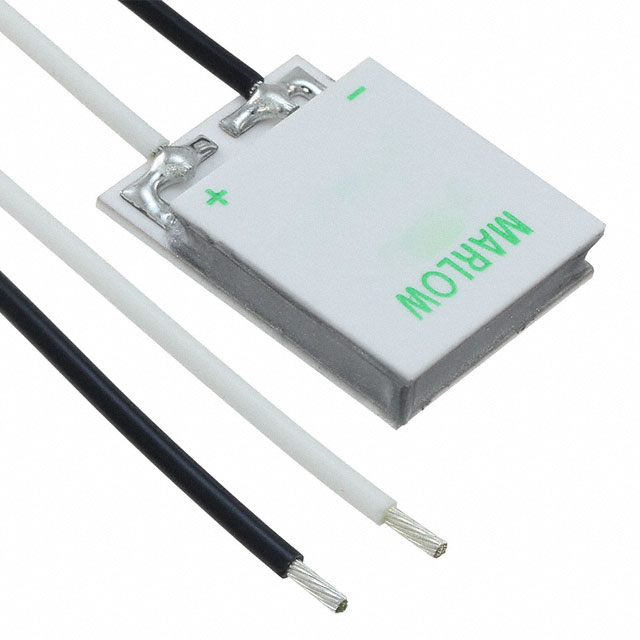

 Marlow Industries, Inc. | 6 W | TEC (Thermoelectric Cooler) | Lapped Lead Wires Sealed | 3.94 mm | 65 °C | 2.5 A | 130 °C | 3.6 V | 1 | 20.5 mm | Rectangular | 16 mm | 1.2 Ohms |
 Marlow Industries, Inc. | 6 W | TEC (Thermoelectric Cooler) | Lead Wires | 4.04 mm | 65 °C | 2.5 A | 130 °C | 3.6 V | 1 | 20.5 mm | Rectangular | 16 mm | 1.2 Ohms |
 Marlow Industries, Inc. | 6 W | TEC (Thermoelectric Cooler) | Lapped Lead Wires | 3.94 mm | 65 °C | 2.5 A | 130 °C | 3.6 V | 1 | 20.5 mm | Rectangular | 16 mm | 1.2 Ohms |
