2002-7571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

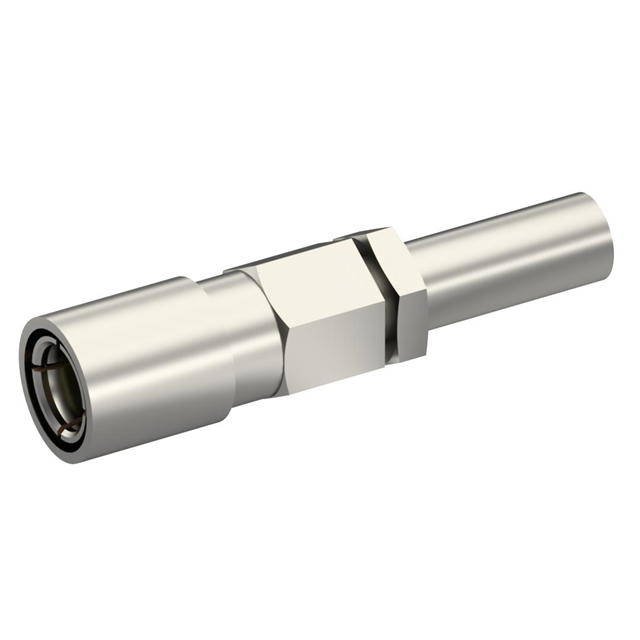

SMB / STRAIGHT PLUG FEMALE CRIMP
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Body Material | Voltage Rating | Insertion Loss | Number of Ports | Cable Group | Cable Group | Housing Color | Shield Termination | Fastening Type | Impedance | Mounting Type | Center Contact Material | Connector Type | Frequency - Max [Max] | Connector Style | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Nickel | Gold | Brass | 250 V | 0.3 dB | 1 | 196 | RG-178 | Silver | Crimp | Snap-On | 50 Ohms | Free Hanging (In-Line) | Beryllium Copper | Female Socket Plug | 4 GHz | SMB | Crimp |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Nickel | Gold | Brass | 335 V | 1 | 316 | RG-174 | Silver | Crimp | Snap-On | 50 Ohms | Free Hanging (In-Line) | Beryllium Copper | Female Socket Plug | 4 GHz | SMB | Crimp |
