612-87 Series

Manufacturer: Preci-Dip

Catalog

CONN IC DIP SOCKET 50POS GOLD

Part	Contact Resistance	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [y]	Contact Finish - Post	Contact Material - Post [custom]	Contact Material - Mating	Features	Contact Finish Thickness - Mating	Contact Finish - Mating	Pitch - Post	Pitch - Post	Housing Material	Pitch - Mating	Pitch - Mating	Type	Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Number of Positions or Pins (Grid)	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 612-87-950-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in	2	50	25	Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP	22.86 mm	0.9 in	-55 C	125 °C	Through Hole	Solder
Preci-Dip 612-87-420-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in				Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP		0.4 in	-55 C	125 °C	Through Hole	Solder	20

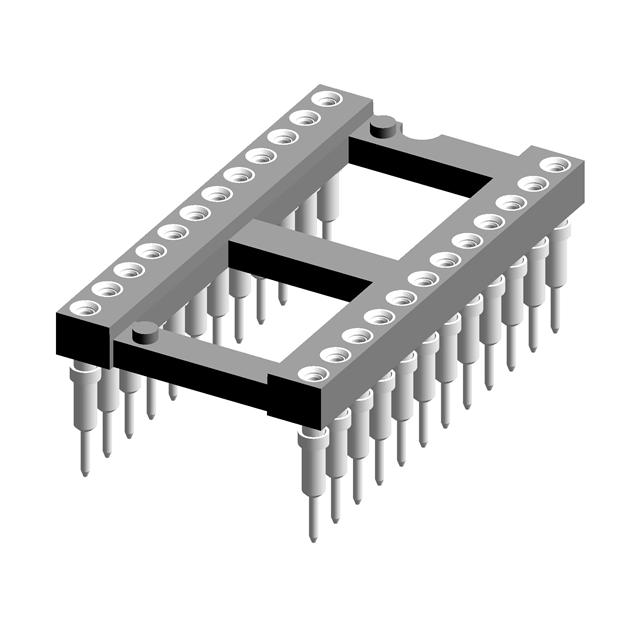

Preci-Dip 612-87-624-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in	12		2	Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP			-55 C	125 °C	Through Hole	Solder	24	15.24 mm	0.6 in
Preci-Dip 612-87-636-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in				Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP			-55 C	125 °C	Through Hole	Solder	36	15.24 mm	0.6 in

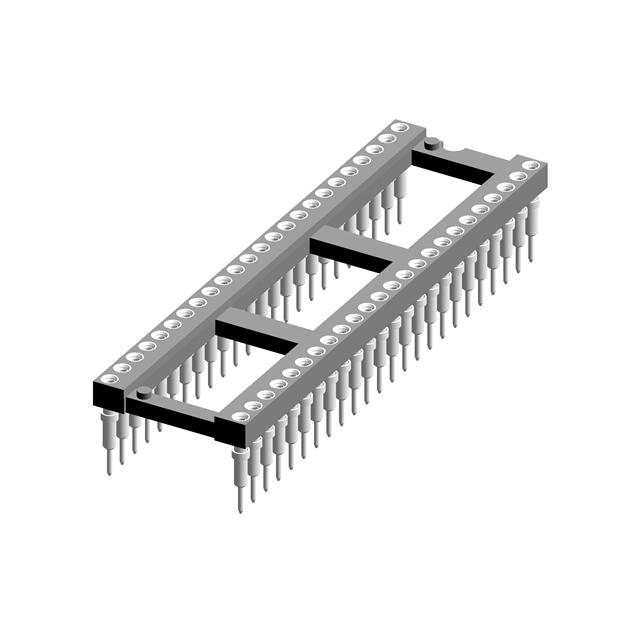

Preci-Dip 612-87-648-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in	24		2	Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP			-55 C	125 °C	Through Hole	Solder		15.24 mm	0.6 in	48

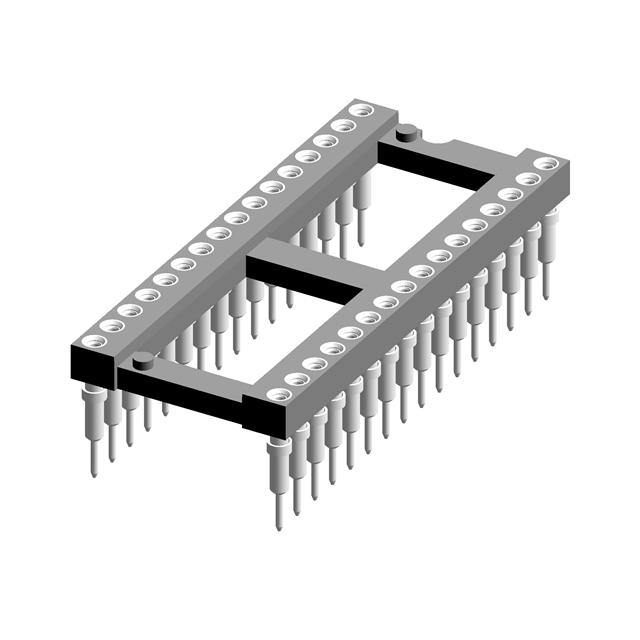

Preci-Dip 612-87-632-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in				Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP			-55 C	125 °C	Through Hole	Solder	32	15.24 mm	0.6 in

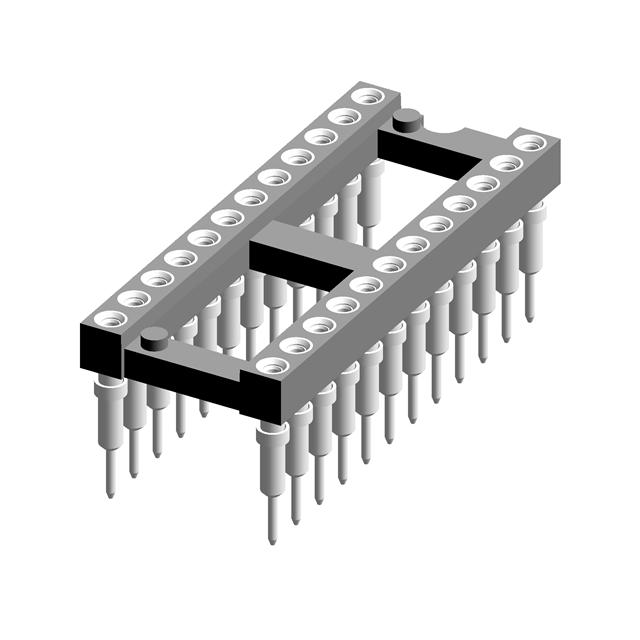

Preci-Dip 612-87-424-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in	12		2	Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP		0.4 in	-55 C	125 °C	Through Hole	Solder	24

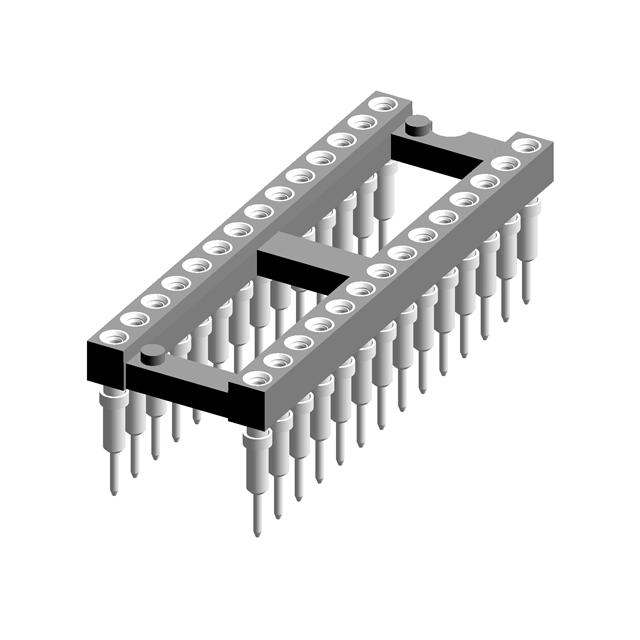

Preci-Dip 612-87-428-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in				Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP		0.4 in	-55 C	125 °C	Through Hole	Solder	28
Preci-Dip 612-87-964-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in	2		32	Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP	22.86 mm	0.9 in	-55 C	125 °C	Through Hole	Solder	64

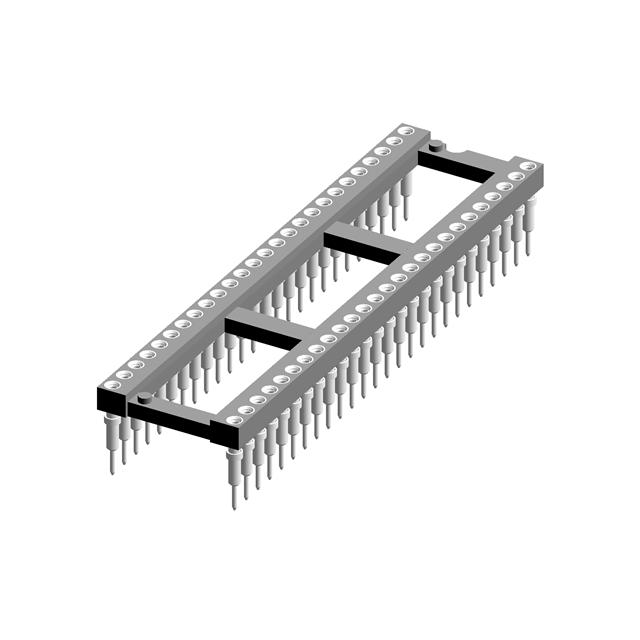

Preci-Dip 612-87-652-41-001101	10 mOhm	UL94 V-0	1 A	7.39 mm	0.291 in				Tin	Brass	Beryllium Copper	Carrier Open Frame	Flash	Gold	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	DIP			-55 C	125 °C	Through Hole	Solder		15.24 mm	0.6 in
