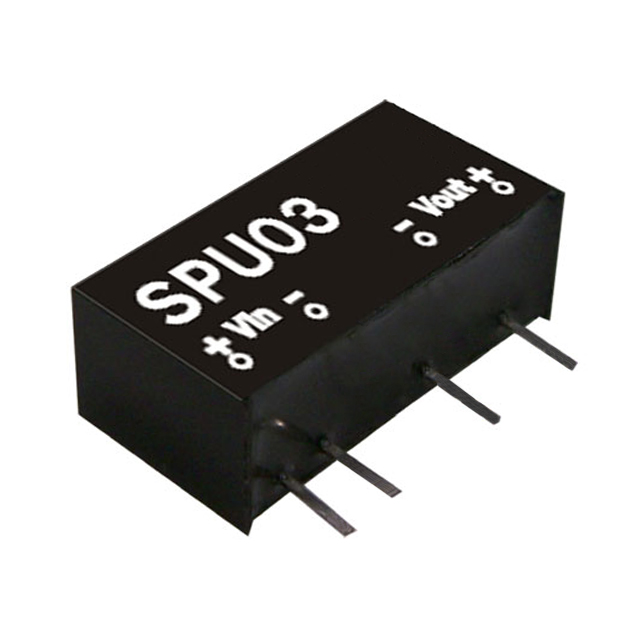

SPU03 Series

Catalog

DC DC CONVERTER 12V 3W

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Type	Mounting Type	Applications	Package / Case	Efficiency	Voltage - Input (Min) [Min]
MEAN WELL USA Inc. SPU03L-12	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	250 mA	OCP SCP	90 °C	-40 °C	3000 V	12 V	3 W	5.5 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads	85 %	4.5 V
MEAN WELL USA Inc. SPU03M-12	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	250 mA	OCP SCP	90 °C	-40 °C	3000 V	12 V	3 W	13.2 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads	86 %	10.8 V
MEAN WELL USA Inc. SPU03M-05	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	600 mA	OCP SCP	90 °C	-40 °C	3000 V	5 V	3 W	13.2 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads	83 %	10.8 V
MEAN WELL USA Inc. SPU03N-12	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	250 mA	OCP SCP	90 °C	-40 °C	3000 V	12 V	3 W	26.4 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads	86 %	21.6 V
MEAN WELL USA Inc. SPU03L-05	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	600 mA	OCP SCP	90 °C	-40 °C	3000 V	5 V	3 W	5.5 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads		4.5 V
MEAN WELL USA Inc. SPU03N-05	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	600 mA	OCP SCP	90 °C	-40 °C	3000 V	5 V	3 W	26.4 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads	83 %	21.6 V
MEAN WELL USA Inc. SPU03L-15	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	200 mA	OCP SCP	90 °C	-40 °C	3000 V	15 V	3 W	5.5 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads	86 %	4.5 V
MEAN WELL USA Inc. SPU03M-15	7.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	19.6 mm	200 mA	OCP SCP	90 °C	-40 °C	3000 V	15 V	3 W	13.2 V	1	Isolated Module	Through Hole	ITE (Commercial)	7-SIP Module 4 Leads	88 %	10.8 V
