9P Type Series

Catalog

DC FANS DC AXIAL FAN, 40X40X28MM, 5VDC, GROOVE FOR LEAD, LOCKED ROTOR SENSOR

Part	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Bearing Type	Static Pressure	Static Pressure	Approval Agency	Weight	Weight	Power (Watts)	Fan Type	Size / Dimension [x]	Size / Dimension [z]	RPM	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Features	Termination	Noise	Voltage - Rated	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Weight [custom]	Weight [custom]	Size / Dimension	Static Pressure	Size / Dimension [y]
Sanyo Denki America Inc. 109P0405F3D013	Plastic	0.28 A	5.5 V	4.5 V	Plastic	Ball	58.8 Pa	0.236 in H2O	CSA TUV UL	52.16 g	0.115 lb	1.4 W	Tubeaxial	40 mm	40 mm	6700 RPM	28 mm	-20 ░C	70 °C	0.241 mł/min	8.6 CFM	Locked Rotor Sensor	3 Wire Leads	30 dB	5 V
Sanyo Denki America Inc. 109P1312S1021						Ball	117.6 Pa	0.472 in H2O	CSA TUV UL	350.17 g	0.772 lb	15.6 W	Tubeaxial	5 "	5 in	3300 RPM		-20 ░C	60 °C	4.14 mł/min	148 CFM		2 Wire Leads	47 dB	12 VDC	38 mm	60 °C	-4 °F

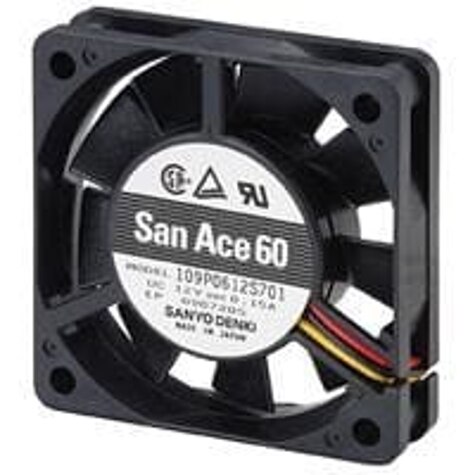

Sanyo Denki America Inc. 109P0624J7D01	Plastic	140 mA	27.6 VDC	14	Plastic	Ball	86.4 Pa	0.347 in H2O	CSA TUV UL			3.36 W	Tubeaxial	60 mm	60 mm	6200 RPM		-20 ░C	60 °C	0.602 m³/min	21.5 CFM	Locked Rotor Sensor	3 Wire Leads	44 dB(A)	24 VDC	15 mm	60 °C	-4 °F	40000 Hrs	0.133 lb	60.33 g
Sanyo Denki America Inc. 109P0424H9D01	Plastic				Plastic	Ball			CSA TUV UR				Tubeaxial	40 mm	40 mm							Locked Rotor Sensor	3 Wire Leads		24 VDC	10 mm

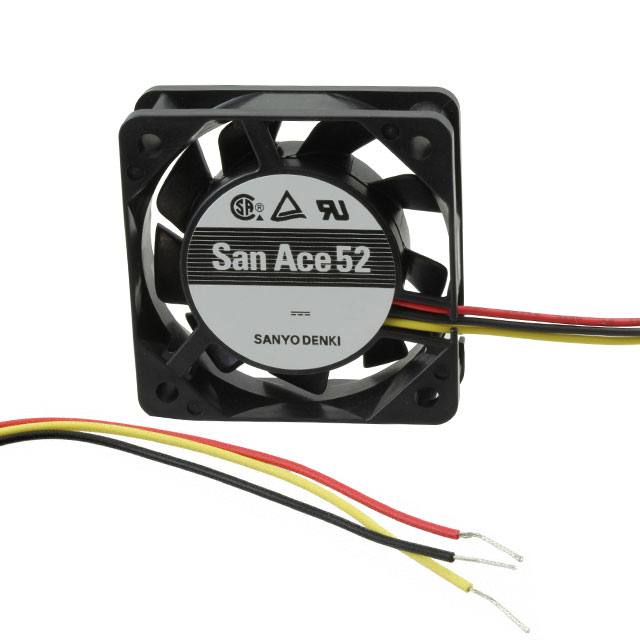

Sanyo Denki America Inc. 109P0512H702	Plastic	100 mA	13.8 VDC	7 V	Plastic	Ball	31.8 Pa	0.128 in H2O	CSA TUV UL			1.2 W	Tubeaxial	52 mm	52 mm	4600 RPM		-20 ░C	70 °C	0.252 m³/min	9 CFM		2 Wire Leads	27 dB(A)	12 VDC	15 mm				0.122 lb	55.34 g	Square
Sanyo Denki America Inc. 109P0412G3D01						Ball			CSA TUV UL	52.16 g	0.115 lb	3.72 W	Tubeaxial	40 mm	40 mm	11500 RPM	28 mm	-20 ░C	60 °C			Locked Rotor Sensor	3 Wire Leads	42 dB	12 VDC		60 °C	-4 °F
Sanyo Denki America Inc. 109P0612B701						Ball	0.047 in H2O		CSA TUV UL			600 mW	Tubeaxial	60 mm	60 mm	2200 RPM		-20 ░C	70 °C	0.207 m³/min	7.4 CFM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	21 dB(A)	12 VDC	15 mm				0.133 lb	60.33 g		11.8 Pa

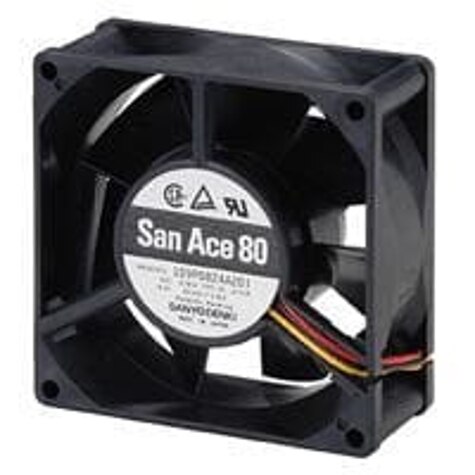

Sanyo Denki America Inc. 109P0824H6D01	Plastic	120 mA			Plastic	Ball	29.4 Pa	0.118 in H2O	CSA TUV UL			2.88 W	Tubeaxial	80 mm	80 mm	2900 RPM		-20 ░C	70 °C	0.832 mł/min	29.7 CFM	Locked Rotor Sensor	3 Wire Leads	31 dB(A)	24 VDC	20 mm				0.222 lb	100.7 g
Sanyo Denki America Inc. 109P0812M601	Plastic		13.8 VDC	10.2 VDC	Plastic	Ball	18.6 Pa	0.075 in H2O	CSA TUV UL			1.56 W	Tubeaxial	80 mm	80 mm	2300 RPM		-20 ░C	70 °C	0.664 m³/min	23.7 CFM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	25 dB(A)	12 VDC	20 mm				0.222 lb	100.7 g
Sanyo Denki America Inc. 109P1424H1D01						Ball	94.1 Pa	0.378 in H2O	CSA TUV UL			8.88 W	Tubeaxial	140 mm		2600 RPM		-20 ░C	70 °C	4.45 m³/min	159 CFM	Locked Rotor Sensor	3 Wire Leads	46 dB(A)	24 VDC	38 mm				0.993 lb	450.42 g			140 mm
