E2B-M30 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SENSOR PROX INDUCTIVE 30MM CYL

Part	Sensing Distance	Sensing Distance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Material - Body	Output Type	Ingress Protection	Response Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Shielding	Indicator [custom]

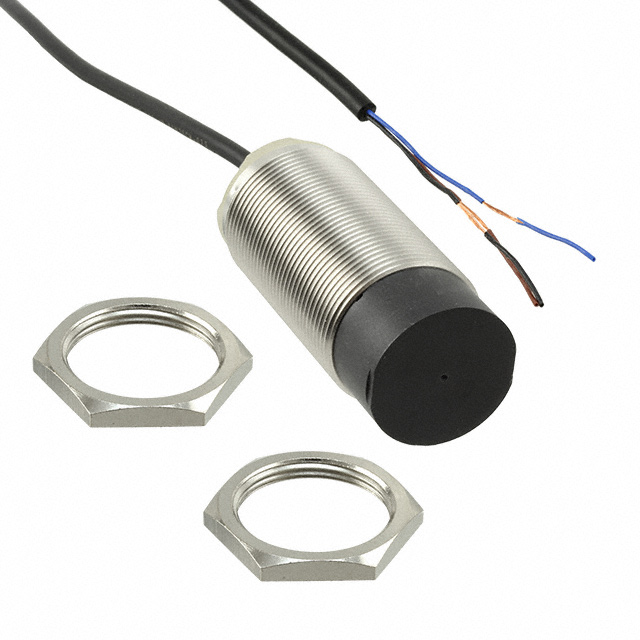

Omron Electronics Inc-EMC Div E2B-M30LN30-WP-C1 2M	1.181 in	30 mm	Cylinder Threaded - M30	70 °C	-25 °C	Cable Leads	Nickel-Plated Brass	NPN-NO 3-Wire	IP67	100 Hz	30 VDC	10 VDC	Inductive	Unshielded	LED

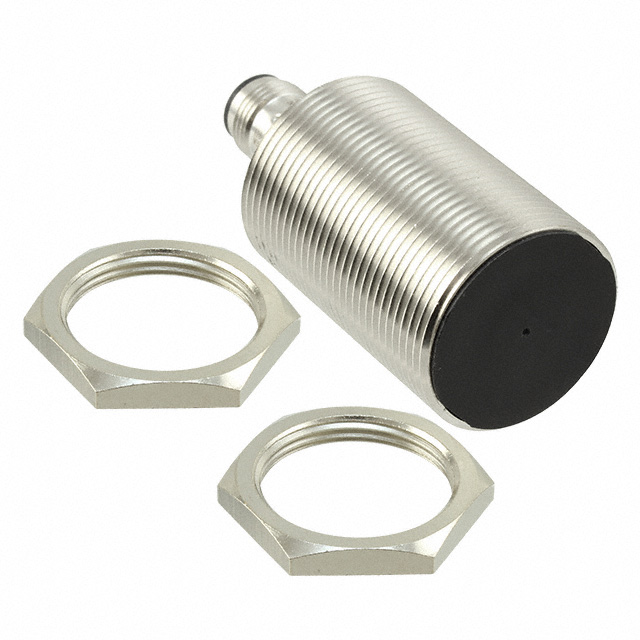

Omron Electronics Inc-EMC Div E2B-M30KS15-M1-C2	0.591 "	15 mm	Cylinder Threaded - M30	70 °C	-25 °C	Connector	Nickel-Plated Brass	NPN-NC 3-Wire	IP67	250 Hz	30 VDC	10 VDC	Inductive	Shielded	LED

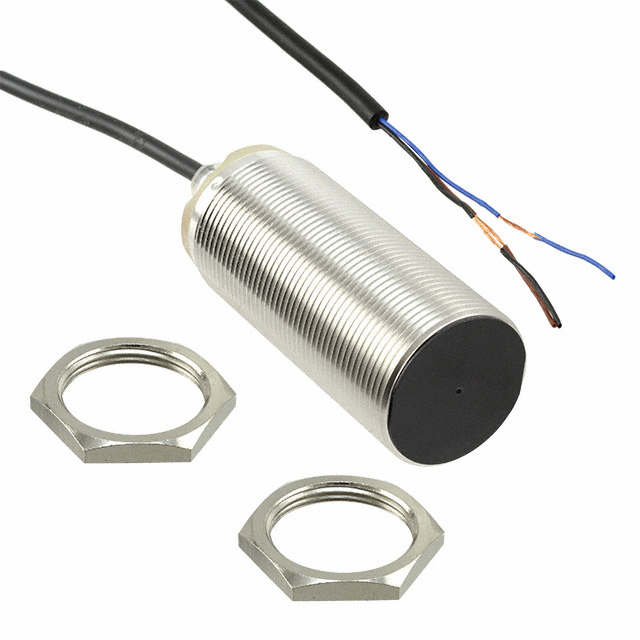

Omron Electronics Inc-EMC Div E2B-M30LS15-WP-C2 2M	0.591 "	15 mm	Cylinder Threaded - M30	70 °C	-25 °C	Cable Leads	Nickel-Plated Brass	NPN-NC 3-Wire	IP67	250 Hz	30 VDC	10 VDC	Inductive	Shielded	LED
Omron Electronics Inc-EMC Div E2B-M30LS10-WP-B2 2M	0.394 in	10 mm	Cylinder Threaded - M30	70 °C	-25 °C	Cable Leads	Nickel-Plated Brass	PNP-NC 3-Wire	IP67	400 Hz	30 VDC	10 VDC	Inductive	Shielded	LED

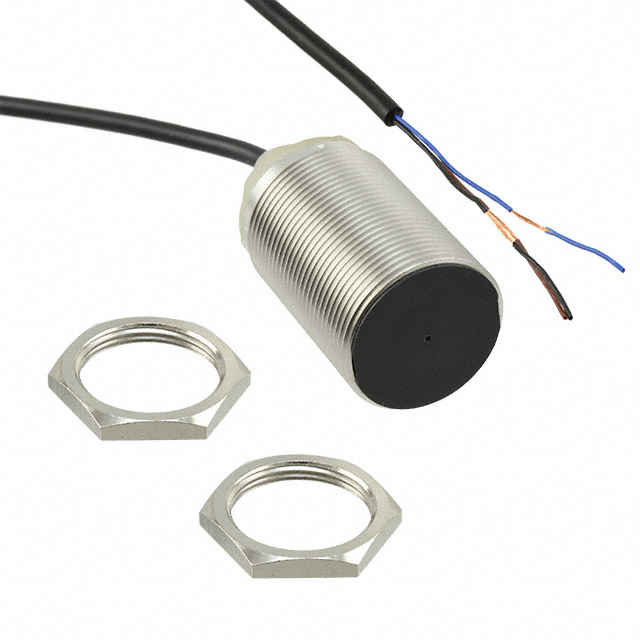

Omron Electronics Inc-EMC Div E2B-M30KS15-WP-C2 2M	0.591 "	15 mm	Cylinder Threaded - M30	70 °C	-25 °C	Cable Leads	Nickel-Plated Brass	NPN-NC 3-Wire	IP67	250 Hz	30 VDC	10 VDC	Inductive	Shielded	LED
Omron Electronics Inc-EMC Div E2B-M30KS10-WP-C1 5M	0.394 in	10 mm	Cylinder Threaded - M30	70 °C	-25 °C	Cable Leads	Nickel-Plated Brass	NPN-NO 3-Wire	IP67	400 Hz	30 VDC	10 VDC	Inductive	Shielded	LED
Omron Electronics Inc-EMC Div E2B-M30LS10-M1-B1	0.394 in	10 mm	Cylinder Threaded - M30	70 °C	-25 °C	Connector	Nickel-Plated Brass	PNP-NO 3-Wire	IP67	400 Hz	30 VDC	10 VDC	Inductive	Shielded	LED
Omron Electronics Inc-EMC Div E2B-M30KS10-WP-B2 2M	0.394 in	10 mm	Cylinder Threaded - M30	70 °C	-25 °C	Cable Leads	Nickel-Plated Brass	PNP-NC 3-Wire	IP67	400 Hz	30 VDC	10 VDC	Inductive	Shielded	LED
Omron Electronics Inc-EMC Div E2B-M30KN20-WP-B1 2M	0.787 in	20 mm	Cylinder Threaded - M30	70 °C	-25 °C	Cable Leads	Nickel-Plated Brass	PNP-NO 3-Wire	IP67	100 Hz	30 VDC	10 VDC	Inductive	Unshielded	LED
Omron Electronics Inc-EMC Div E2B-M30LS10-M1-C2	0.394 in	10 mm	Cylinder Threaded - M30	70 °C	-25 °C	Connector	Nickel-Plated Brass	NPN-NC 3-Wire	IP67	400 Hz	30 VDC	10 VDC	Inductive	Shielded	LED
