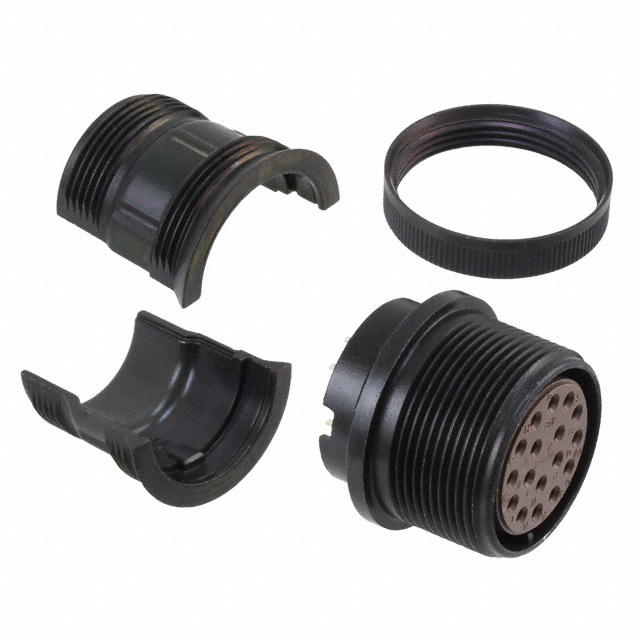

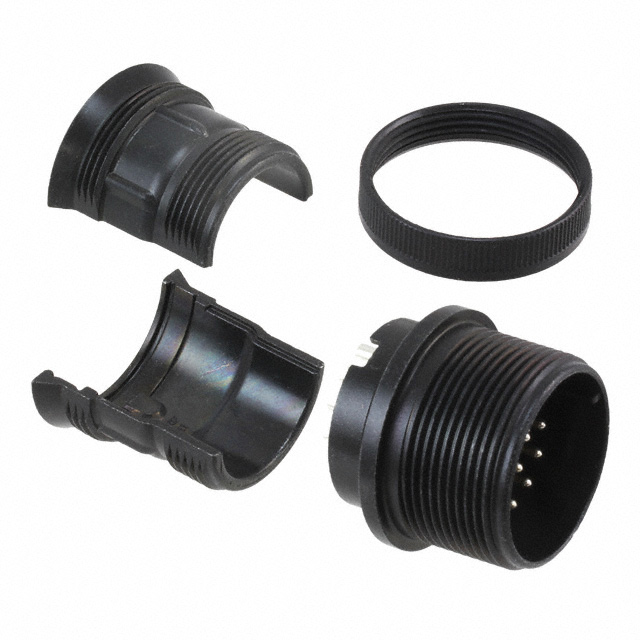

N/MS3101 Series
Manufacturer: JAE Electronics
Beta
⌘K

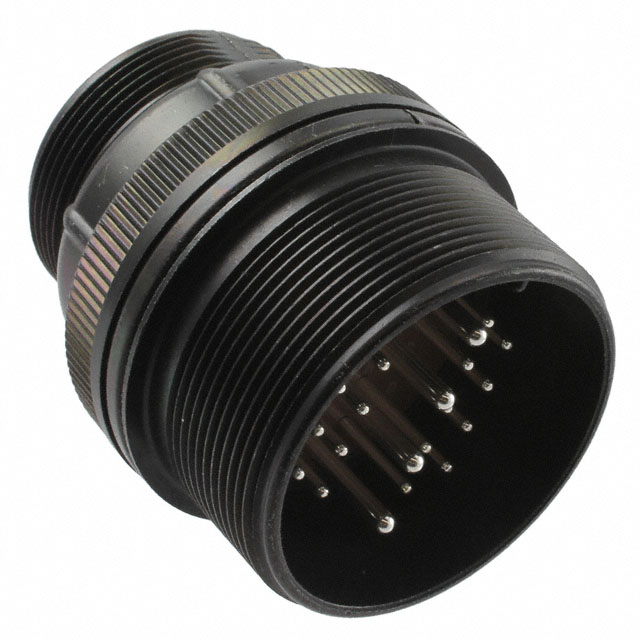

CONN RCPT MALE 22P SOLDER CUP
| Part | Color | Orientation | Voltage Rating | Insert Material | Backshell Material, Plating | Number of Positions | Features | Contact Material | Contact Finish - Mating | Connector Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Shell Size - Insert | Primary Material | Shell Material | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Black | N (Normal) | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | 22 | Backshell | Copper Alloy | Silver | Receptacle Male Pins | Threaded | -55 C | 125 °C | Zinc | 28-11 | Metal | Aluminum Alloy | 13 A 23 A | Free Hanging (In-Line) | UL94 V-0 | ||||
JAE Electronics | Black | N (Normal) | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | 8 | Backshell | Copper Alloy | Silver | Receptacle Female Sockets | Threaded | -55 C | 125 °C | Zinc | 18-8 | Metal | Aluminum Alloy | 13 A 23 A | Free Hanging (In-Line) | UL94 V-0 | ||||
JAE Electronics | Black | N (Normal) | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | 2 | Backshell | Copper Alloy | Silver | Receptacle Male Pins | Threaded | -55 C | 125 °C | Zinc | 12S-3 | Metal | Aluminum Alloy | 13 A | Free Hanging (In-Line) | UL94 V-0 | ||||
JAE Electronics | Black | N (Normal) | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | 7 | Backshell | Copper Alloy | Silver | Receptacle Female Sockets | Threaded | -55 C | 125 °C | Zinc | 16S-1 | Metal | Aluminum Alloy | 13 A | Free Hanging (In-Line) | UL94 V-0 | ||||
 JAE Electronics | Black | N (Normal) | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | Backshell | Copper Alloy | Silver | Receptacle Female Sockets | Threaded | -55 C | 125 °C | Zinc | Metal | Aluminum Alloy | 13 A | Free Hanging (In-Line) | UL94 V-0 | 20 | 29 | ||||
JAE Electronics | Black | N (Normal) | 200 VAC | Synthetic Resin | Aluminum Alloy Zinc | 4 | Backshell | Copper Alloy | Silver | Receptacle Female Sockets | Threaded | -55 C | 125 °C | Zinc | 14S-2 | Metal | Aluminum Alloy | 13 A | Free Hanging (In-Line) | UL94 V-0 | ||||
JAE Electronics | Black | N (Normal) | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | 22 | Backshell | Copper Alloy | Silver | Receptacle Female Sockets | Threaded | -55 C | 125 °C | Zinc | 28-11 | Metal | Aluminum Alloy | 13 A 23 A | Free Hanging (In-Line) | UL94 V-0 | ||||
 JAE Electronics | Black | W | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | Backshell | Copper Alloy | Silver | Receptacle Male Pins | Threaded | -55 C | 125 °C | Zinc | Metal | Aluminum Alloy | 13 A | Free Hanging (In-Line) | UL94 V-0 | 20 | 29 | ||||
JAE Electronics | Black | N (Normal) | 500 VAC | Synthetic Resin | Aluminum Alloy Zinc | 7 | Backshell | Copper Alloy | Silver | Receptacle Female Sockets | Threaded | -55 C | 125 °C | Zinc | Metal | Aluminum Alloy | 23 A | Free Hanging (In-Line) | UL94 V-0 | 15 | 20 | |||
JAE Electronics | Black | N (Normal) | 200 VAC | Synthetic Resin | Aluminum Alloy Zinc | 6 | Backshell | Copper Alloy | Silver | Receptacle Female Sockets | Threaded | -55 C | 125 °C | Zinc | 14S-6 | Metal | Aluminum Alloy | 13 A | Free Hanging (In-Line) | UL94 V-0 |
