9614 Series
Manufacturer: Belden Inc.
Beta
⌘K

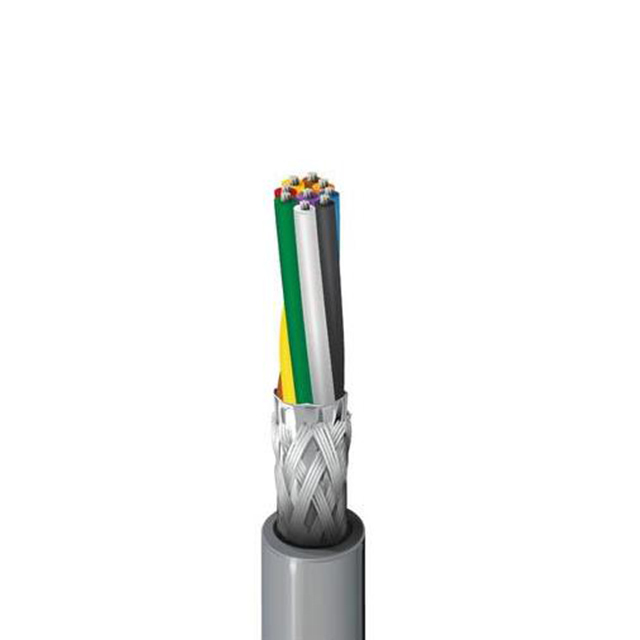

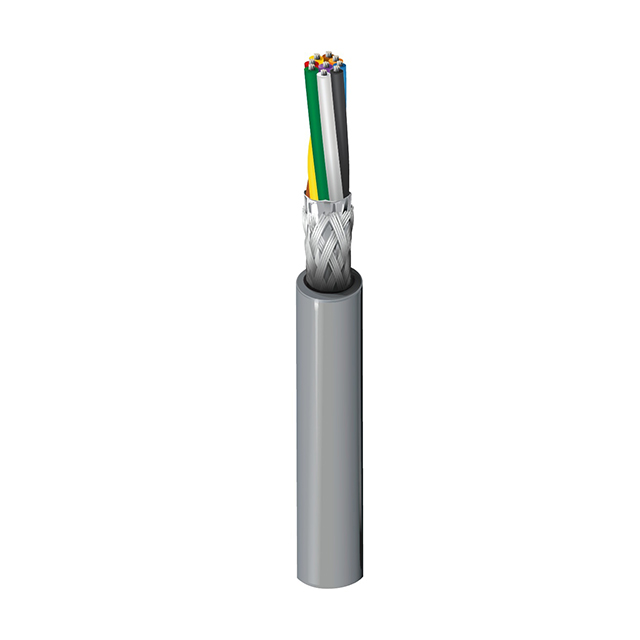

CABLE 9COND 24AWG CHROME SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Length [x] | Length [x] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Shield Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Ratings | Number of Conductors | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 6.48 mm | 0.255 in | 300 VDC | Computer | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Multi-Conductor | 0.035 in | 0.889 mm | Copper Tinned | Braid Foil | 24 AWG | 7 | 32 AWG | Chrome | UL Style 2464 | 9 | Poly-Vinyl Chloride (PVC) | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 6.48 mm | 0.255 in | 300 VDC | Computer | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.035 in | 0.889 mm | Copper Tinned | Braid Foil | 24 AWG | 7 | 32 AWG | Chrome | UL Style 2464 | 9 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
