PEH200 Series

Manufacturer: KEMET

Catalog

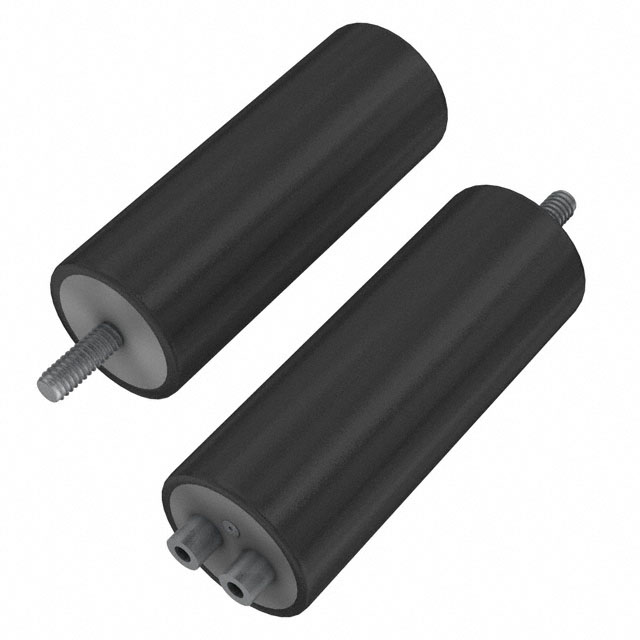

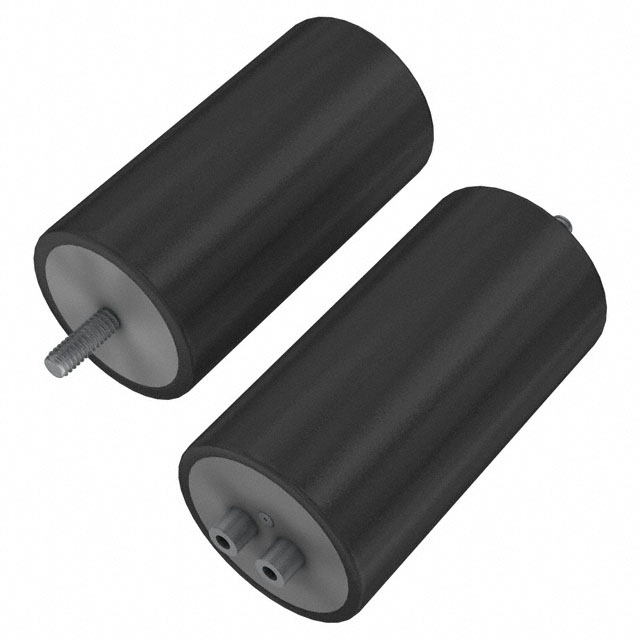

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 2200UF 500VDC 20% WITH MOUNTING STUD

Part	Capacitance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Mounting Type	Applications	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Package / Case	Lead Spacing	Lead Spacing	Tolerance	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance
KEMET PEH200ZV4220MB2	2.2 mF	500 V	76.6 mm	3.016 "	85 °C	-40 C	2000 Hrs	147 mm	5.787 in	Polar	Chassis Mount	General Purpose	11.1 A	25.1 A	58 mOhm	Radial Can - Screw Terminals	1.26 in	32 mm	20 %
KEMET PEH200YO4150MB2	1.5 mF	450 V	2.622 in		85 °C	-40 C	15000 Hrs			Polar	Chassis Mount	General Purpose	9.3 A	28.2 A	43 mOhm	Radial Can - Screw Terminals	0.866 "	22 mm	20 %	66.6 mm	4.213 in	107 mm
KEMET PEH200VO433AMB2	3.3 mF	400 V	2.622 in		85 °C	-40 C	2000 Hrs			Polar	Chassis Mount	General Purpose	11 A	26.7 A	29 mOhm	Radial Can - Screw Terminals	1.26 in	32 mm	20 %	66.6 mm	4.213 in	107 mm
KEMET PEH200ZV4220MU2	2.2 mF	500 V	76.6 mm	3.016 "	85 °C	-40 C	2000 Hrs	147 mm	5.787 in	Polar	Chassis Mount	General Purpose	11.1 A	25.1 A	62 mOhm	Radial Can - Screw Terminals	1.26 in	32 mm	20 %
KEMET PEH200VV4470MB2
KEMET PEH200OO427AMB2	2700 µF	420 V	2.622 in		85 °C	-40 C	15000 Hrs			Polar	Chassis Mount	General Purpose	12.4 A		24 mOhm	Radial Can - Screw Terminals	1.122 in	28.5 mm	20 %	66.6 mm	4.213 in	107 mm	12 mOhms
KEMET PEH200KV6220MB2	220 mF	40 V	76.6 mm	3.016 "	85 °C	-40 C	19000 Hrs	147 mm	5.787 in	Polar	Chassis Mount	General Purpose	34.4 A		5 mOhm	Radial Can - Screw Terminals	1.26 in	32 mm	20 %
KEMET PEH200YH3470MB2	470 µF	450 V	51.6 mm	2.031 in	85 °C	-40 C	2000 Hrs			Polar	Chassis Mount	General Purpose	4.5 A	17.5 A	120 mOhm	Radial Can - Screw Terminals	0.866 "	22 mm	20 %		2.972 in	75.5 mm
KEMET PEH200KC5150MB2		40 V	36.6 mm	1.441 in	85 °C	-40 C	10000 Hrs	74.5 mm	2.933 in	Polar	Chassis Mount	General Purpose	14.6 A		16 mOhm	Radial Can - Screw Terminals	0.512 "	13 mm	20 %				12 mOhms
KEMET PEH200MA4470MB2	4700 µF	63 V	36.6 mm	1.441 in	85 °C	-40 C	10000 Hrs			Polar	Chassis Mount	General Purpose	9 A		32 mOhm	Radial Can - Screw Terminals	0.512 "	13 mm	20 %		2.067 in	52.5 mm	21 mOhms
