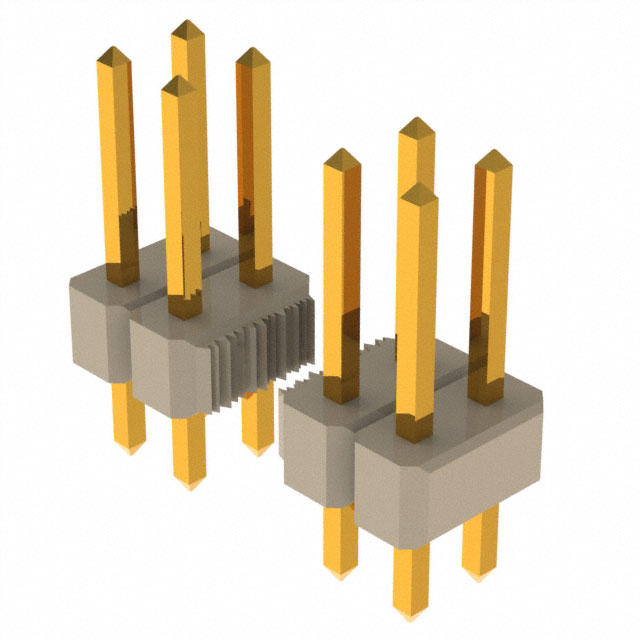

YMC21 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 42POS 2.54MM
| Part | Contact Finish Thickness - Mating | Contact Finish - Post | Operating Temperature (Max) | Operating Temperature (Min) | Contact Type | Overall Contact Length | Number of Rows | Insulation Material | Termination | Contact Length - Mating | Contact Length - Post | Contact Finish - Mating | Fastening Type | Connector Type | Row Spacing - Mating | Shrouding | Number of Positions | Contact Shape | Pitch - Mating | Number of Positions Loaded | Contact Material | Insulation Color | Insulation Height | Contact Finish Thickness - Post | Current Rating | Style | Mounting Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 30 µin | Gold | 250 °C | -65 °C | Male Pin | 0.45 in | 2 | Polyetheretherketone (PEEK) | Solder | 0.23 in | 0.12 in | Gold | Push-Pull | Breakaway Header | 0.1 in | Unshrouded | 42 | Square | 0.1 in | All | Beryllium Copper | Tan | 0.1 in | 10 µin | 3 A | Board Board or Cable | Through Hole | UL94 V-0 |
