2N7002 Series

Catalog

SOT-323, MOSFET

Part	Technology	Vgs (Max)	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Grade	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Package / Case	Qualification	Drain to Source Voltage (Vdss)

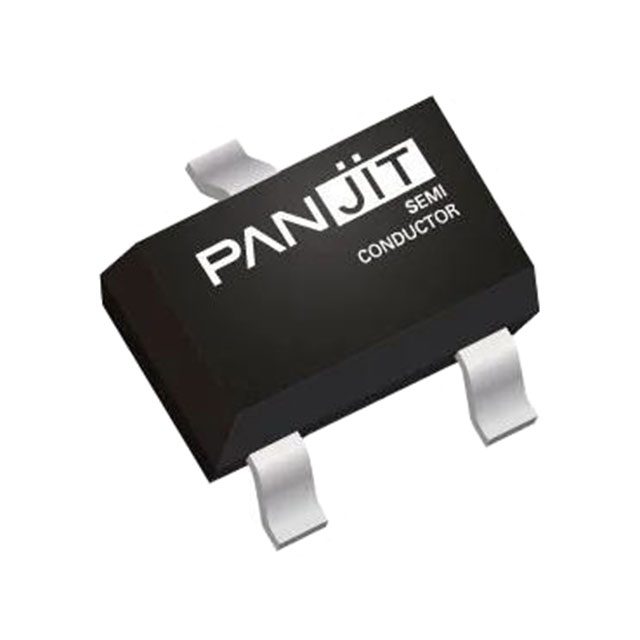

Panjit International Inc. 2N7002KW-AU_R1_000A1	MOSFET (Metal Oxide)	20 V	SOT-323	4.5 V 10 V	N-Channel	Automotive	24 pF	Surface Mount	0.8 nC	2.5 V	3 Ohm	150 °C	-55 °C	250 mA	350 mW	SC-70 SOT-323	AEC-Q101	60 V
Panjit International Inc. 2N7002KW_R1_00001	MOSFET (Metal Oxide)	20 V	SOT-323	4.5 V 10 V	N-Channel		35 pF	Surface Mount		2.5 V	3 Ohm	150 °C	-55 °C	115 mA	200 mW	SC-70 SOT-323		60 V
Panjit International Inc. 2N7002K_R1_00001	MOSFET (Metal Oxide)	20 V	SOT-23	4.5 V 10 V	N-Channel		35 pF	Surface Mount	0.8 nC	2.5 V	3 Ohm	150 °C	-55 °C	300 mA	350 mW	SC-59 SOT-23-3 TO-236-3		60 V

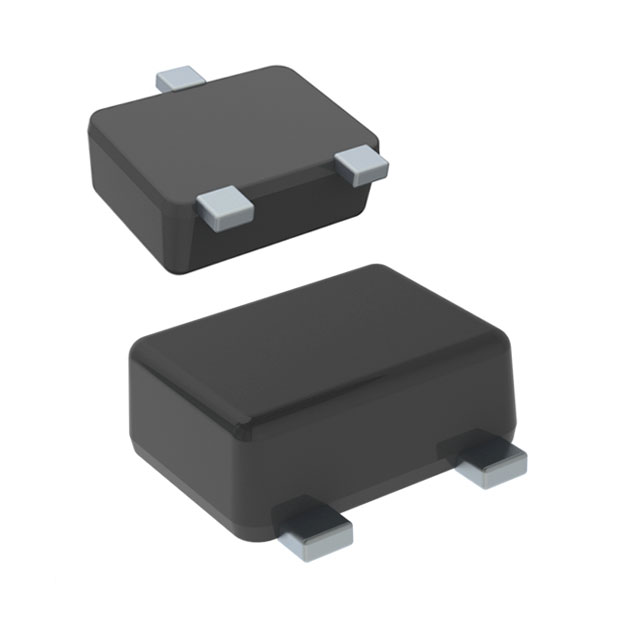

Panjit International Inc. 2N7002KTB_R1_00001	MOSFET (Metal Oxide)	20 V	SOT-523 Flat Leads	4.5 V 10 V	N-Channel		35 pF	Surface Mount		2.5 V	3 Ohm	150 °C	-55 °C	115 mA	200 mW	SC-89 SOT-490		60 V
Panjit International Inc. 2N7002K-AU_R1_000A2	MOSFET (Metal Oxide)	20 V	SOT-23	4.5 V 10 V	N-Channel	Automotive	35 pF	Surface Mount	0.8 nC	2.5 V	3 Ohm	150 °C	-55 °C	300 mA	500 mW	SC-59 SOT-23-3 TO-236-3	AEC-Q101	60 V
