842-068 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 68POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Flange Feature	Contact Material	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Color	Number of Positions/Bay/Row	Read Out	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Rows [custom]	Contact Finish	Number of Positions	Card Type	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Features

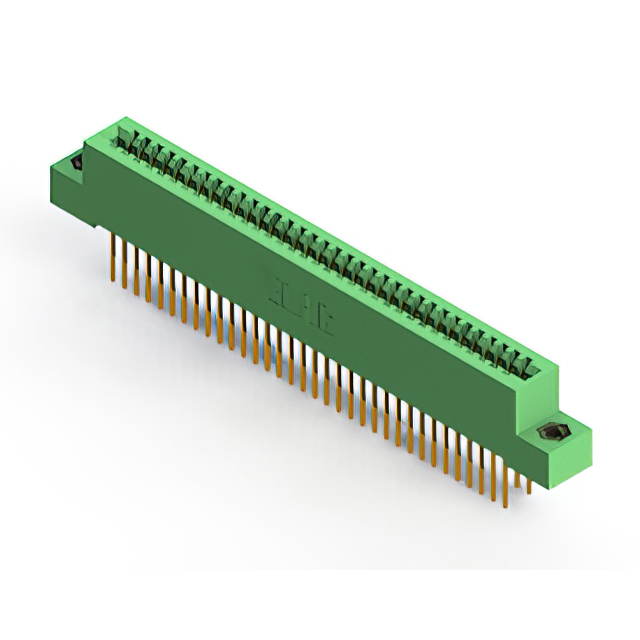

EDAC Inc. 842-068-523-208	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder

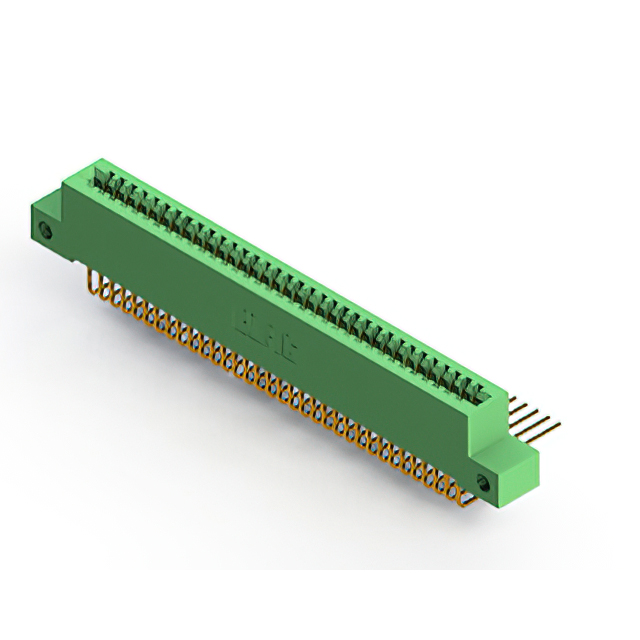

EDAC Inc. 842-068-558-212	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	Copper Alloy	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder	0.128 "	3.25 mm

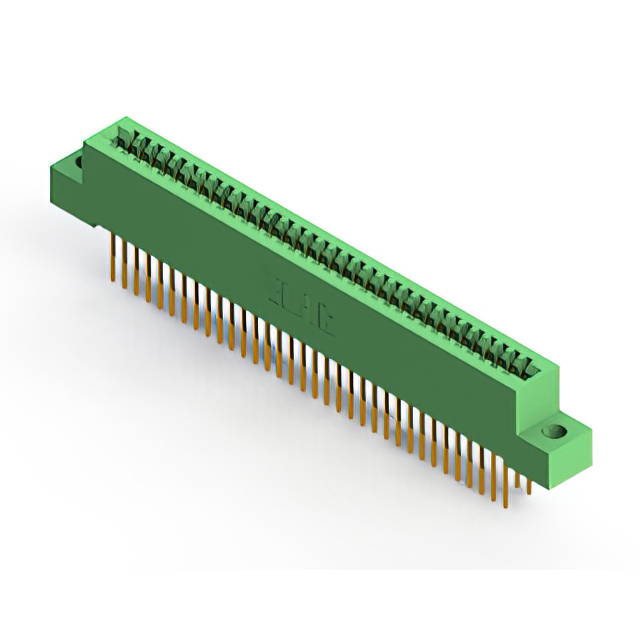

EDAC Inc. 842-068-523-204	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder	0.156 "	3.96 mm

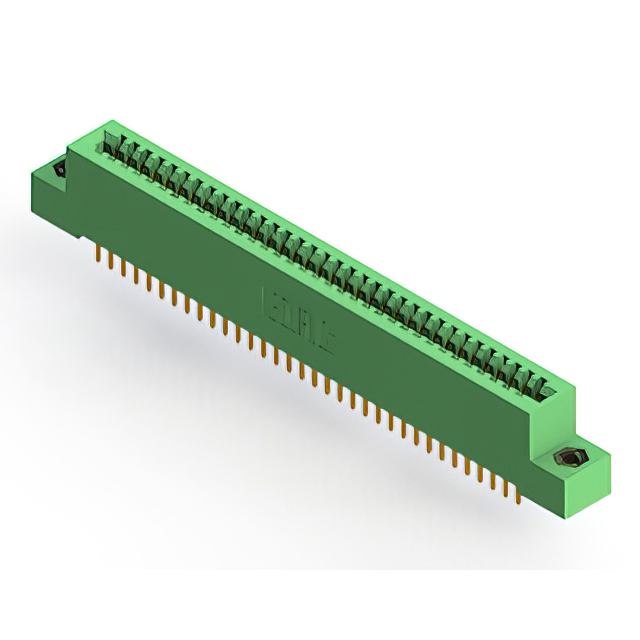

EDAC Inc. 842-068-521-208	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder

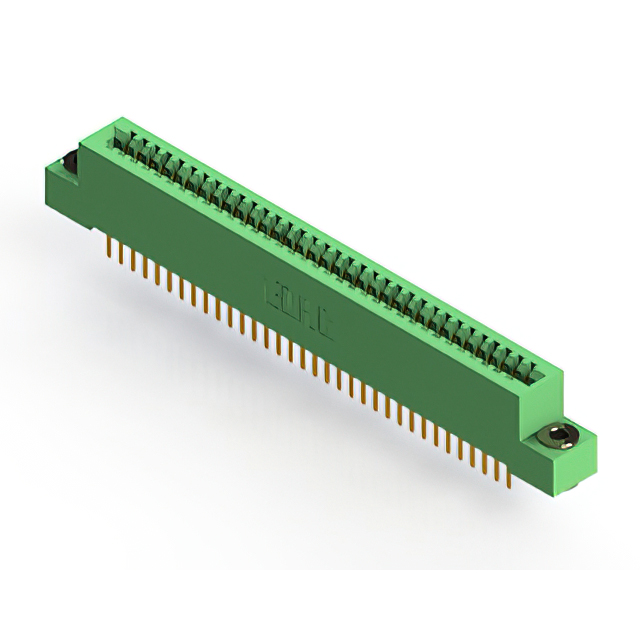

EDAC Inc. 842-068-520-203	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Floating Bobbin Flush Mount	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder	0.116 "	2.95 mm

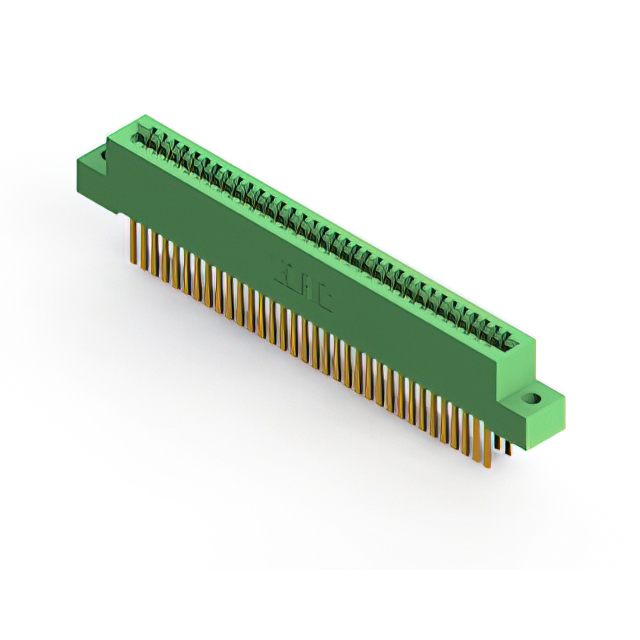

EDAC Inc. 842-068-544-202	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Wire Wrap	0.128 "	3.25 mm

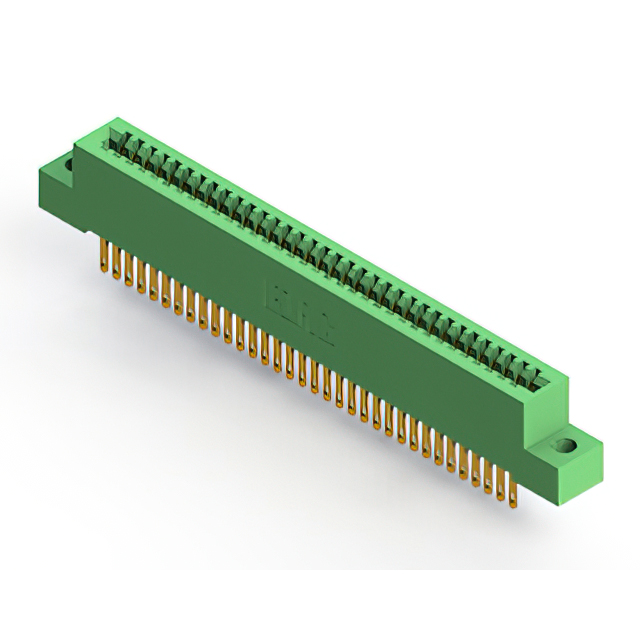

EDAC Inc. 842-068-500-204	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder Eyelet(s)	0.156 "	3.96 mm

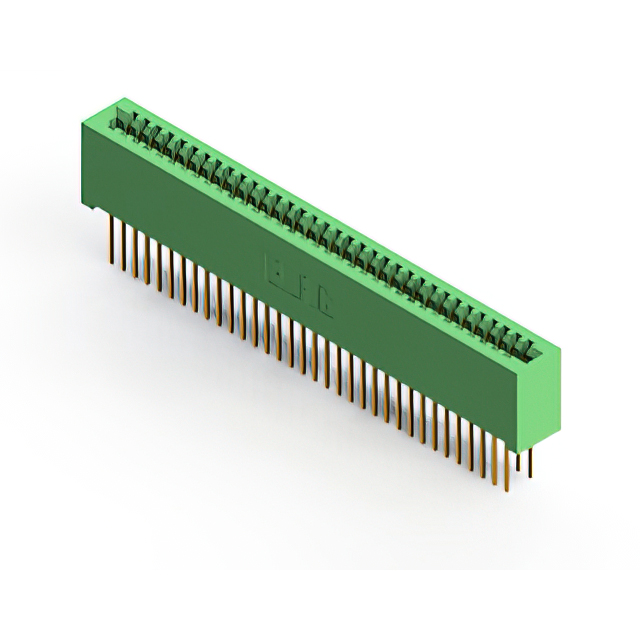

EDAC Inc. 842-068-542-201	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm		Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Wire Wrap

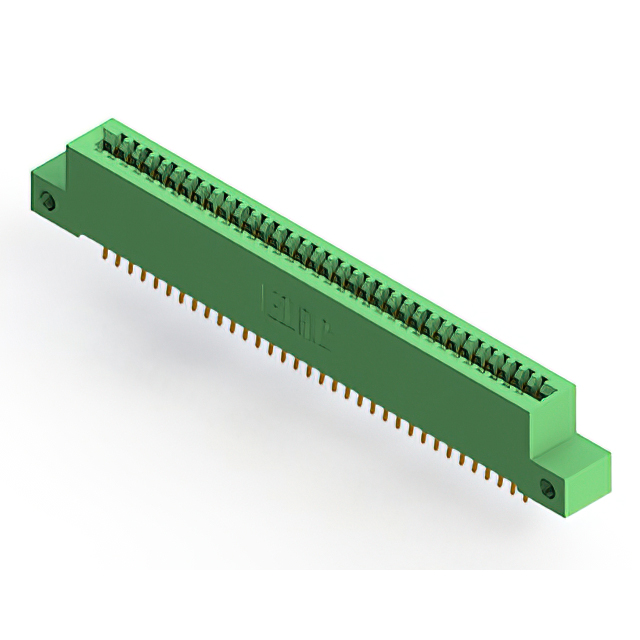

EDAC Inc. 842-068-556-212	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	Copper Alloy	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder	0.128 "	3.25 mm	Card Extender

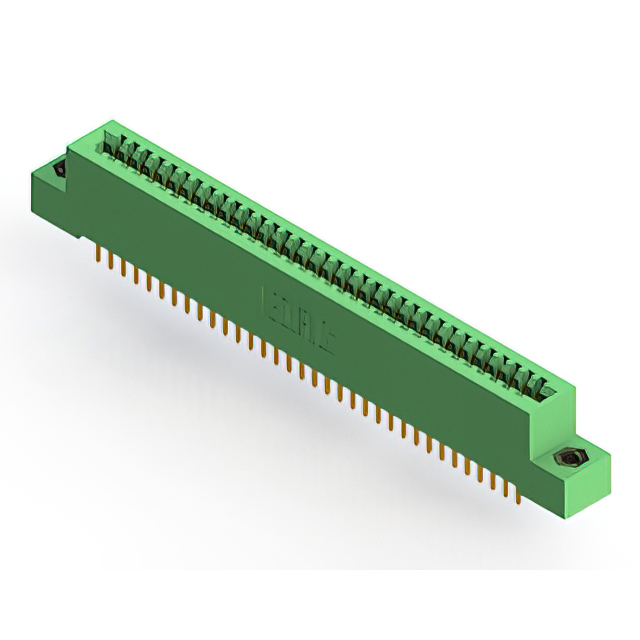

EDAC Inc. 842-068-521-207	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	34	Dual	Cantilever	125 °C	-40 C	Female	2	Gold	68 positions	Non Specified - Dual Edge	Solder
