1717011 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
HEADERS & WIRE HOUSINGS EP CONN.HDR ASSY 4/5P BLACK (NO.3 POST)
| Part | Applications | Material Flammability Rating | Contact Shape | Overall Contact Length | Overall Contact Length | Contact Finish - Post | Style | Contact Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Fastening Type | Number of Rows | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Connector Type | Voltage Rating | Current Rating (Amps) | Insulation Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | UL94 V-0 | Square | 14.4 mm | 0.567 in | Tin | Board to Cable/Wire | Male Pin | 0.362 in | 9.2 mm | 3.96 mm | 0.156 in | 5 | Solder | 3.7 mm | 0.146 " | Black | Shrouded - 1 Wall | 105 ░C | -25 °C | Brass | Locking Ramp | 1 | 4 | 0.303 in | 7.7 mm | Header | 250 VAC | 7.5 A | Polybutylene Terephthalate (PBT) | Through Hole |
 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | UL94 V-0 | Square | 14.4 mm | 0.567 in | Tin | Board to Cable/Wire | Male Pin | 0.362 in | 9.2 mm | 3.96 mm | 0.156 in | 5 | Solder | 3.7 mm | 0.146 " | Natural | Shrouded - 1 Wall | 105 ░C | -25 °C | Brass | Locking Ramp | 1 | 4 | 0.303 in | 7.7 mm | Header | 250 VAC | 7.5 A | Polybutylene Terephthalate (PBT) | Through Hole |

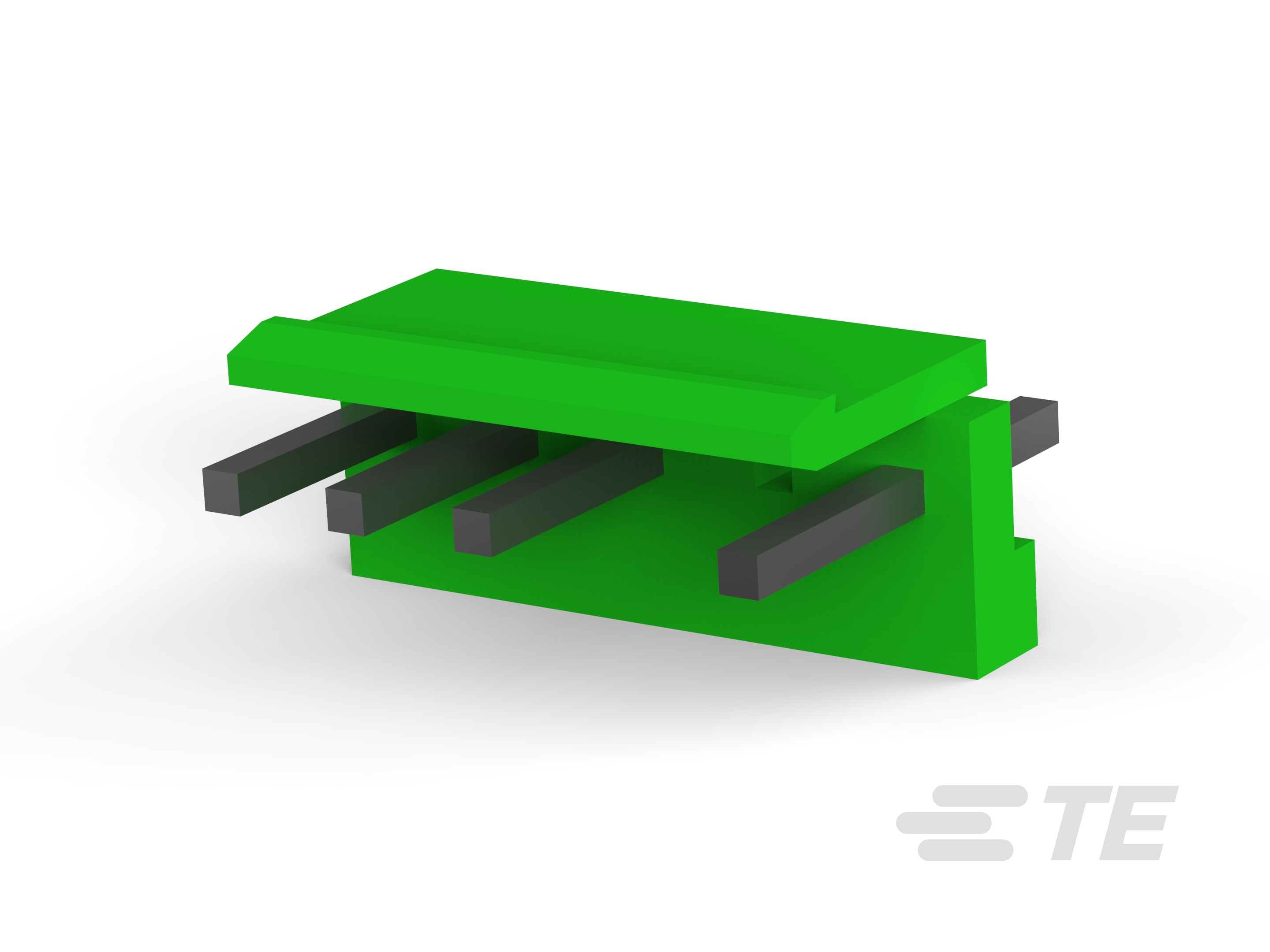

 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | UL94 V-0 | Square | 14.4 mm | 0.567 in | Tin | Board to Cable/Wire | Male Pin | 0.362 in | 9.2 mm | 3.96 mm | 0.156 in | 5 | Solder | 3.7 mm | 0.146 " | Green | Shrouded - 1 Wall | 105 ░C | -25 °C | Brass | Locking Ramp | 1 | 4 | 0.303 in | 7.7 mm | Header | 250 VAC | 7.5 A | Polybutylene Terephthalate (PBT) | Through Hole |
