ESP8266 Series
Manufacturer: Espressif Systems
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
WIFI DEVELOPMENT TOOLS - 802.11 ESP8266 GENERAL DEVELOPMENT KIT, EMBEDS ESP-WROOM-02U AND FEMALE HEADER CONNECTOR ON THE BOARD.
| Part | For Use With/Related Products | Supplied Contents | Frequency | Utilized IC / Part | Type | Contents | Note | Current - Transmitting (Min) | Current - Transmitting (Max) | Package / Case | Mounting Type | GPIO Count | RF Family/Standard | Serial Interfaces | Data Rate (Max) | Protocol | Package Width | Package Name | Package Length | Current - Receiving (Min) | Current - Receiving (Max) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Power - Output | Sensitivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

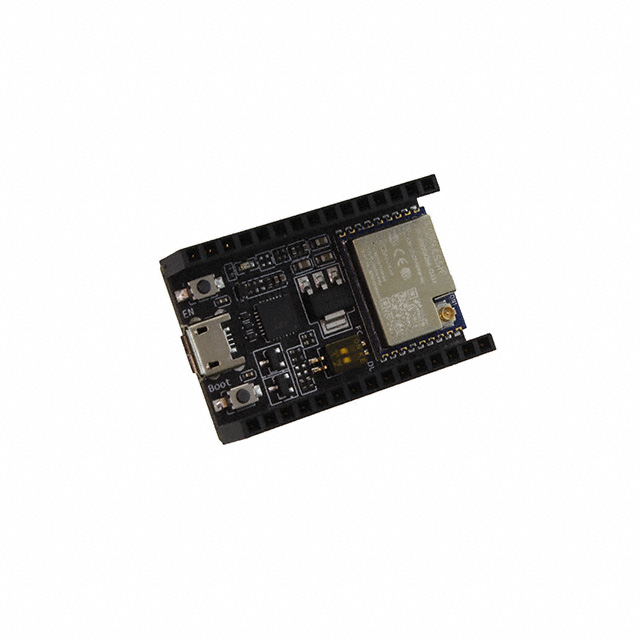

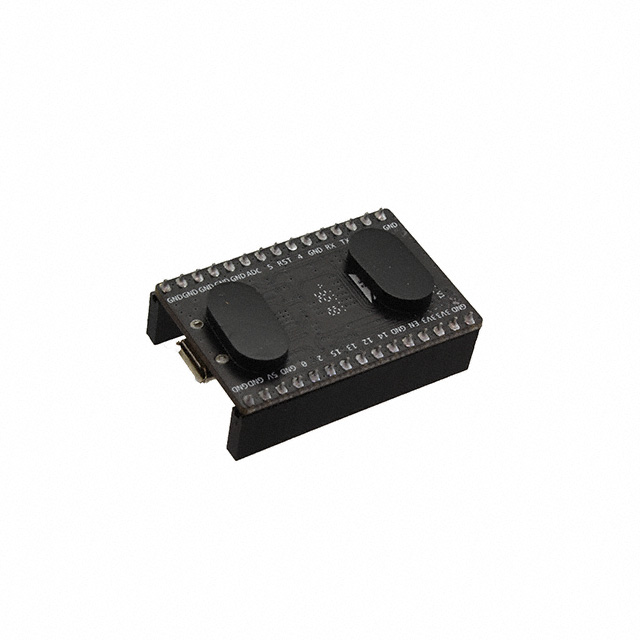

 Espressif Systems | ESP-WROOM-02U ESP8266 | Board(s) | 2.4 GHz | ESP-WROOM-02U ESP8266 | 802.11 b/g/n (Wi-Fi WiFi WLAN) Transceiver | Board | |||||||||||||||||||

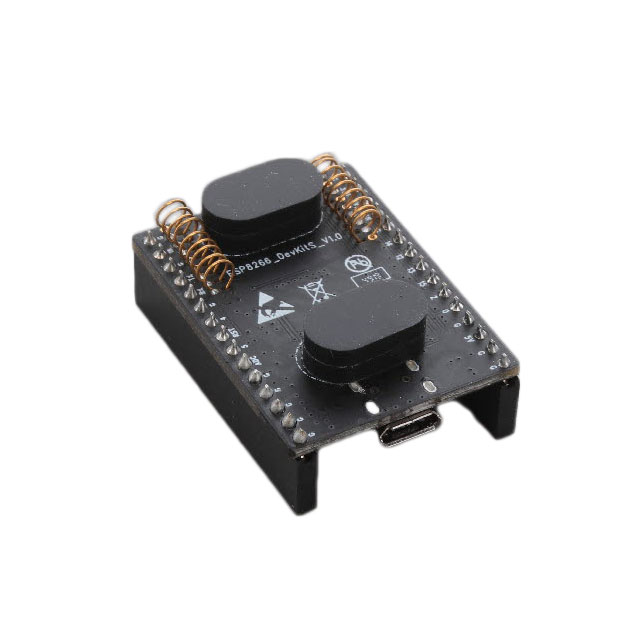

 Espressif Systems | ESP-WROOM-02 | ESP-WROOM-02 | Programmer | Board | Not recommended for mass production use | ||||||||||||||||||||

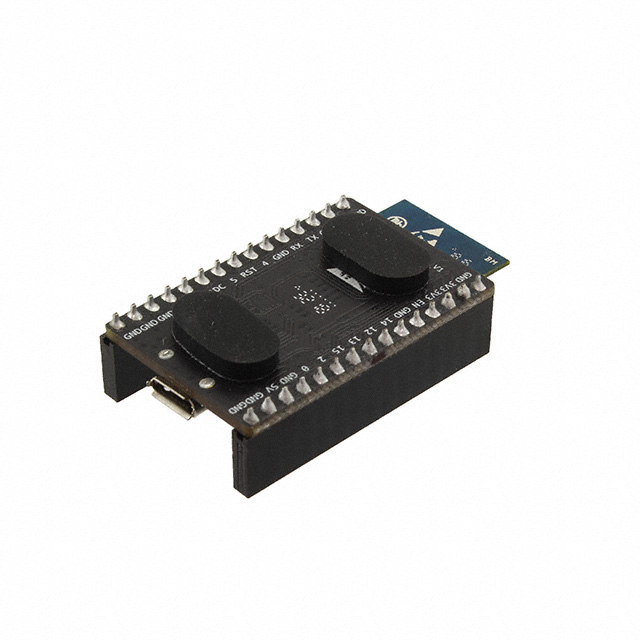

 Espressif Systems | ESP-WROOM-02D ESP8266 | Board(s) | 2.4 GHz | ESP-WROOM-02D ESP8266 | 802.11 b/g/n (Wi-Fi WiFi WLAN) Transceiver | Board | |||||||||||||||||||

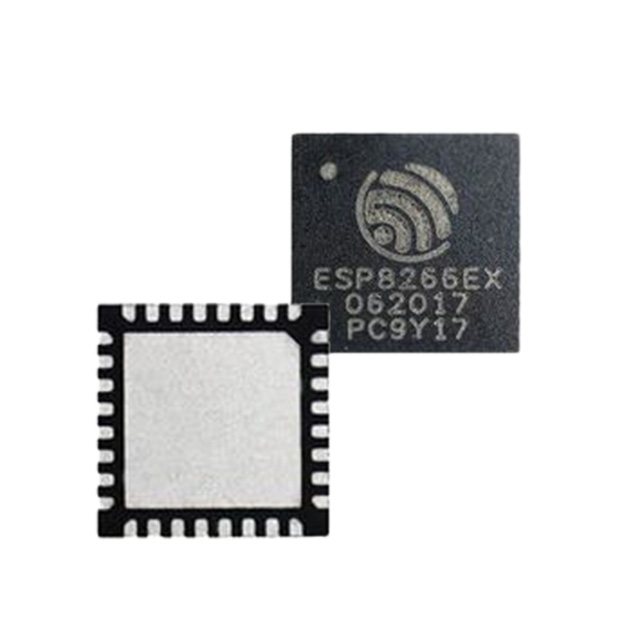

 Espressif Systems | 2.4 GHz | TxRx + MCU | 120 mA | 170 mA | 32-VFQFN Exposed Pad | Surface Mount | 8 | WiFi | I2C I2S SPI UART | 54 Mbps | 802.11b 802.11g 802.11n | 5 mm | 32-QFN | 5 mm | 50 mA | 56 mA | 2.5 V | 3.6 V | 20 dBm | -91 dBm |
