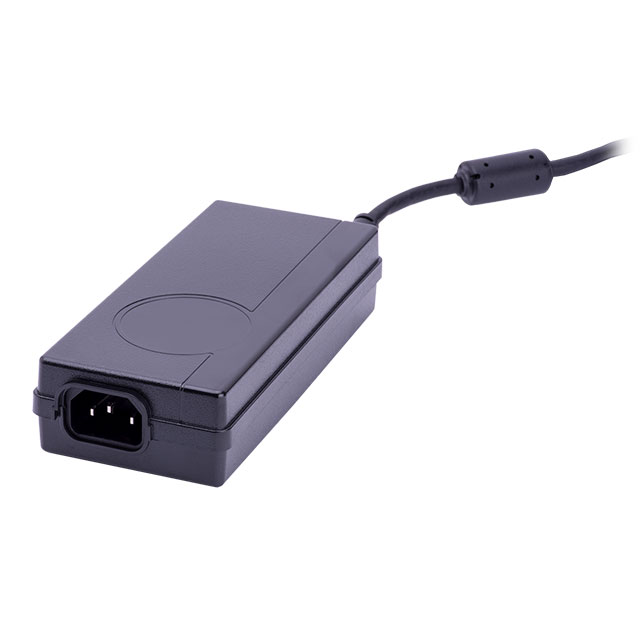

ME90A1251 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 90W

Part	Cord Length	Cord Length	Region Utilized	Voltage - Output	Form	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization	Power (Watts)	Input Type	Approval Agency	Efficiency	Output Connector
SL POWER / Advanced Energy ME90A1251Q01	1.5 m	59 in	International	12 V	Desktop (Class II)	-20 ░C	50 °C	IEC 320-C18	2.58 in	150 mm	34 mm	65.5 mm	5.91 in	1.34 "	210 mW	264 VAC	90 VAC	Medical	7.5 A	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	90 W	Cord (Sold Separately)	CE	Level VI
SL POWER / Advanced Energy ME90A1251N01	1.5 m	59 in	International	12 V	Desktop (Class II)	-20 ░C	50 °C	IEC 320-C8	2.58 in	150 mm	34 mm	65.5 mm	5.91 in	1.34 "	210 mW	264 VAC	90 VAC	Medical	7.5 A			Rectangular		90 W	Cord (Sold Separately)	CE	Level VI	6 Position
SL POWER / Advanced Energy ME90A1251F02

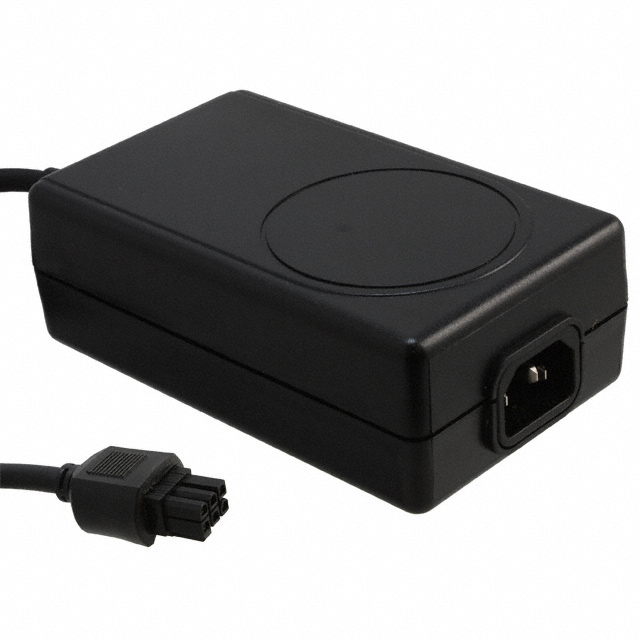

SL POWER / Advanced Energy ME90A1251F01	1.15 m	45.3 in	International	12 V	Desktop (Class I)	-20 ░C	50 °C	IEC 320-C14	2.58 in	150.5 mm	34 mm	65.5 mm	5.9 "	1.34 "	210 mW	240 VAC	100 VAC	Medical	7.5 A			Rectangular		90 W	Cord (Sold Separately)	CE	Level VI	6 Position
