DC0022/02 Series

Catalog

THERM PAD 38.1X22.86MM RED

Part	Shelf Life Start	Shelf Life	Thickness	Thickness	Type	Usage	Thermal Conductivity	Shape	Material	Color	Outline [y]	Outline [x]	Adhesive	Backing, Carrier	Thickness
t-Global Technology DC0022/02-TG-A482K-0.1-0	Date of Purchase	24 Months	0.1 mm	0.0039 in	Die-Cut Pad Sheet	Power Module	2.3 W/m-K	Rectangular	Silicone	Red	22.86 mm	38.1 mm

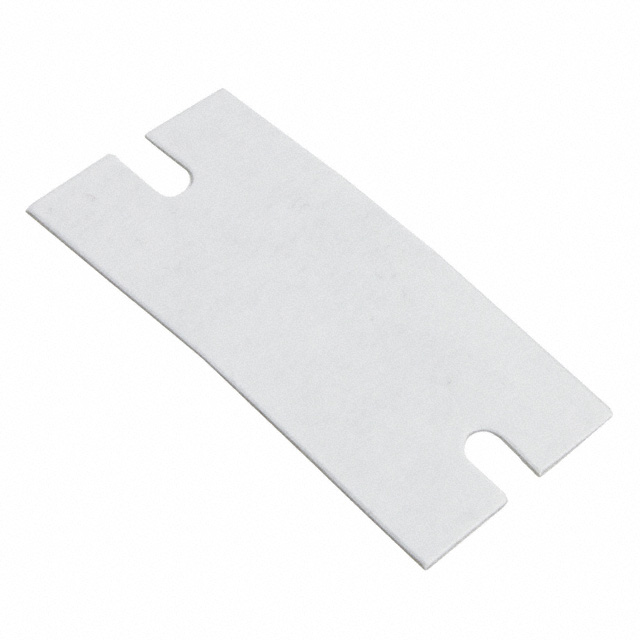

t-Global Technology DC0022/02-TI900-0.12-2A		24 Months	5 mils	0.005 in	Die-Cut Pad Sheet	Power Module	1.8 W/m-K	Rectangular	Silicone	White	22.86 mm	38.1 mm	Adhesive - Both Sides	Viscose

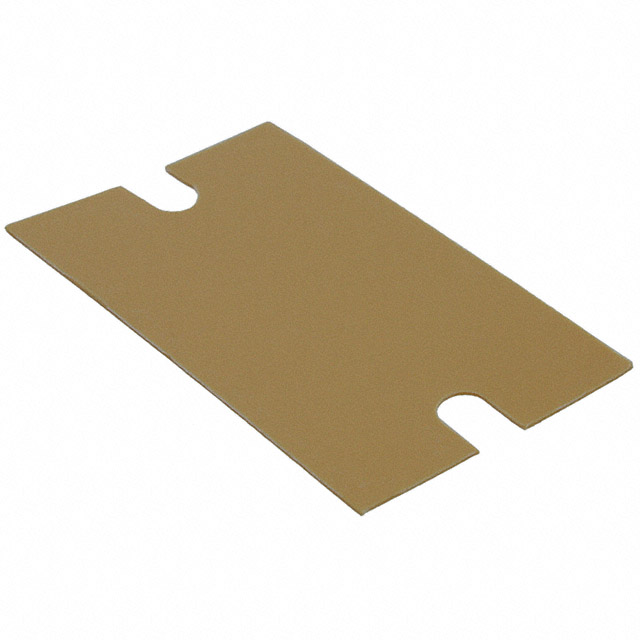

t-Global Technology DC0022/02-TG-A373F-0.25-2A		12 Months	10 mils		Die-Cut Pad Sheet	Power Module	1.4 W/m-K	Rectangular		Yellow	22.86 mm	38.1 mm	Adhesive - Both Sides		0.01 in

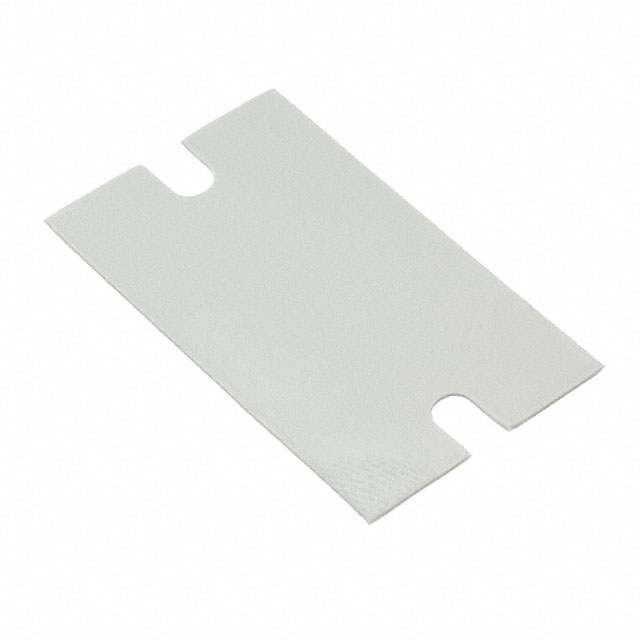

t-Global Technology DC0022/02-TG-A486G-0.3-2A	Date of Purchase	12 Months	0.305 mm	0.012 in	Die-Cut Pad Sheet	Power Module	6 W/m-K	Rectangular		Gray	22.86 mm	38.1 mm	Adhesive - Both Sides
