C4BTHB Series

Manufacturer: KEMET

Catalog

CAP, FILM, PP, 20UF, 600VDC, PANEL ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Voltage Rating - DC	Lead Spacing	Lead Spacing	Applications	Tolerance	ESR (Equivalent Series Resistance)	Voltage Rating - AC	Package / Case	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

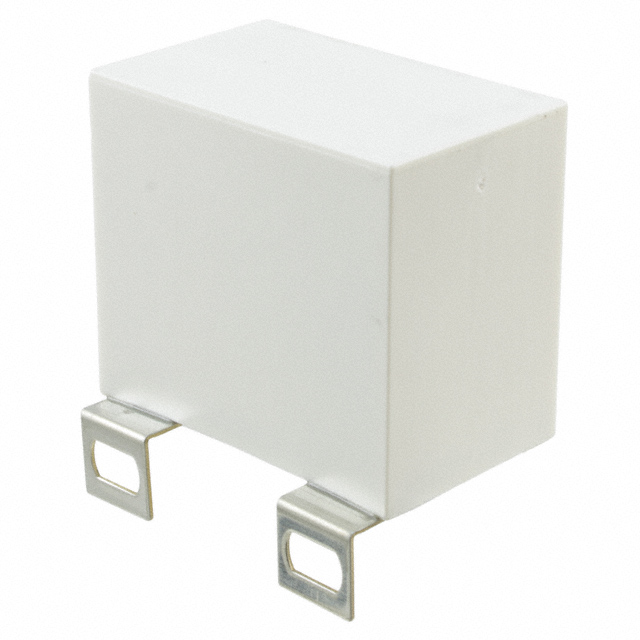

KEMET C4BTHBX5200ZANJ	85 °C	-40 C	20 µF	57.5 mm	1.378 in	35 mm	2.264 in	Chassis Mount	1.969 in	50 mm	Screw Terminals	600 V	41 mm	1.614 in	DC Filtering DC Link High Frequency Switching	5 %	1.7 mOhm	330 V	Rectangular Box	Polypropylene (PP) Metallized

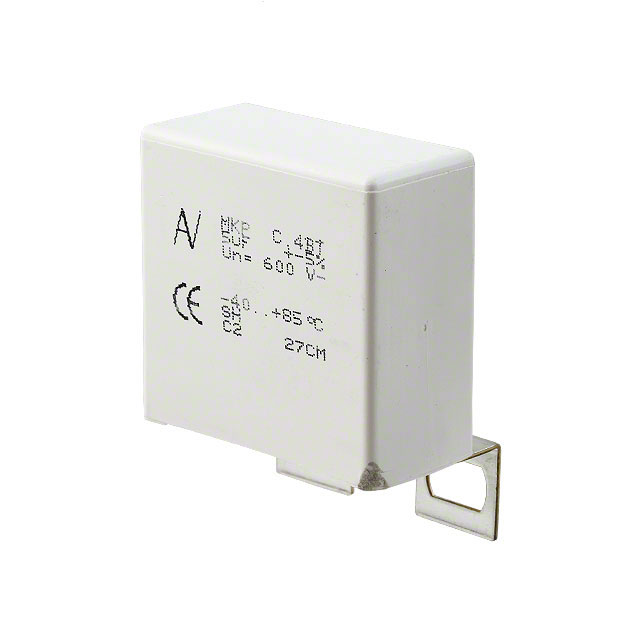

KEMET C4BTHBX4500ZAFJ	85 °C	-40 C	5 µF		20 mm		41.5 mm	Chassis Mount	1.575 in	40 mm	Screw Terminals	600 V	25.5 mm	1.004 in	DC Filtering DC Link High Frequency Switching	5 %	2.9 mOhms	330 V	Rectangular Box	Polypropylene (PP) Metallized	1.634 in	0.787 in
KEMET C4BTHBX5100ZALJ	85 °C	-40 C	10 µF		30 mm		42 mm	Chassis Mount			Screw Terminals	600 V	25.5 mm	1.004 in	DC Filtering DC Link High Frequency Switching	5 %	1.6 mOhm	330 V	Rectangular Box	Polypropylene (PP) Metallized	1.654 in	1.181 in	1.772 "	45 mm
