4420P Series

Catalog

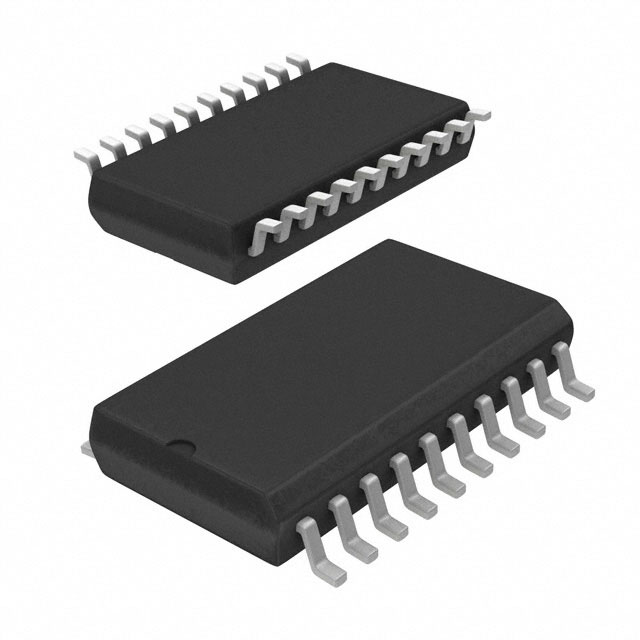

RES ARRAY 10 RES 4.7K OHM 20SOIC

Part	Resistance (Ohms) [custom]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power Per Element	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Circuit Type	Mounting Type	Resistor-Ratio-Drift	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Resistors	Temperature Coefficient	Tolerance	Resistance (Ohms)	Applications	Number of Channels	Technology	Type	Voltage - Rated	Filter Order	Attenuation Value	Values [custom]	Values [custom]	Height [z]	Height [z]	Values	Resistance - Channel (Ohms)
Bourns Inc. 4420P-T01-472	4.7 kOhms	20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	160 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Isolated	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	10	100 ppm/°C	2 %
Bourns Inc. 4420P-2-203		20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	160 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Bussed	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	19	100 ppm/°C	2 %	20 kOhms
Bourns Inc. 4420P-2-331LF	330 Ohms	20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	160 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Bussed	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	19	100 ppm/°C	2 %
Bourns Inc. 4420P-3-331/471	330 Ohms 470 Ohms	20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	115 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Dual Terminator	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	36	100 ppm/°C	2 %
Bourns Inc. 4420P-601-250/500L			7.5 mm	0.295 in	0.51 "	12.95 mm		20-SOIC (0.295" 7.50mm Width)	10 °C	85 °C		Surface Mount								General Purpose	8	RC (T-Type)	Low Pass	25 VDC	1st	-3 dB	50 pF	25 Ohms	2.9 mm	0.114 "
Bourns Inc. 4420P-601-820/201			7.5 mm	0.295 in	0.51 "	12.95 mm		20-SOIC (0.295" 7.50mm Width)	10 °C	85 °C		Surface Mount								General Purpose	8	RC (T-Type)	Low Pass	25 VDC	1st				2.9 mm	0.114 "	82 Ohms 200 pF	82 Ohms
Bourns Inc. 4420P-T01-121		20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	160 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Isolated	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	10	100 ppm/°C	2 %	120 Ohms
Bourns Inc. 4420P-T02-500	50 Ohms	20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	160 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Bussed	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	19	100 ppm/°C	2 %
Bourns Inc. 4420P-1-391		20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	160 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Isolated	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	10	100 ppm/°C	2 %	390 Ohms
Bourns Inc. 4420P-1-471		20-SOL	7.5 mm	0.295 in	0.51 "	12.95 mm	160 mW	20-SOIC (0.295" 7.50mm Width)	-55 C	125 °C	Isolated	Surface Mount	50 ppm/°C	2.9 mm	0.114 "	10	100 ppm/°C	2 %	470 Ohms
