325-031 Series
Manufacturer: EDAC Inc.
Beta
⌘K

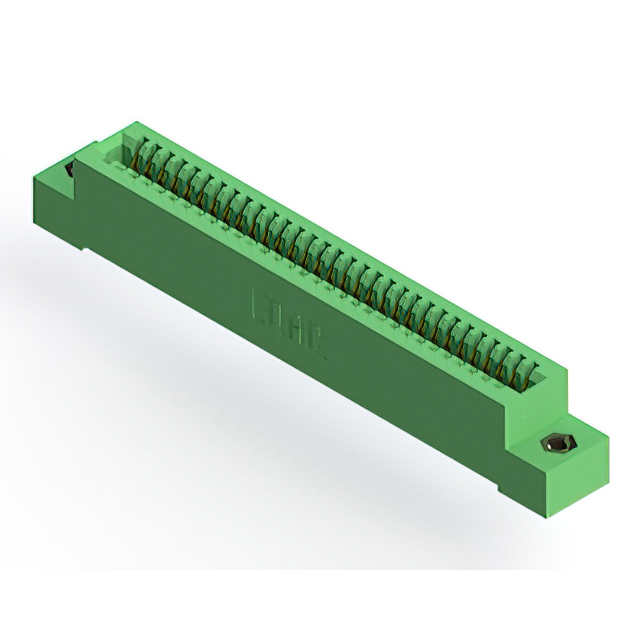

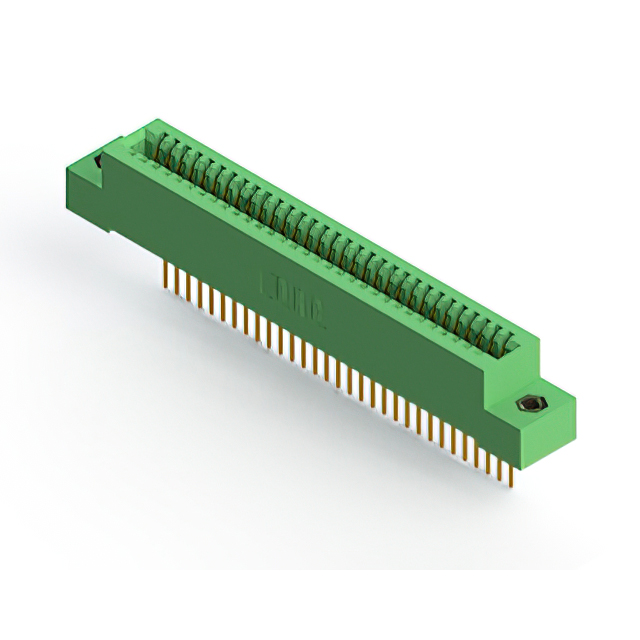

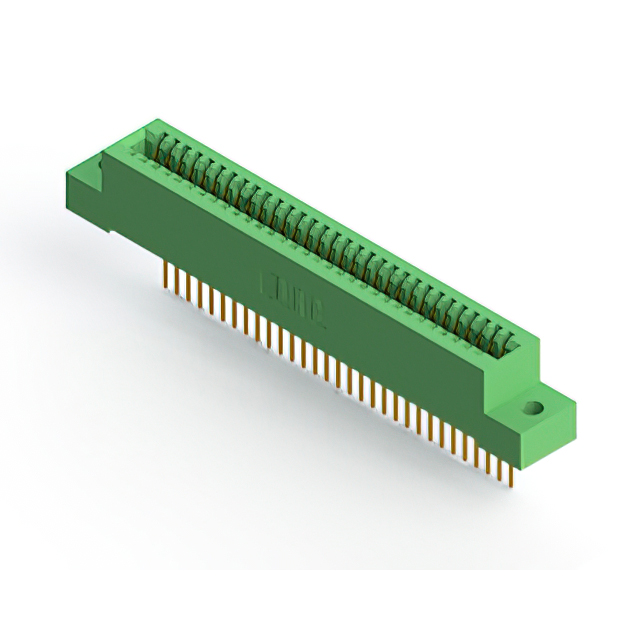

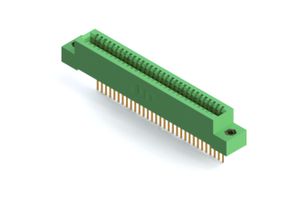

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 31 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Mounting Type | Read Out | Contact Finish | Number of Rows | Card Type | Flange Feature | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Number of Positions [custom] | Card Thickness | Card Thickness | Contact Material | Termination | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Single | Gold | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 31 | 0.1 " | 2.54 mm | 31 | 3.18 mm | 0.125 in | Copper Alloy | Wire Wrap | Green | Cantilever | 0.25 Ám | 10 Áin | Female | -65 ░C | 125 °C |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Single | Gold | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 31 | 0.1 " | 2.54 mm | 31 | 3.18 mm | 0.125 in | Copper Alloy | Solder | Green | Cantilever | 0.25 Ám | 10 Áin | Female | -65 ░C | 125 °C |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Single | Gold | 1 | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 31 | 0.1 " | 2.54 mm | 31 | 3.18 mm | 0.125 in | Copper Alloy | Solder | Green | Cantilever | 0.25 Ám | 10 Áin | Female | -65 ░C | 125 °C |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Single | Gold | 1 | Non Specified - Single Edge | 31 | 0.1 " | 2.54 mm | 31 | 3.18 mm | 0.125 in | Copper Alloy | Wire Wrap | Green | Cantilever | 0.25 Ám | 10 Áin | Female | -65 ░C | 125 °C | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Single | Gold | 1 | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 31 | 0.1 " | 2.54 mm | 31 | 3.18 mm | 0.125 in | Copper Alloy | Wire Wrap | Green | Cantilever | 0.25 Ám | 10 Áin | Female | -65 ░C | 125 °C |
