HDSP-562 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISPLAY 7SEG 0.56" DBL GRN 18DIP
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Power Dissipation (Max) [Max] | Voltage - Forward (Vf) (Typ) | Display Type | Wavelength - Peak | Package / Case | Package / Case | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Common Pin | Color | Number of Characters | Millicandela Rating | Current - Test | Digit/Alpha Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

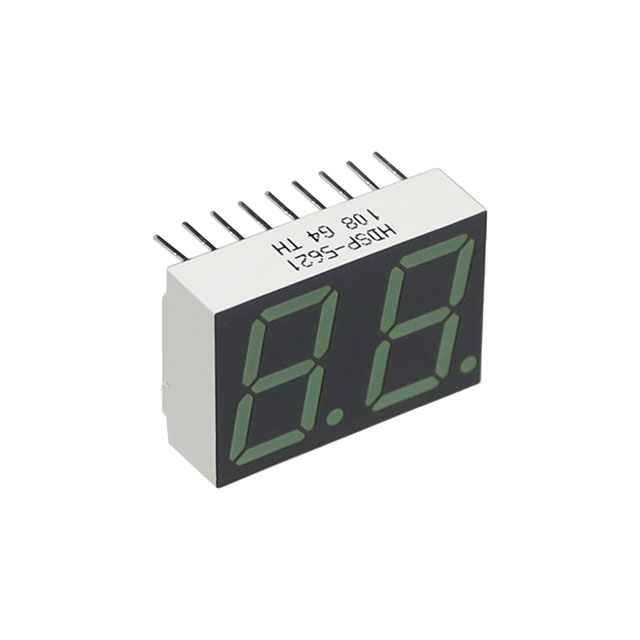

 Broadcom Limited | 0.315 " | 0.99 in | 25.15 mm | 17.02 mm | 0.67 in | 8 mm | 105 mW | 2.1 V | 7-Segment | 566 nm | 15.24 mm | 0.6 in | 18-DIP | 0.56 in | 14.22 mm | Common Cathode | Green | 2 | 2.5 mcd | 10 mA | |

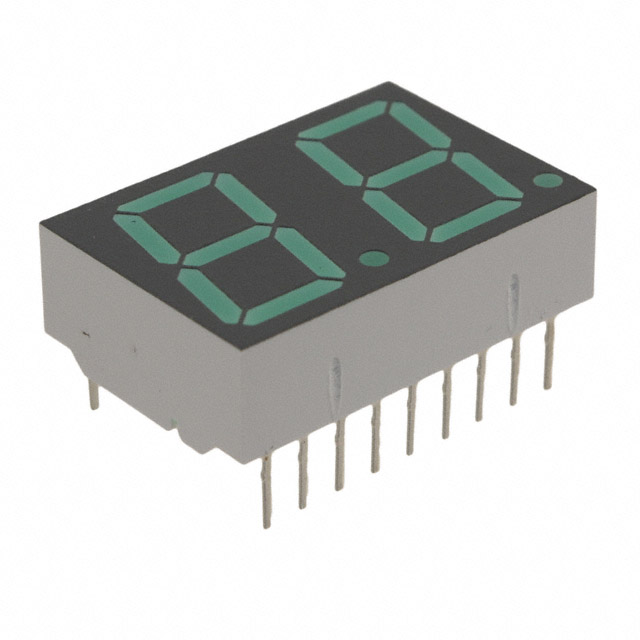

 Broadcom Limited | 0.315 " | 0.99 in | 25.15 mm | 17.02 mm | 0.67 in | 8 mm | 105 mW | 2.1 V | 7-Segment | 566 nm | 15.24 mm | 0.6 in | 18-DIP | 14.2 mm | Common Anode | Green | 2 | 2.5 mcd | 10 mA | 0.56 in |
