54201 Series

Catalog

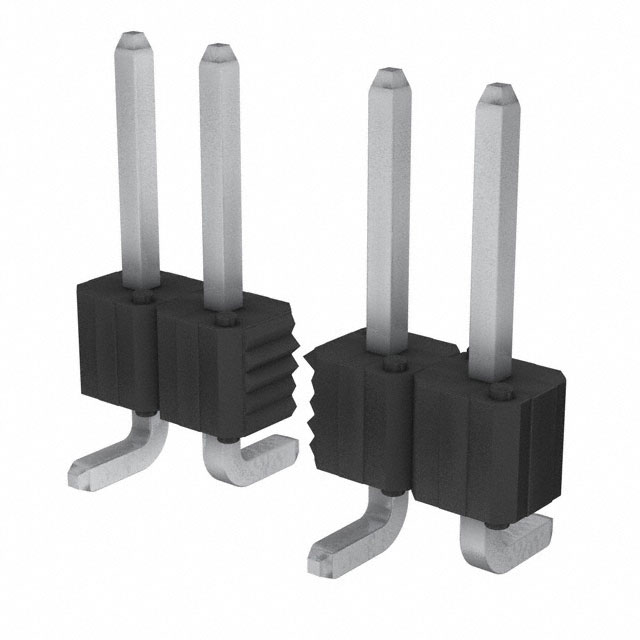

CONN HEADER SMD 4POS 2.54MM

Part	Number of Positions Loaded	Insulation Color	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Material	Shrouding	Connector Type	Contact Shape	Features	Contact Finish - Mating	Contact Length - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insulation Material

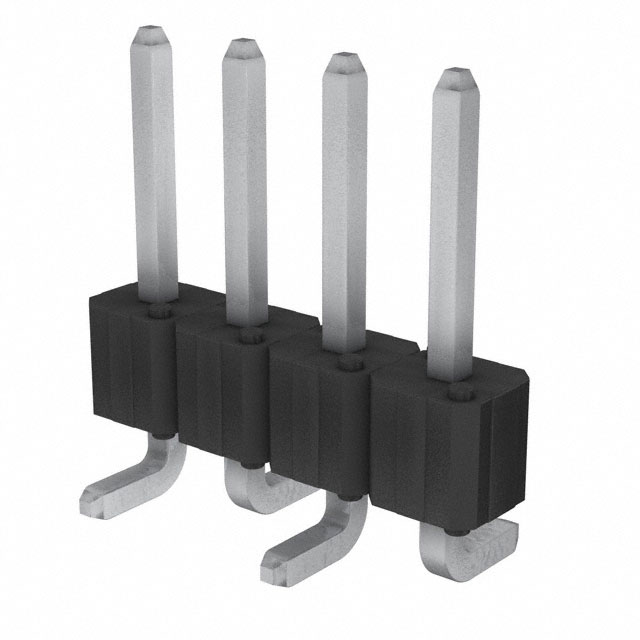

Amphenol ICC (FCI) 54201-T0804LF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Tin	0.23 in	5.84 mm	2.54 çm	100 çin	Surface Mount	1	Male Pin	2.54 µm	100 µin	4	Phosphor Bronze	Unshrouded	Header	Square
Amphenol ICC (FCI) 54201-G08-02A	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm		0.23 in	5.84 mm	0.76 Ám	30 Áin	Surface Mount	1	Male Pin			2	Phosphor Bronze	Unshrouded	Header	Square	Pick and Place	Gold or Gold GXT™

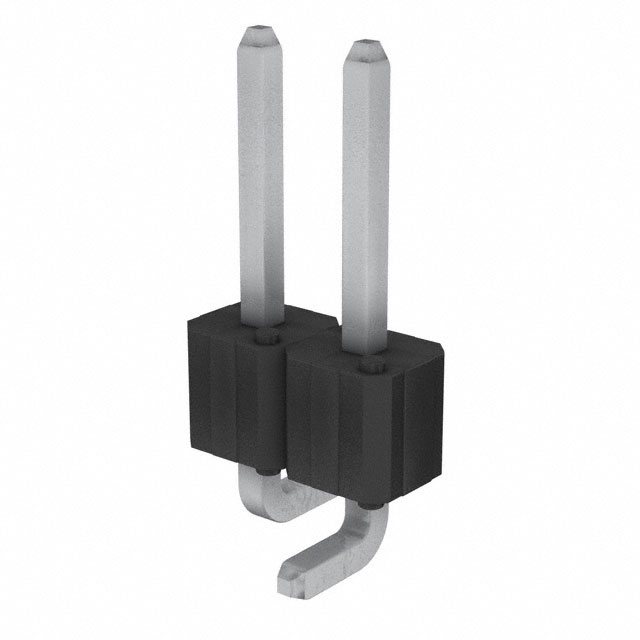

Amphenol ICC (FCI) 54201-T0802LF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Tin	0.23 in	5.84 mm	2.54 çm	100 çin	Surface Mount	1	Male Pin	2.54 µm	100 µin	2	Phosphor Bronze	Unshrouded	Header	Square
Amphenol ICC (FCI) 54201-S08-17	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm		0.23 in	5.84 mm	0.38 µm	15 µin	Surface Mount	1	Male Pin				Phosphor Bronze	Unshrouded	Header	Square		Gold or Gold GXT™
Amphenol ICC (FCI) 54201-S3008AA05LF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Tin	0.318 "		0.38 µm	15 µin	Surface Mount	1	Male Pin	2.54 µm	100 µin	8	Phosphor Bronze	Unshrouded	Header	Square	Pick and Place	Gold or Gold GXT™	8.08 mm
Amphenol ICC (FCI) 54201-T0810ALF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Tin	0.23 in	5.84 mm	2.54 çm	100 çin	Surface Mount	1	Male Pin	2.54 µm	100 µin	10	Phosphor Bronze	Unshrouded	Header	Square	Pick and Place
Amphenol ICC (FCI) 54201-S0804ALF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Tin	0.23 in	5.84 mm	0.38 µm	15 µin	Surface Mount	1	Male Pin	2.54 µm	100 µin	4	Phosphor Bronze	Unshrouded	Header	Square	Pick and Place	Gold or Gold GXT™
Amphenol ICC (FCI) 54201-G0803PHLF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Tin	0.23 in	5.84 mm	0.76 Ám	30 Áin	Surface Mount	1	Male Pin	2.54 µm	100 µin		Phosphor Bronze	Unshrouded	Header	Square	Pick and Place	Gold or Gold GXT™
Amphenol ICC (FCI) 54201-F3002LF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Gold	0.318 "		0.051 µm	2 µin	Surface Mount	1	Male Pin	0.05 µm	1.97 µin	2	Phosphor Bronze	Unshrouded	Breakaway Header	Square	Pick and Place	Gold	8.08 mm	125 °C	-65 ░C	3 A	Thermoplastic
Amphenol ICC (FCI) 54201-G3002LF	All	Black	Solder	UL94 V-0	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	Tin	0.318 "		0.76 Ám	30 Áin	Surface Mount	1	Male Pin	2.54 µm	100 µin	2	Phosphor Bronze	Unshrouded	Header	Square		Gold or Gold GXT™	8.08 mm
