60A Series

Catalog

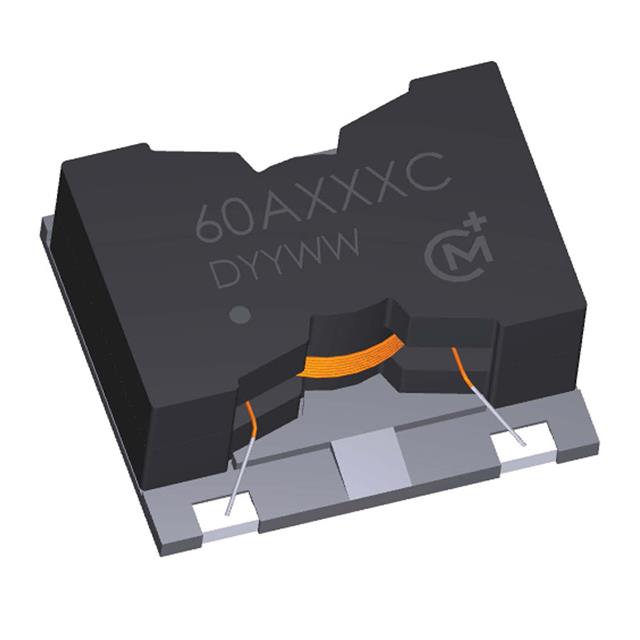

POWER INDUCTOR (SMD), 31.4 ΜH, 6.8 A, UNSHIELDED, 9.5 A, 6000A SERIES

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Inductance	Frequency - Self Resonant	Type	Current - Saturation (Isat)	Shielding	Mounting Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Electronics 60A313C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	31.4 µH	12 MHz	Wirewound	9.5 A	Unshielded	Surface Mount	18 mOhm	6.8 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A363C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	36 µH	11 MHz	Wirewound	8.8 A	Unshielded	Surface Mount	20 mOhm	6.4 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A583C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	57.8 µH	8 MHz	Wirewound	6.2 A	Unshielded	Surface Mount	36 mOhm	4.9 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A782C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	7.8 µH	26 MHz	Wirewound	19 A	Unshielded	Surface Mount	6 mOhm	13.5 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A103C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	10.2 µH	21 MHz	Wirewound	17 A	Unshielded	Surface Mount	7 mOhm	12 Amps	Nonstandard	0.472 in	12 mm
Murata Electronics 60A163C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	16 µH	17 MHz	Wirewound	13 A	Unshielded	Surface Mount	9 mOhm	9.6 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A233C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	23 µH	13 MHz	Wirewound	11 A	Unshielded	Surface Mount	12 mOhm	8.4 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A273C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	27 µH	13 MHz	Wirewound	10 A	Unshielded	Surface Mount	15 mOhm	7.5 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A582C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	5.8 µH	31 MHz	Wirewound	22 A	Unshielded	Surface Mount	5 mOhm	14.5 A	Nonstandard	0.472 in	12 mm
Murata Electronics 60A413C	19 mm	0.748 in	22 mm	0.866 "	10 %	85 °C	-40 C	100 kHz	41 µH	10 MHz	Wirewound	8.4 A	Unshielded	Surface Mount	26 mOhm	5.6 A	Nonstandard	0.472 in	12 mm
