BD9B300MUV Series

2.7V to 5.5V Input, 3.0A Integrated MOSFET Buck DC/DC Converter

Catalog

2.7V to 5.5V Input, 3.0A Integrated MOSFET Buck DC/DC Converter

Part	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Utilized IC / Part	Main Purpose	Current - Output	Voltage - Output	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Output Configuration	Number of Outputs	Mounting Type	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Function	Synchronous Rectifier	Voltage - Input (Min) [Min]	Output Type	Voltage - Output (Max) [Max]	Supplier Device Package	Frequency - Switching	Package / Case

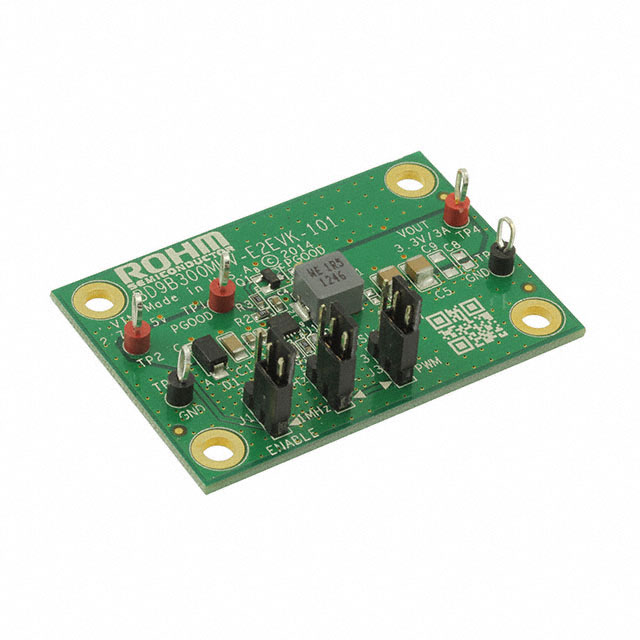

Rohm Semiconductor BD9B300MUV-EVK-101	Board(s)	Fully Populated	Non-Isolated	1	2.7 V	5.5 V	Buck	BD9B300	DC/DC Step Down	3 A	3.3 V
Rohm Semiconductor BD9B300MUV-E2										3 A		5.5 V	0.8 V	Positive	1	Surface Mount	Buck	85 °C	-40 °C	Step-Down		2.7 V	Adjustable	4.4 V	VQFN016V3030	1 MHz 2 MHz	16-VFQFN Exposed Pad

Catalog

2.7V to 5.5V Input, 3.0A Integrated MOSFET Buck DC/DC Converter

Key Features

• Synchronous Single DC/DC Converter, Constant on-time control suitable to Deep-SLLM, Over Current Protection, Short Circuit Protection, Thermal Shutdown Protection, Under Voltage Lockout Protection, Adjustable Soft Start, Power Good Output, VQFN016V3030 Package (backside heat dissipation)

Description

BD9B300MUV is a synchronous buck switching regulator with built-in low on-resistance power MOSFETs. This IC, which is capable of providing current up to 3A, features fast transient response by employing constant on-time control system. It offers high oscillating frequency at low inductance. With its original constant on-time control method which operates low consumption at light load, this product is ideal for equipment and devices that demand minimal standby power consumption.
