SCP7TT78 Series

Catalog

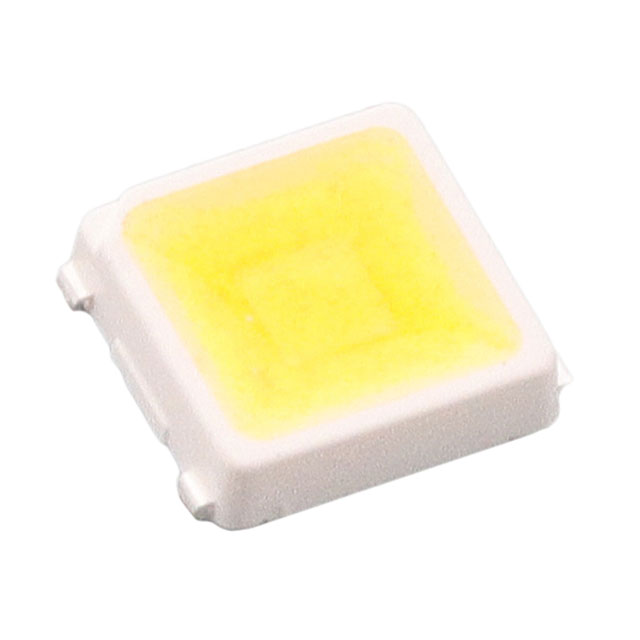

LED LM101B NEUT WHT 4000K SMD

Part	Thermal Resistance of Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Supplier Device Package	Package / Case	Viewing Angle	Current - Test	CCT (K)	CCT (K)	Current - Max [Max]	CRI (Color Rendering Index)	Color	Flux @ 25°C, Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Size / Dimension [y]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Samsung Semiconductor, Inc. SCP7TT78HEL1TUS06E	2 °C/W	0.067 in	0.067 in	1.7 mm	1.7 mm	Surface Mount	0.018 "	0.45 mm	203 lm/W	SMD	0606 (1616 Metric)	120 °	65 mA	4000 K	3-Step MacAdam Ellipse	350 mA	70	Neutral White	37 lm	2.8 V
Samsung Semiconductor, Inc. SCP7TT78HPL1TUS06E	2 °C/W	0.045 "	0.045 in	1.15 mm		Surface Mount	0.018 "	0.45 mm	149 lm/W	SMD	0505	150 °	150 mA	4000 K		450 mA	70	Neutral White		2.9 V	1313	1.15 mm	71 lm	59 lm
Samsung Semiconductor, Inc. SCP7TT78HEL1TLS06E	2 °C/W	0.067 in	0.067 in	1.7 mm	1.7 mm	Surface Mount	0.018 "	0.45 mm	203 lm/W	SMD	0606 (1616 Metric)	120 °	65 mA	4000 K		350 mA	70	Neutral White	37 lm	2.8 V
