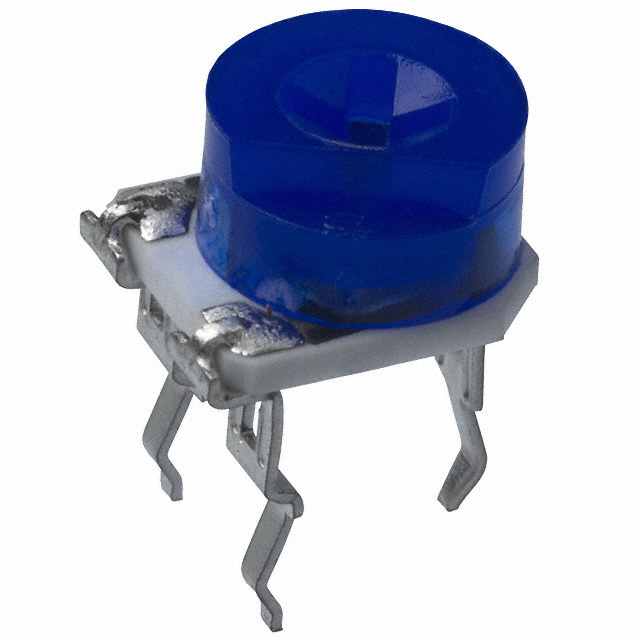

3306F Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER, SINGLE TURN, CERMET, TOP ADJUST, 200 KOHM, THROUGH HOLE, 1 TURNS
| Part | Number of Turns | Tolerance | Power (Watts) | Power (Watts) | Mounting Type | Temperature Coefficient | Resistive Material | Adjustment Type | Resistance | Termination Style | Size / Dimension [y] | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 200000 Ohms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
 Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 0.5 kOhms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 200 Ohms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 5 kOhms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
 Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 100 Ohms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 25 kOhms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 1000 Ohms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 2 kOhms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 50000 Ohms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
Bourns Inc. | 1 | 25 % | 0.2 W | 0.2 W | Through Hole | 250 ppm/°C | Cermet | Top Adjustment | 20 kOhms | PC Pins | 6.8 mm | Rectangular | 0.268 " | 0.319 in | 8.1 mm |
