2301995 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN JACK 1PORT 100 BASE-T PCB
| Part | Mounting Type | Shielding | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Applications | LED Color | Contact Material | Number of Ports | Height Above Board | Height Above Board | Tab Direction | Connector Type | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Number of Rows | Housing Material | Number of Cores per Jack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

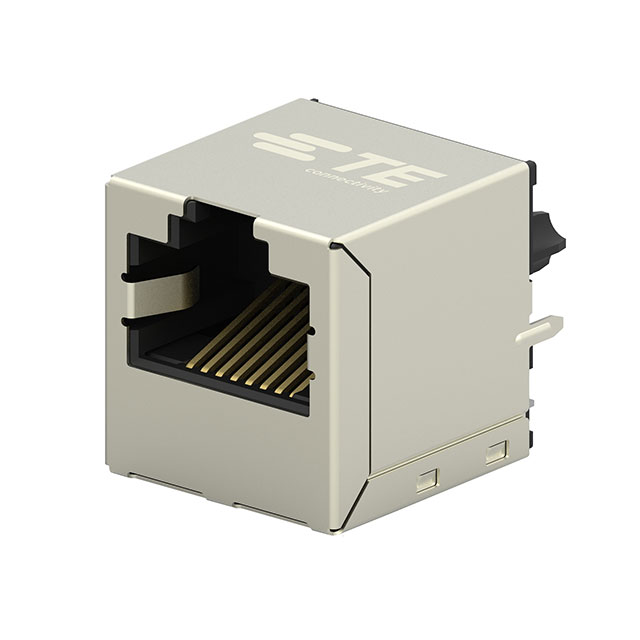

 TE Connectivity Raychem Cable Protection | Through Hole | Shielded | 0.76 Ám | 30 Áin | Gold | Solder | 10/100 Base-T AutoMDIX | Does Not Contain LED | Copper Alloy | 1 | 0.665 in | 16.9 mm | Up | RJ45 | Vertical | 85 °C | -40 °C | Brass | 1 | Liquid Crystal Polymer (LCP) | |

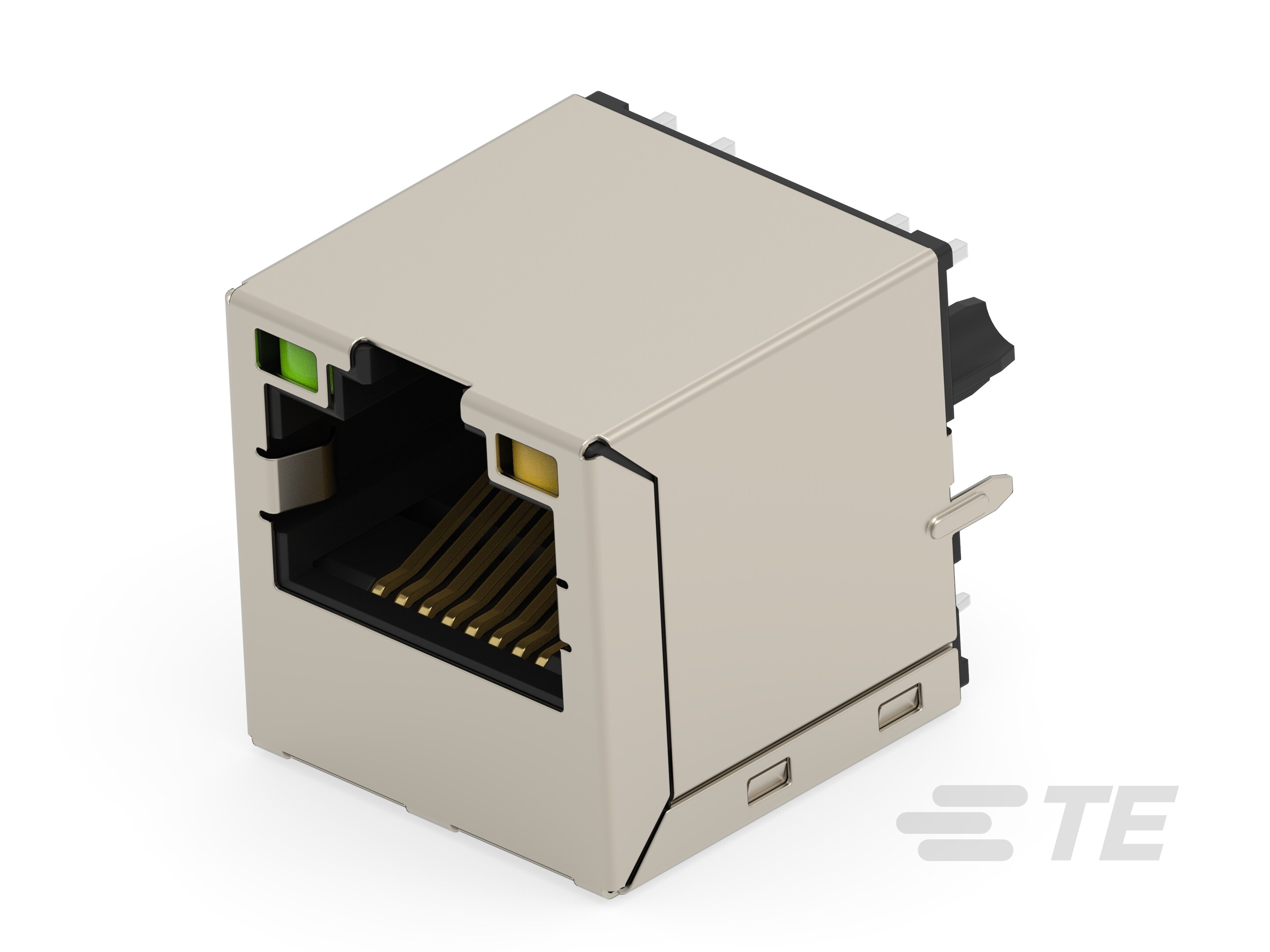

 TE Connectivity Raychem Cable Protection | Through Hole | Shielded | 0.76 Ám | 30 Áin | Gold | Solder | 10/100/1000 Base-T AutoMDIX | Green Yellow | Copper Alloy | 1 | 0.665 in | 16.9 mm | Up | RJ45 | Vertical | 85 °C | -40 °C | Brass | 1 | Liquid Crystal Polymer (LCP) | 8 |
