SS26 Series

Catalog

DIODE SCHOTTKY 60V 2A DO214AC

Part	Capacitance @ Vr, F	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Grade	Mounting Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Qualification	Package / Case	Speed
Micro Commercial Components SS26HE3-LTP	90 pF	Schottky	60 V	700 mV	150 °C	-55 °C	DO-214AC (SMA)	Automotive	Surface Mount	100 µA	2 A	AEC-Q101	DO-214AC SMA	200 mA 500 ns

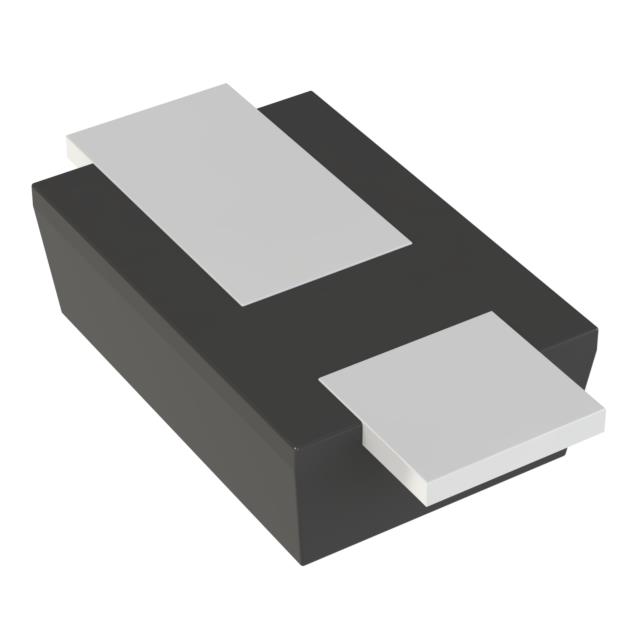

Micro Commercial Components SS26HE-TP		Schottky	60 V	700 mV	150 °C	-55 °C	SOD-123HE		Surface Mount	500 µA	2 A		SOD-123H	200 mA 500 ns
