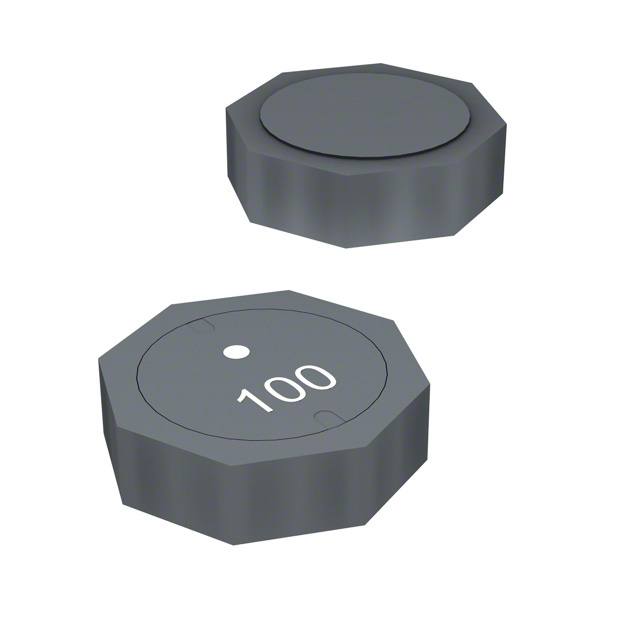

SRU1028 Series

Catalog

POWER INDUCTOR (SMD), 8.2 µH, 3.3 A, SHIELDED, 2.7 A, SRU1028 SERIES

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	DC Resistance (DCR)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Q @ Freq	Inductance Frequency - Test	Tolerance	Package / Case	Material - Core	Mounting Type	Inductance	Type	Current - Saturation (Isat)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. SRU1028-8R2Y	0.394 in	0.394 in	10 mm	10 mm	Shielded	28 mOhm	3.3 A	125 °C	-40 C	28 MHz	7.96 MHz 12	100 kHz	30 %	Nonstandard	Ferrite	Surface Mount	8.2 µH	Drum Core Wirewound	2.7 A	0.122 in	3.1 mm
Bourns Inc. SRU1028-150Y	0.394 in	0.394 in	10 mm	10 mm	Shielded	69 mOhm	2 A	125 °C	-40 C	22 MHz	2.52 MHz 26	100 kHz	30 %	Nonstandard	Ferrite	Surface Mount	15 µH	Drum Core Wirewound	2 A	0.122 in	3.1 mm
Bourns Inc. SRU1028-121Y	0.394 in	0.394 in	10 mm	10 mm	Shielded	428 mOhm	700 mA	125 °C	-40 C	6 MHz	18 796 kHz	100 kHz	30 %	Nonstandard	Ferrite	Surface Mount		Drum Core Wirewound	700 mA	0.122 in	3.1 mm
Bourns Inc. SRU1028-470Y	0.394 in	0.394 in	10 mm	10 mm	Shielded	167 mOhm	1.3 A	125 °C	-40 C	11 MHz	2.52 MHz 20	100 kHz	30 %	Nonstandard	Ferrite	Surface Mount	47 µH	Drum Core Wirewound	1.1 A	0.122 in	3.1 mm
Bourns Inc. SRU1028-680Y	0.394 in	0.394 in	10 mm	10 mm	Shielded	232 mOhm	1 A	125 °C	-40 C	9 MHz	2.52 MHz 20	100 kHz	30 %	Nonstandard	Ferrite	Surface Mount	68 µH	Drum Core Wirewound	900 mA	0.122 in	3.1 mm
