EFB1524 Series

Catalog

FAN AXIAL 172X50.8MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Bearing Type	RPM	Power (Watts)	Voltage - Rated	Features	Noise	Weight	Weight	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Termination	Fan Type	Width [y]	Ingress Protection
Delta Electronics EFB1524SHG-F00	Aluminum	Plastic	1.17 A	28 V	12 VDC	80000 Hrs	Rectangular/Rounded	150 mm	172 mm	269.8 Pa	1.083 in H2O	Ball	4300 RPM	28.08 W	24 VDC	Locked Rotor Protection Speed Sensor (Tach)	63 dB	861.8 g	1.9 lbs	CE CSA UL VDE	70 °C	-10 °C	9.1 m³/min	325 CFM	3 Wire Leads	Tubeaxial	50.8 mm
Delta Electronics EFB1524VHG-EP	Aluminum	Plastic	1.02 A			80000 Hrs	Rectangular/Rounded	150 mm	172 mm	233.4 Pa	0.937 in H2O	Ball	4000 RPM	24.48 W	24 VDC	GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach)	60 dB(A)	861.8 g	1.9 lbs	CE CSA UL VDE	70 °C	-10 °C	8.46 m³/min	302.3 CFM	4 Wire Leads	Tubeaxial	50.8 mm	IP56 - Dust Protected Water Resistant

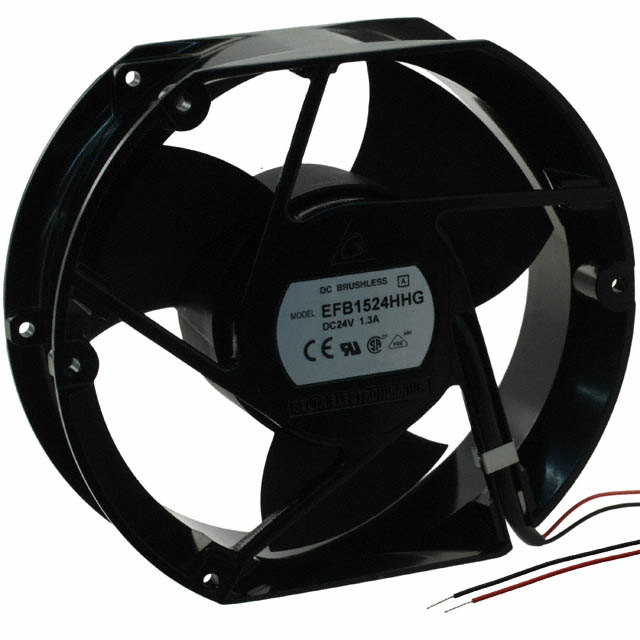

Delta Electronics EFB1524HHG	Aluminum	Plastic	770 mA	28 V	12 VDC	80000 Hrs	Rectangular/Rounded	150 mm	172 mm			Ball	3700 RPM	18.48 W	24 VDC		57.5 dB	861.8 g	1.9 lbs	CE CSA UL VDE	70 °C	-10 °C	7.83 m³/min	279.7 CFM	2 Wire Leads	Tubeaxial	50.8 mm

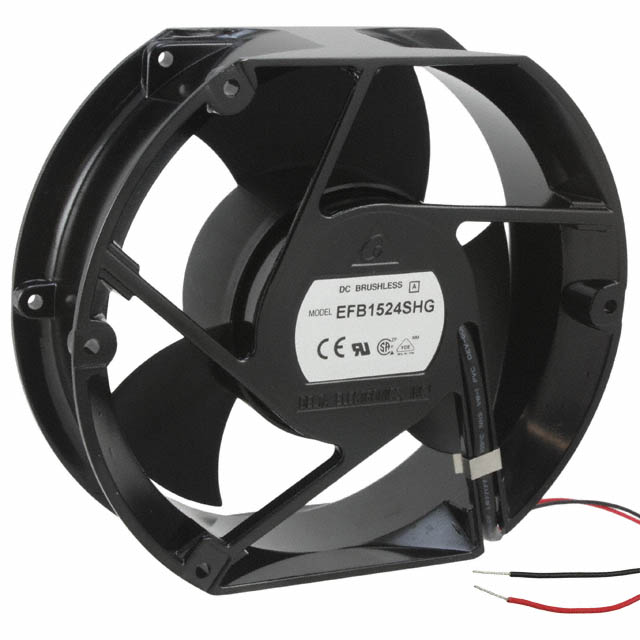

Delta Electronics EFB1524SHG	Aluminum	Plastic	1.17 A	28 V	12 VDC	80000 Hrs	Rectangular/Rounded	150 mm	172 mm	269.8 Pa	1.083 in H2O	Ball	4300 RPM	28.08 W	24 VDC		63 dB	861.8 g	1.9 lbs	CE CSA UL VDE	70 °C	-10 °C	9.1 m³/min	325 CFM	2 Wire Leads	Tubeaxial	50.8 mm
Delta Electronics EFB1524VHG-R00
