RJ11 Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

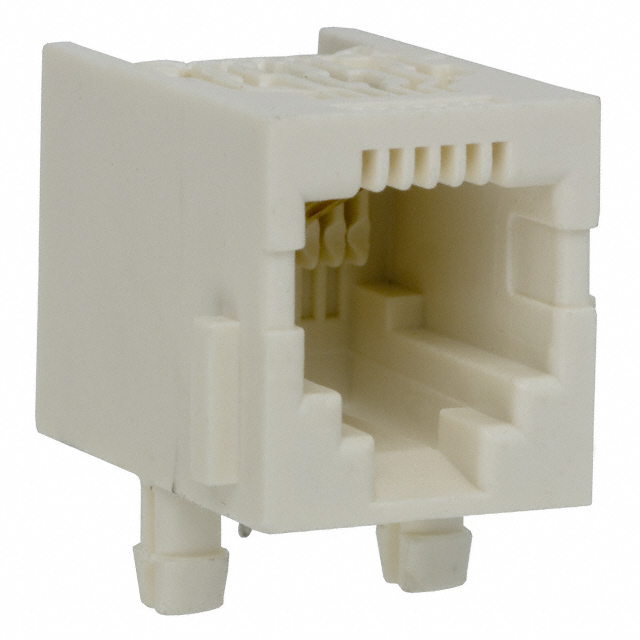

CONN MOD JACK 6P6C R/A SHIELDED
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows | Termination | Contact Material | Connector Type | Shielding | LED Color | Features | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Orientation | Mounting Type | Number of Ports | Tab Direction | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | Shielded | Does Not Contain LED | Board Lock Filter Panel Stops | 6 | 6 | 90 ° | Through Hole | 1 | Down | ||
TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | EMI Finger Shielded | Does Not Contain LED | Board Lock Filter | 6 | 6 | 90 ° | Through Hole | 1 | Down | ||
 TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | Unshielded | Does Not Contain LED | Board Lock Filter Panel Stops | 90 ° | Through Hole | 1 | Down | 6 | 2 | ||
TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | EMI Finger Shielded | Does Not Contain LED | Board Lock Filter | 6 | 6 | 90 ° | Through Hole | 1 | Down | ||
TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | Shielded | Does Not Contain LED | Board Lock Filter Panel Stops | 6 | 6 | 90 ° | Through Hole | 1 | Down | ||
TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | EMI Finger Shielded | Does Not Contain LED | Board Lock Filter | 4 | 6 | 90 ° | Through Hole | 1 | Down | ||
TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | EMI Finger Shielded | Does Not Contain LED | Board Lock Filter | 6 | 6 | 90 ° | Through Hole | 1 | Down | ||
TE Connectivity Corcom Filters | Polyester Glass Filled | 50 µin | 1.27 µm | Gold | 1 | Solder | Phosphor Bronze | Jack | Unshielded | Does Not Contain LED | Board Guide Panel Stops | 6 | 6 | 90 ° | Through Hole | 1 | Down |
