51-131 Series
Manufacturer: EAO
Beta
⌘K

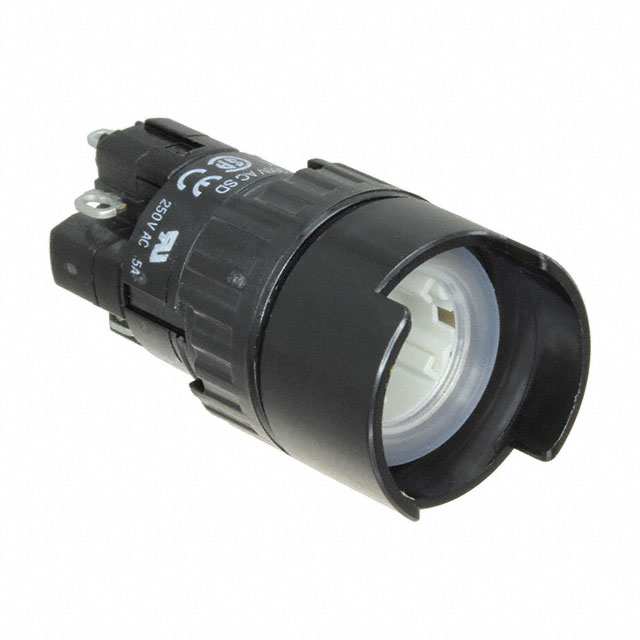

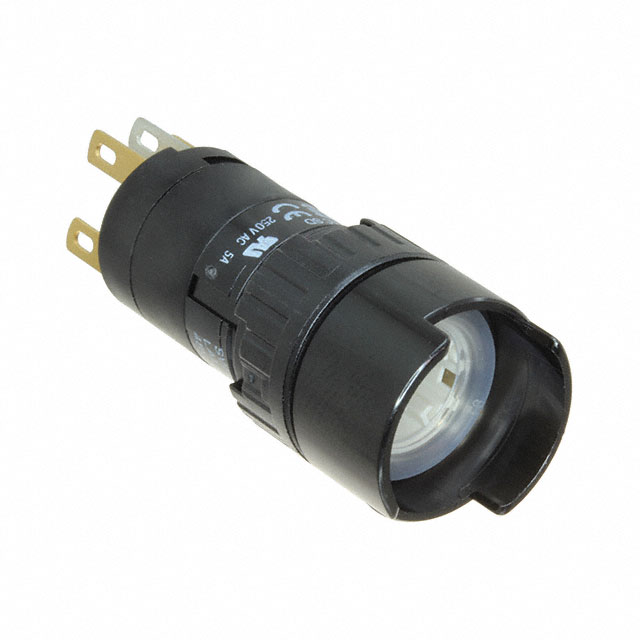

PUSHBUTTON SWITCH, 51 SERIES, 16.2 MM, SPST-NO, SPST-NC, MOMENTARY, ROUND
| Part | Mechanical Life | Actuator Marking | Type | Circuit | Switch Function | Actuator Type | Ingress Protection | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 2000000 Cycles | No Marking | Standard | DPST-NO/NC | Off-Mom On-Mom | Button Round | IP65 - Dust Tight Water Resistant | 250 V | 16 mm | 55 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | 5 A |
 EAO | 2000000 Cycles | No Marking | Standard | DPST-NO/NC | Off-Mom On-Mom | Button Round | IP65 - Dust Tight Water Resistant | 250 V | 16 mm | 55 °C | -25 °C | Solder Lug | Panel Mount Front | 5 A |
