5168C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

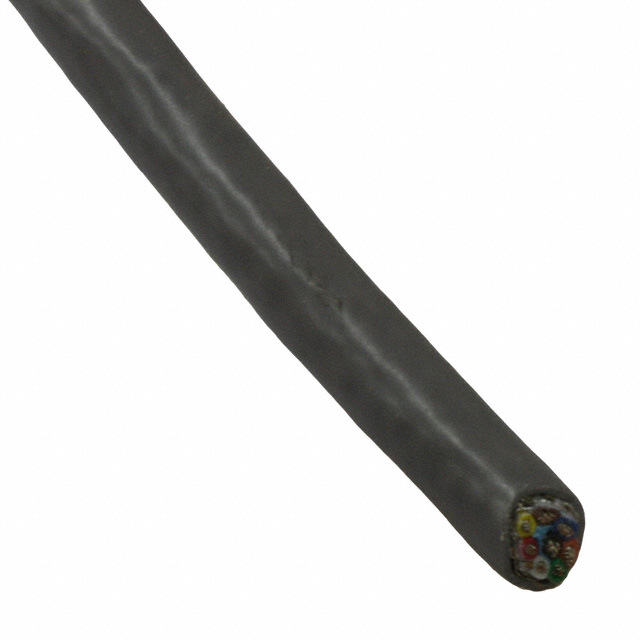

MULTICONDUCTOR CABLE, XTRA GUARD® 1, SHIELDED, 8 CONDUCTOR, 18 AWG, 0.81 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Jacket Color | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Insulation | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Ratings | Features | Voltage | Cable Type | Wire Gauge | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | 152.4 m | 500 ft | 9.14 mm | 0.36 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Braid Foil | -35 °C | 105 ░C | 0.813 mm | 0.032 in | 8 | 16 | 30 AWG | Communication Control | ISO 10993 | Biological Compatibility Drain Wire Rip Cord | 300 VDC | Multi-Conductor | 18 AWG | Copper Tinned |
