CM1409 Series

6- and 8-Channel LCD and Camera EMI Filters with ESD Protection

Catalog

6- and 8-Channel LCD and Camera EMI Filters with ESD Protection

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Technology	Resistance - Channel (Ohms)	Operating Temperature [Max]	Operating Temperature [Min]	Height [z]	Height [z]	ESD Protection	Type	Mounting Type	Center / Cutoff Frequency	Package / Case	Filter Order	Attenuation Value	Number of Channels [custom]	Values

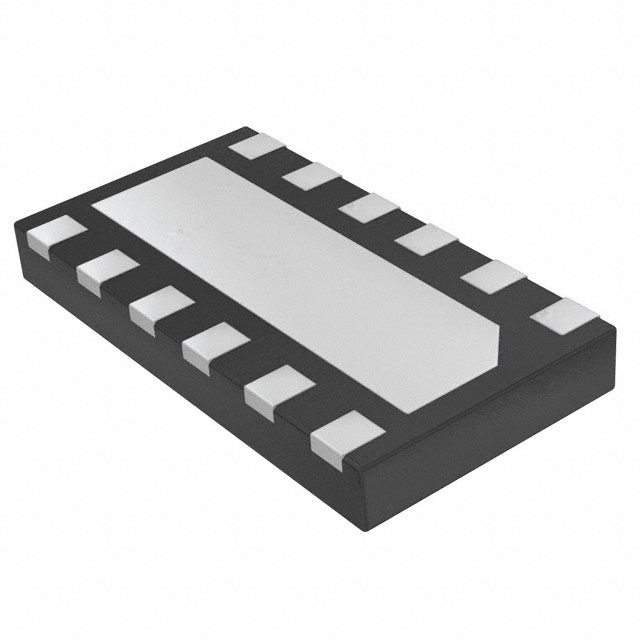

ON Semiconductor CM1409-06DE	0.053 in	0.118 in	3 mm	1.35 mm	Data Lines for Mobile Devices	RC (Pi)	100 Ohms	85 °C	-40 °C	0.031 "	0.79 mm		Low Pass	Surface Mount	110 MHz	12-WFDFN Exposed Pad	2nd	30 dB	6	15 pF 100 Ohms

Catalog

6- and 8-Channel LCD and Camera EMI Filters with ESD Protection

Key Features

• Six or eight channels of EMI suppression with integrated ESD protection

• Excellent broadband attenuation of radiated noise from datalines across all wireless carrier bands

• ±15kV ESD protection (IEC 61000-4-2, contact discharge)

Description

The CM1409 is a family of pi-style EMI filter arrays with ESD protection, which integrates either six or eight filters (C-R-C) in a small form factor, TDFN 0.50 mm pitch package. The CM1409 has component values of 15pF-100 Ω-15pF per channel. The CM1409 has a cut-off frequency of 110 MHz and can be used in applications with data rates up to 44 Mbps. The parts include ESD diodes on every pin, which provide a very high level of protection for sensitive electronic components against electrostatic discharge (ESD). The ESD protected diodes safely dissipate ESD strikes of ±15 kV, which even exceeds the maximum requirement of the IEC61000-4-2 international standard. Using the MIL-STD-883 (Method 3015) specification for Human Body Model (HBM) ESD, the pins are protected for contact discharges at greater than ±30 kV.
