CPC1966YX6 Series

1-FORM-A OPTO SCR 600V ZERO CROSS 6L SMD

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

1-FORM-A OPTO SCR 600V ZERO CROSS 6L SMD

Part	Circuit	Voltage - Load [Max]	Voltage - Load [Min]	Approval Agency	Voltage - Input	Load Current	Output Type	Mounting Type	Termination Style	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case

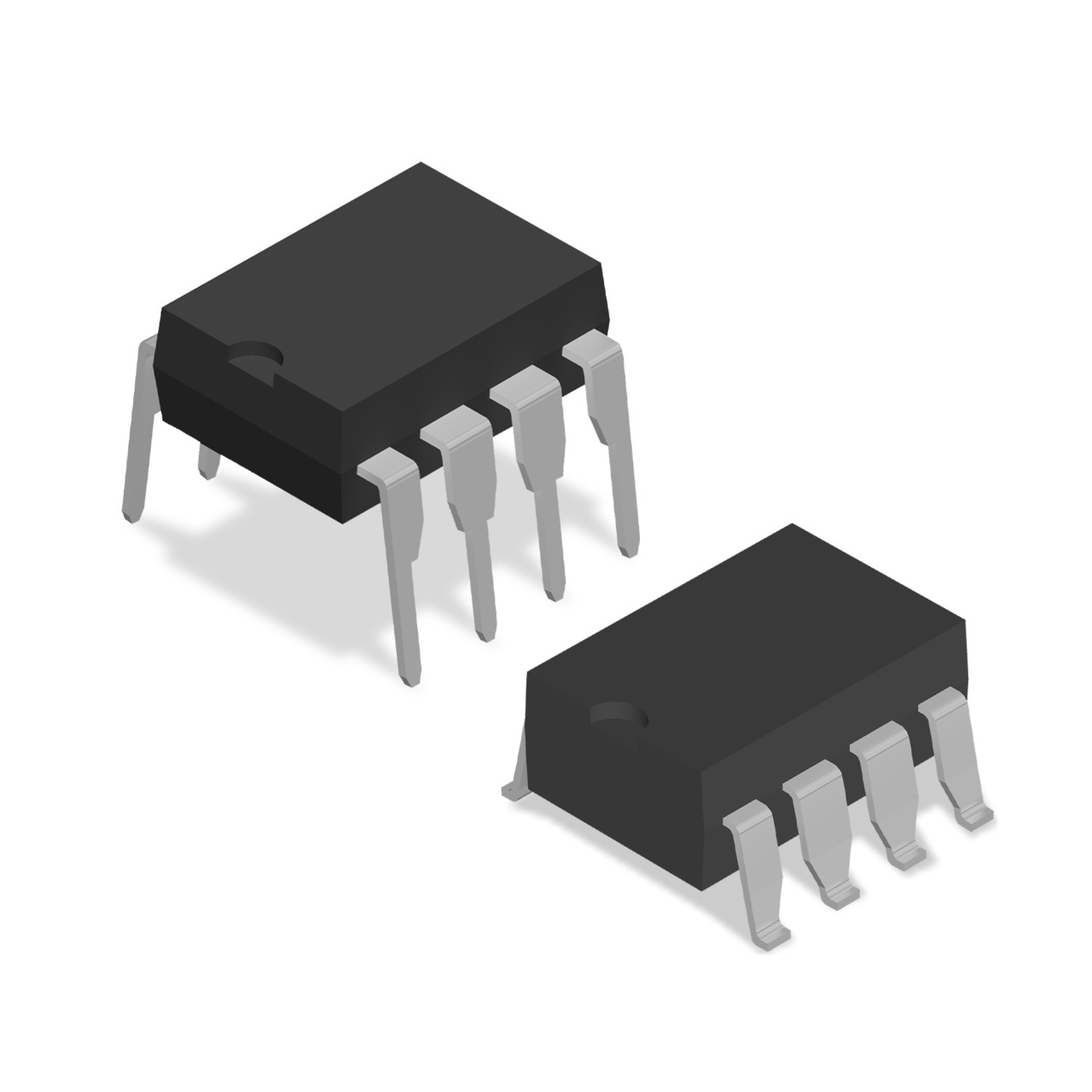

Littelfuse/Commercial Vehicle Products CPC1961GS	SPST-NO (1 Form A) x 2	600 V	0 V	CSA UL	1.2 VDC	250 mA	AC Zero Cross	Surface Mount	Gull Wing	7.62 mm	0.3 in	8-SMD	85 °C	-40 °C	8-SMD

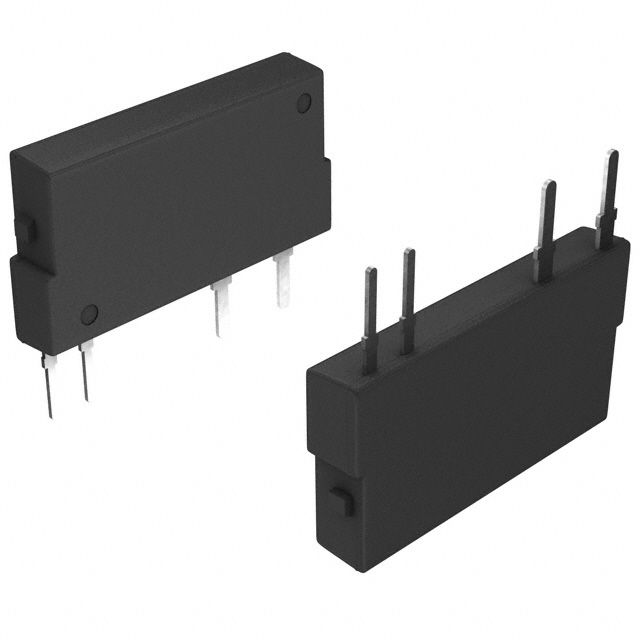

Littelfuse/Commercial Vehicle Products CPC1966YX6		600 V	0 V	CSA UL	1.2 VDC	3 A	AC	Through Hole	PC Pin			8-SIP 4 Leads	85 °C	-40 °C	4-SIP
Littelfuse/Commercial Vehicle Products CPC1961GSTR	SPST-NO (1 Form A) x 2	600 V	0 V	CSA UL	1.2 VDC	250 mA	AC Zero Cross	Surface Mount	Gull Wing	7.62 mm	0.3 in	8-SMD	85 °C	-40 °C	8-SMD

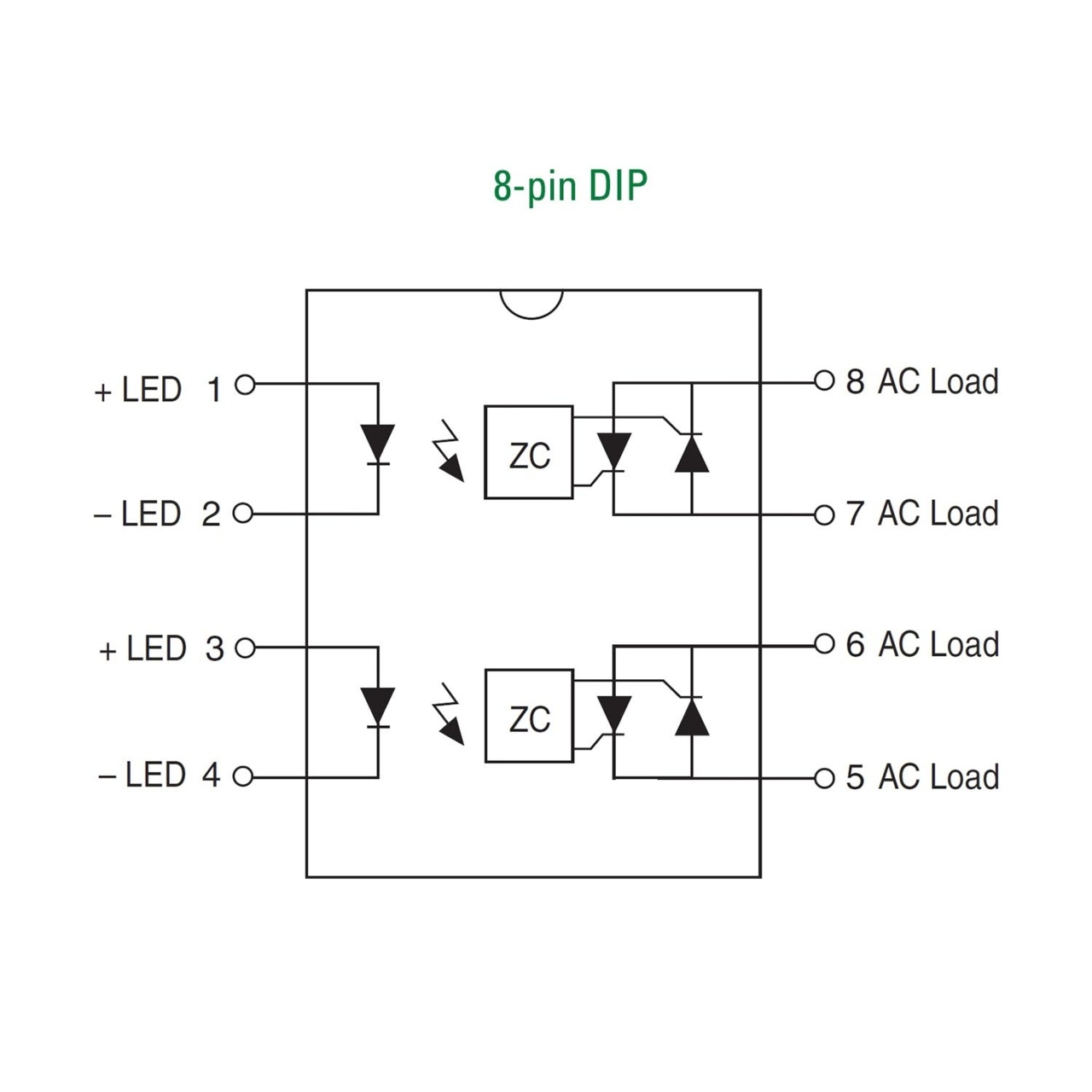

Littelfuse/Commercial Vehicle Products CPC1961G	SPST-NO (1 Form A) x 2	600 V	0 V	CSA UL	1.2 VDC	250 mA	AC Zero Cross	Through Hole	PC Pin	7.62 mm	0.3 in	8-DIP	85 °C	-40 °C	8-DIP

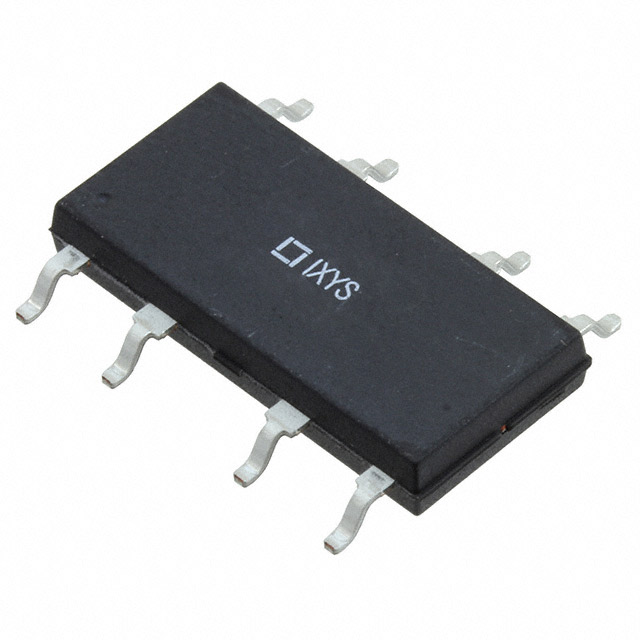

Littelfuse/Commercial Vehicle Products CPC1966B		240 V	20 V	CSA UL	1.2 VDC	3 A	AC Zero Cross	Surface Mount	Gull Wing			8-SOP	85 °C	-40 °C	8-SOIC	10.16 mm	0.4 in
Littelfuse/Commercial Vehicle Products CPC1963G		600 V	0 V	CSA UL	1.2 VDC	500 mA	AC Zero Cross	Through Hole	PC Pin		7.62 mm	6-DIP	85 °C	-40 °C	6-DIP			0.3 in
Littelfuse/Commercial Vehicle Products CPC1964B		800 V	0 V	CSA UL	1.2 VDC	1.5 A	AC Zero Cross	Surface Mount	Gull Wing			8-SOP	85 °C	-40 °C	8-SOIC	10.16 mm	0.4 in

Catalog

1-FORM-A OPTO SCR 600V ZERO CROSS 6L SMD

Key Features

• Load Currents up to 5 A

• Voltage Controlled Devices Available

• Blocking Voltage from 400 V to 800 V

• 5 mA Drive Input Sensitivity

• Zero-Crossing Detection

• Dc control and ac output

• Optically Isolated I/O

• TTL and CMOS Compatible

• Low EMI and RFI Generation

• High Noise Immunity

Description

The OptoMOS® line of power products uses dual power SCR outputs to produce an alternative to optocoupler and Triac circuits. These switches provide a blocking voltage of up to 800V. In addition, tightly controlled zero-cross circuitry ensures switching of ac loads without the generation of transients. The input and output circuits are optically coupled to provide up to 5000Vrms of isolation and noise immunity between control and load circuits. Long life and environmental integrity make these power switches ideal for controlling a variety of ac circuits in industrial environments where electromagnetic interference would disrupt the operation of electromechanical relays.
