717-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Read Out	Mounting Type	Gender	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Color	Number of Positions [custom]	Number of Positions/Bay/Row	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Type
EDAC Inc. 717-084-541-201	2	Polyester Thermoplastic	2	Dual	Through Hole	Female	Non Specified - Dual Edge	-40 C	105 ░C	3.96 mm	0.156 in	Black	84	42	Copper Alloy	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever

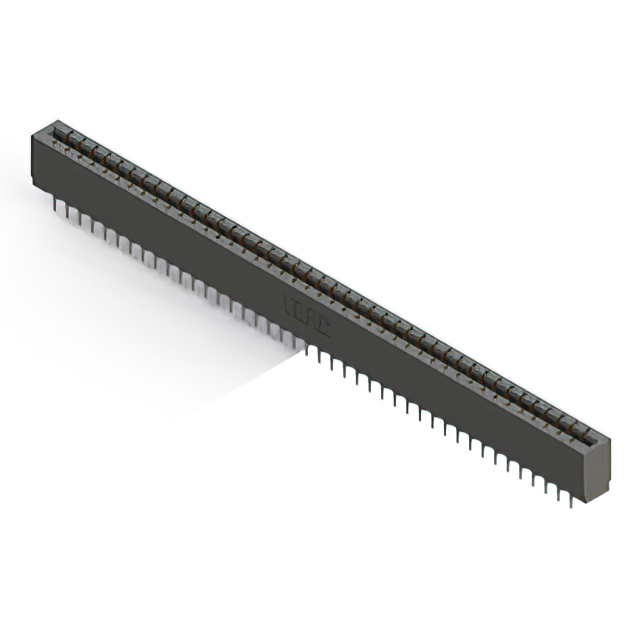

EDAC Inc. 717-084-560-201	2	Polyester Thermoplastic	2	Dual	Through Hole	Female	Non Specified - Dual Edge	-40 C	105 ░C	3.96 mm	0.156 in	Black	84	42	Copper Alloy	30 Áin	0.76 Ám	Gold	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever Make Before Break
EDAC Inc. 717-084-522-201	2	Polyester Thermoplastic	2	Dual	Through Hole	Female	Non Specified - Dual Edge	-40 C	105 ░C	3.96 mm	0.156 in	Black	84	42	Copper Alloy	30 Áin	0.76 Ám	Gold	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 717-084-520-201	2	Polyester Thermoplastic	2	Dual	Through Hole	Female	Non Specified - Dual Edge	-40 C	105 ░C	3.96 mm	0.156 in	Black	84	42	Copper Alloy	30 Áin	0.76 Ám	Gold	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 717-084-540-201	2	Polyester Thermoplastic	2	Dual	Through Hole	Female	Non Specified - Dual Edge	-40 C	105 ░C	3.96 mm	0.156 in	Black	84	42	Copper Alloy	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 717-084-525-201	2	Polyester Thermoplastic	2	Dual	Through Hole	Female	Non Specified - Dual Edge	-40 C	105 ░C	3.96 mm	0.156 in	Black	84	42	Copper Alloy	30 Áin	0.76 Ám	Gold	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
