L77SDEH09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

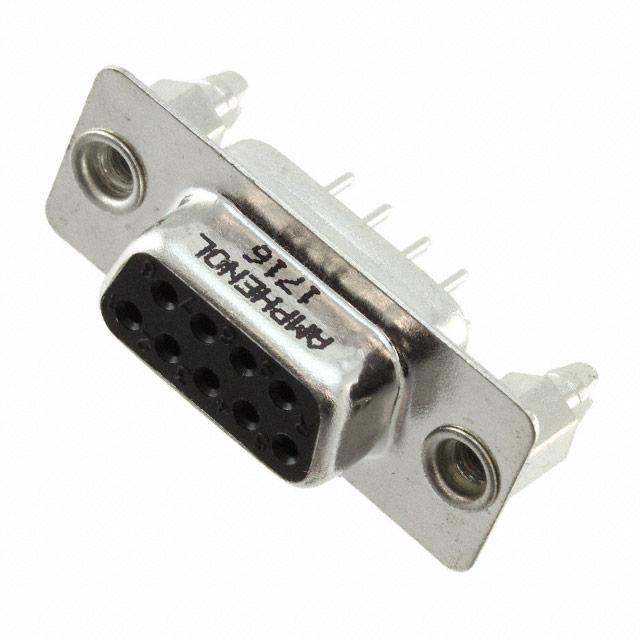

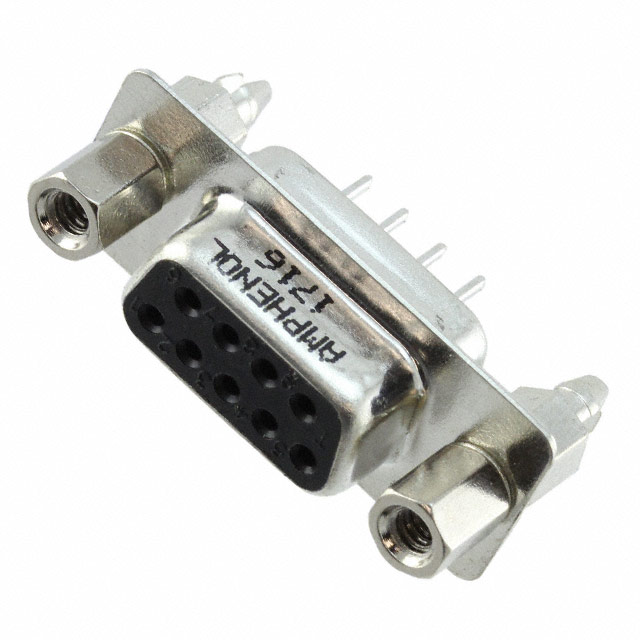

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Dielectric Material | Contact Material | Voltage Rating | Color | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Connector Style | Mounting Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Contact Type | Contact Finish | Termination | Current Rating (Amps) | Connector Type | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | Black | Stamped | -55 C | 125 °C | 2 | D-Sub | Through Hole | 9 | 30 Áin | 0.76 Ám | UL94 V-0 | Signal | Gold | Solder | 3 A | Receptacle Female Sockets | Board Lock | 1 | DE E | Board Side (4-40) Mating Side Female Screwlock (4-40) | |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | Black | Stamped | -55 C | 125 °C | 2 | D-Sub | Through Hole | 9 | UL94 V-0 | Signal | Gold | Solder | 3 A | Receptacle Female Sockets | Board Lock | 1 | DE E | Board Side (4-40) Mating Side Female Screwlock (4-40) | Flash | ||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | 250 V | Black | Stamped | -55 C | 125 °C | 2 | D-Sub | Through Hole | 9 | 30 Áin | 0.76 Ám | UL94 V-0 | Signal | Gold | Solder | 3 A | Receptacle Female Sockets | Board Lock | 1 | DE E | Board Side (4-40) |
