EKZE160E Series

Manufacturer: Chemi-Con

Catalog

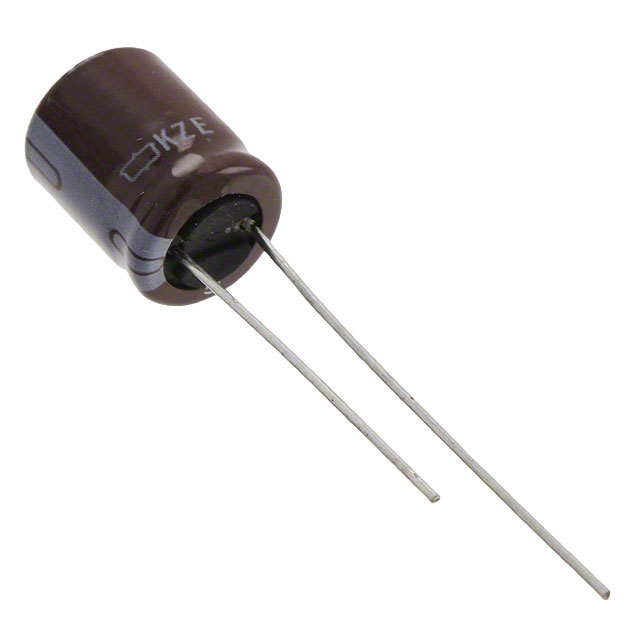

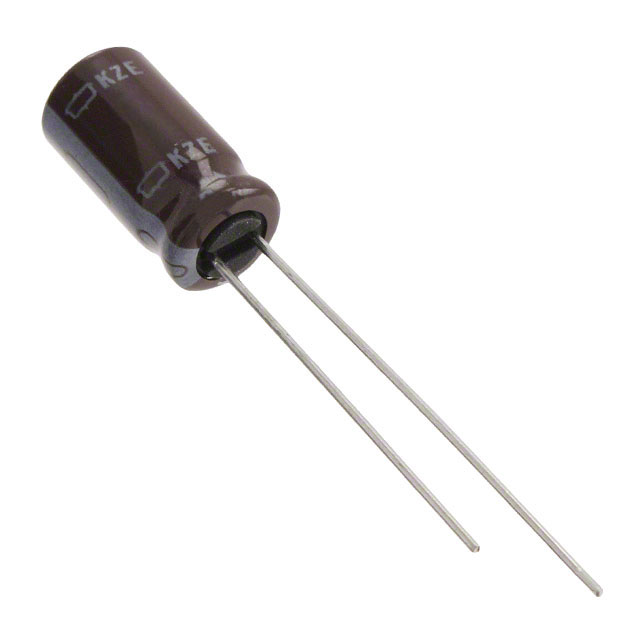

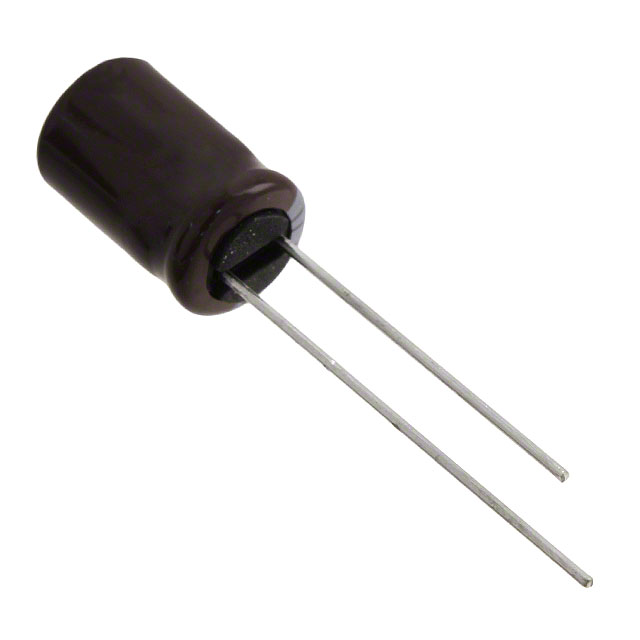

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 16VOLTS 680UF 10X16

Part	Tolerance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Polarization	Ripple Current @ Low Frequency	Impedance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lead Spacing	Lead Spacing	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKZE160ELL681MJ16S	20 %	Through Hole	0.394 in	10 mm	General Purpose	Polar	858 mA	38 mOhms	16 V	-40 C	105 ░C	4000 Hrs	17.5 mm	0.689 in	Can Radial	0.197 "	5 mm	680 µF	1.43 A
Chemi-Con EKZE160ELL331MHB5D	20 %	Through Hole	0.315 in	8 mm	General Purpose	Polar	380 mA	72 mOhms	16 V	-40 C	105 ░C	3000 Hrs		13 mm	Can Radial	0.138 in	3.5 mm	330 µF		0.512 "
Chemi-Con EKZE160ETD222MK25S	20 %	Through Hole	0.492 in	12.5 mm	General Purpose	Polar	2.0775 A	18 mOhms	16 V	-40 C	105 ░C	5000 Hrs		26.5 mm	Can Radial	0.197 "	5 mm	2200 µF	2.77 A	1.043 in
Chemi-Con EKZE160ELL680MF07D	20 %	Through Hole	0.248 "	6.3 mm	General Purpose	Polar	150 mA	240 mOhms	16 V	-40 C	105 ░C	2000 Hrs			Can Radial	0.098 in	2.5 mm	68 µF	300 mA		8 mm	0.315 in
Chemi-Con EKZE160ELL471MH15D	20 %	Through Hole	0.315 in	8 mm	General Purpose	Polar	120 Hz 497.5 mA	56 mOhms	16 V	-40 C	105 ░C	3000 Hrs		16.5 mm	Can Radial	0.138 in	3.5 mm	470 µF	995 mA	0.65 in
Chemi-Con EKZE160ELL332MK35S	20 %	Through Hole	0.492 in	12.5 mm	General Purpose	Polar	2.55 A	15 mOhms	16 V	-40 C	105 ░C	5000 Hrs		36.5 mm	Can Radial	0.197 "	5 mm	3.3 mF	3.4 A	1.437 "
Chemi-Con EKZE160ELL272MK30S	20 %	Through Hole	0.492 in	12.5 mm	General Purpose	Polar	2.4675 A	16 mOhms	16 V	-40 C	105 ░C	5000 Hrs			Can Radial	0.197 "	5 mm	2700 µF	3.29 A		31.5 mm	1.24 in
Chemi-Con EKZE160ETD102MJ20S	20 %	Through Hole	0.394 in	10 mm	General Purpose	Polar	1.092 A	23 mOhms	16 V	-40 C	105 ░C	4000 Hrs			Can Radial	0.197 "	5 mm	1000 µF	1.82 A		21.5 mm	0.846 "
Chemi-Con EKZE160EMC122MJ25S	20 %	Through Hole	0.394 in	10 mm	General Purpose	Polar	1.29 A	22 mOhms	16 V	-40 C	105 ░C	4000 Hrs		26.5 mm	Can Radial	0.197 "	5 mm	1.2 mF	2.15 A	1.043 in
Chemi-Con EKZE160ETC681MH20D	20 %	Through Hole	0.315 in	8 mm	General Purpose	Polar	750 mA	41 mOhms	16 V	-40 C	105 ░C	3000 Hrs			Can Radial	0.138 in	3.5 mm	680 µF	1.25 A		21.5 mm	0.846 "
