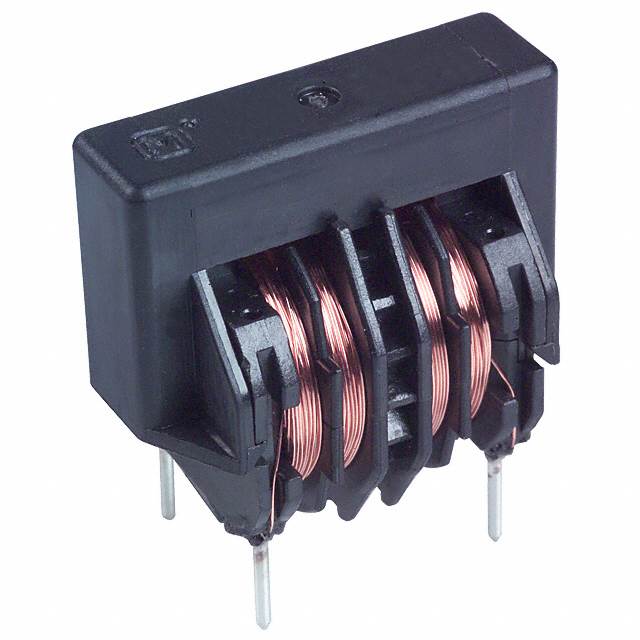

ELF-17 Series

Catalog

CMC 700MA 2LN TH

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Current Rating (Max) [Max]	Number of Lines	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)
Panasonic Industrial Automation Sales ELF-17N007A	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	700 mA	2	Through Hole	0.886 in	22.5 mm	762 mOhm
Panasonic Industrial Automation Sales ELF-17N003A	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	300 mA	2	Through Hole	0.886 in	22.5 mm	3.154 Ohm
Panasonic Industrial Automation Sales ELF-17N004A	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	400 mA	2	Through Hole	0.886 in	22.5 mm	1.966 Ohm
