TR9KG2400 Series

Catalog

AC/DC DESKTOP ADAPTER 15V 36W

Part	Form	Input Connector	Standard Number	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output	No Load Power Consumption	Approval Agency	Input Type	Efficiency	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector	Region Utilized	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Output Connector [diameter]	Output Connector [x]	Polarization

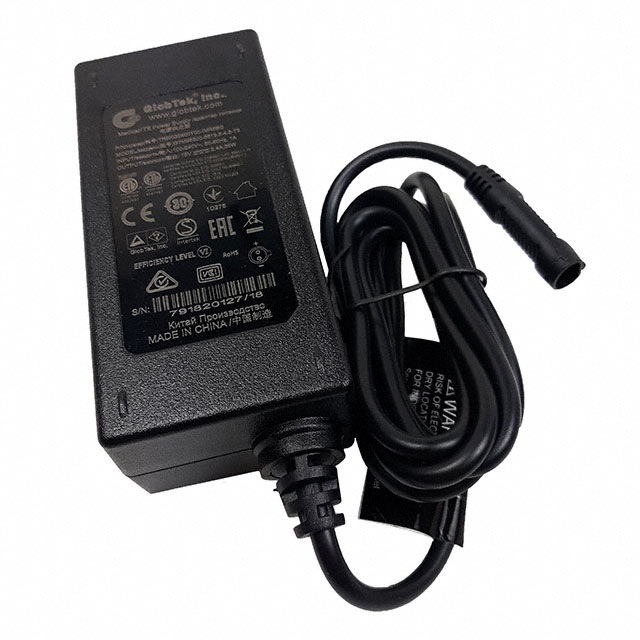

GlobTek, Inc. TR9KG2400T00-IMR6BG	Desktop (Class II)	IEC 320-C8	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	2.4 A	36 W	-20 ░C	40 °C	Household Appliances ITE (Commercial) Medical	15 V	75 mW	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	Cord (Sold Separately)	Level VI	1.5 m	59 in	264 VAC	90 VAC	Barrel Plug Kit (1.3mm x 3.5mm	International	1.97 in	50 mm	105 mm	35.5 mm	1.4 "	4.13 in

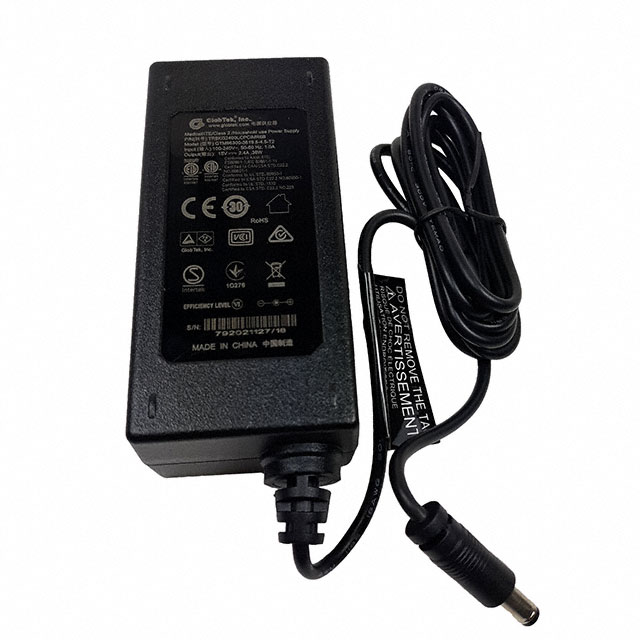

GlobTek, Inc. TR9KG2400LCPCIMR6B	Desktop (Class II)	IEC 320-C8	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	2.4 A	36 W	-20 ░C	40 °C	Household Appliances ITE (Commercial) Medical	15 V	75 mW	CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	Cord (Sold Separately)	Level VI	1.53 m	60.2 in	264 VAC	90 VAC	Barrel Plug	International	1.97 in	50 mm	105 mm	35.5 mm	1.4 "	4.13 in	2.5 mm 5.5 mm	11 mm	Positive Center
