333-060 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 60POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Positions/Bay/Row	Pitch	Pitch	Gender	Number of Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Card Type	Color	Contact Type	Contact Material	Flange Feature	Read Out	Termination	Features	Flange Feature [diameter]	Flange Feature [diameter]

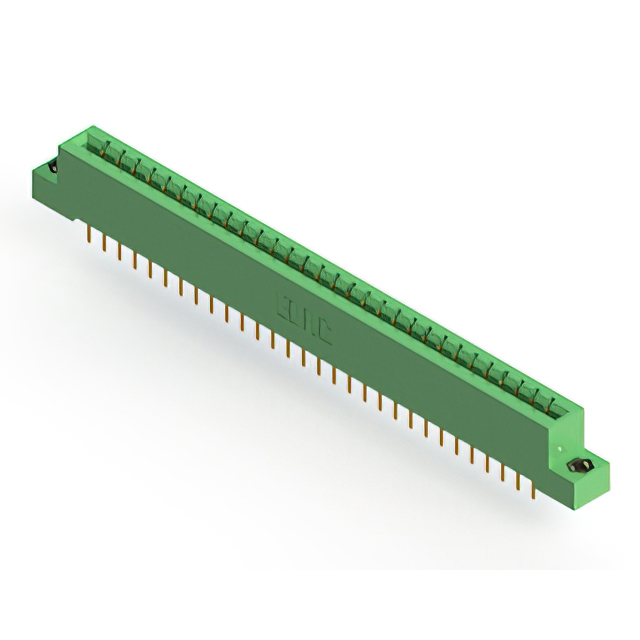

EDAC Inc. 333-060-520-208	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Through Hole	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Dual	Solder

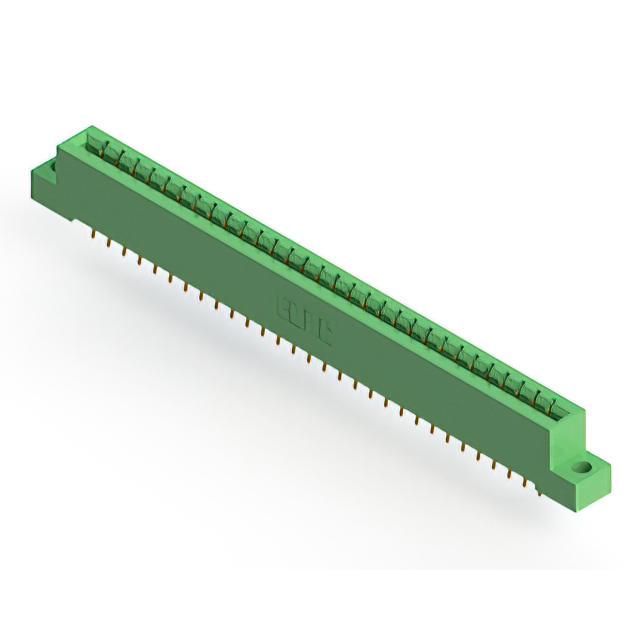

EDAC Inc. 333-060-556-204	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Board Edge Straddle Mount	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	Dual	Solder	Card Extender	0.156 "	3.96 mm

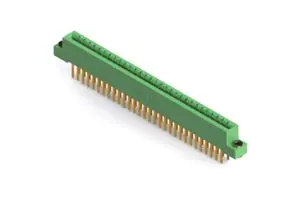

EDAC Inc. 333-060-544-203	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Through Hole	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	Floating Bobbin Flush Mount	Dual	Wire Wrap		0.116 "	2.95 mm
EDAC Inc. 333-060-541-203	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Through Hole	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	Floating Bobbin Flush Mount	Dual	Wire Wrap		0.116 "	2.95 mm

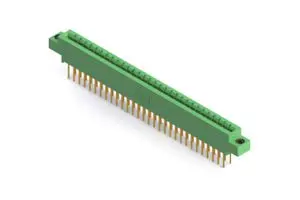

EDAC Inc. 333-060-540-807	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Through Hole	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	M3 Threaded Insert Top Mount Opening	Dual	Wire Wrap
EDAC Inc. 333-060-540-207	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Through Hole	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Dual	Wire Wrap

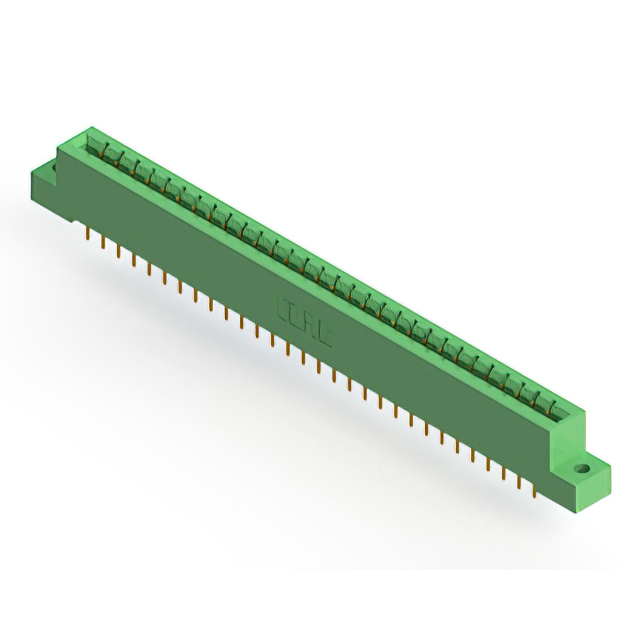

EDAC Inc. 333-060-521-202	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Through Hole	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	Dual	Solder		0.128 "	3.25 mm
EDAC Inc. 333-060-560-802	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Board Edge Straddle Mount	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy		Dual	Solder	Card Extender	0.128 "	3.25 mm
EDAC Inc. 333-060-542-207	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Through Hole	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Dual	Wire Wrap

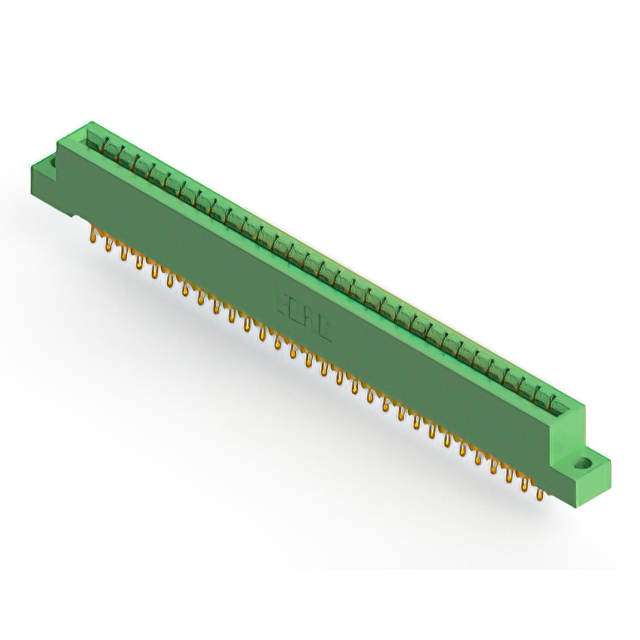

EDAC Inc. 333-060-555-204	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30	3.96 mm	0.156 in	Female	2	Board Edge Straddle Mount	-40 C	105 ░C	60	0.25 Ám	10 Áin	Non Specified - Dual Edge	Green	Cantilever	Copper Alloy	Flush Mount Top Opening Unthreaded	Dual	Solder Eyelet(s)	Card Extender	0.156 "	3.96 mm
